| Item | Part No. | Part Name | Qty | Serial No. |
| 6207-71-1960 | INJECTION PUMP ASS'Y | 27756- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0455 TO 0485. | ||||
| THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||

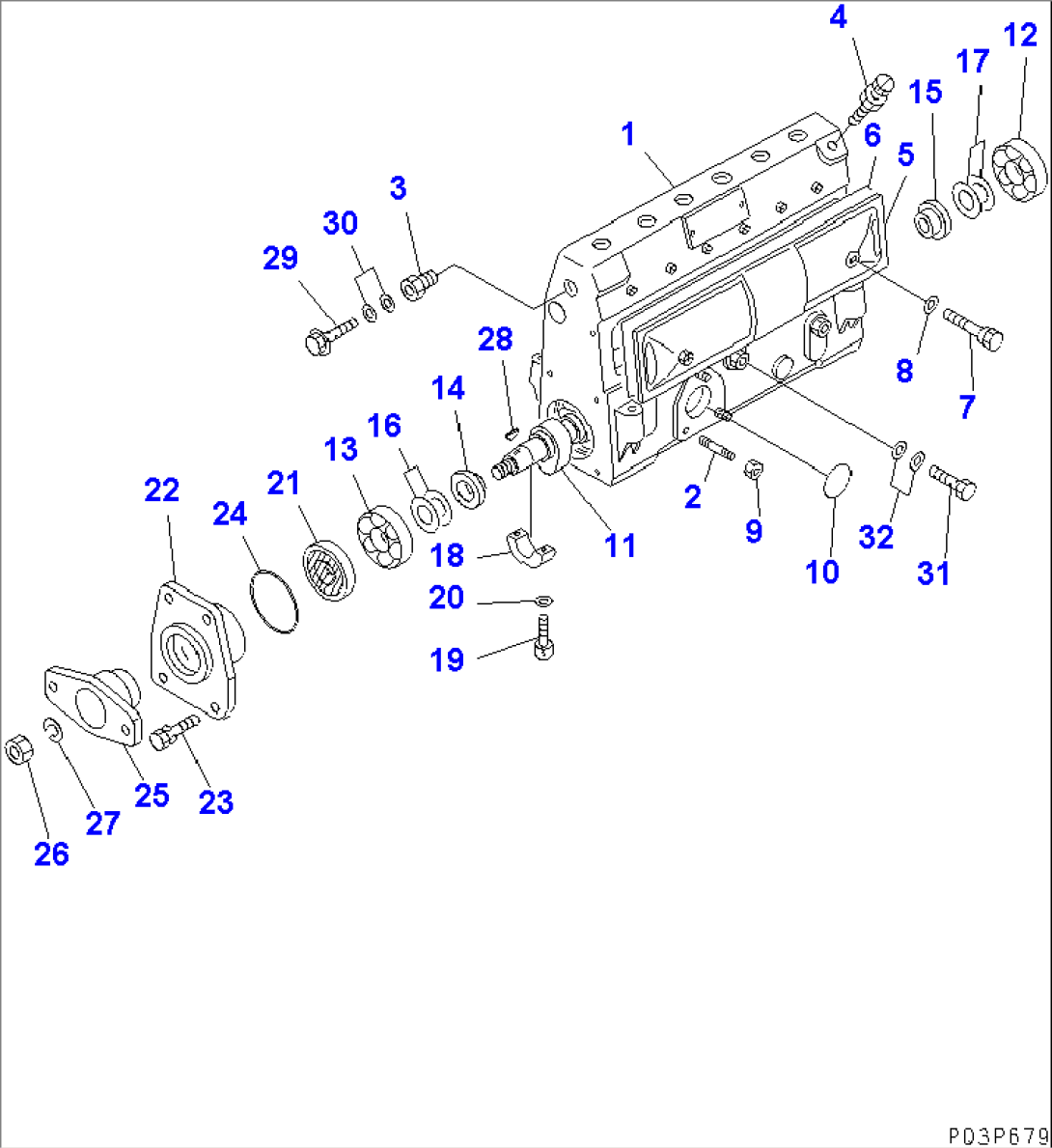

| DK101069-3890 | PUMP ASS'Y | 27756- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0455 AND 0456. | ||||
| 1 | DK131071-9220 | HOUSING | 27756- | |
| 2 | DK029040-6020 | STUD | 27756- | |
| 3 | DK131400-0100 | ADAPTER | 27756- | |
| 4 | DK131420-0420 | BOLT | 27756- | |
| 5 | DK131028-6020 | COVER | 27756- | |
| 6 | DK131011-0800 | GASKET | 27756- | |
| 7 | DK131017-1000 | SCREW | 27756- | |
| 8 | DK029340-6020 | GASKET | 27756- | |
| 9 | DK139206-0400 | NUT | 27756- | |
| 10 | DK029633-1010 | O-RING | 27756- | |
| 11 | DK131371-3700 | CAMSHAFT | 27756- | |
| 12 | DK016630-2030 | BEARING | 27756- | |
| 12 | DK028201-7020 | BEARING | 27756- | |
| 13 | DK016640-2030 | BEARING | 27756- | |
| 13 | DK028202-0020 | BEARING | 27756- | |
| 14 | DK131302-1300 | RING | 27756- | |
| 15 | DK131302-1700 | RING | 27756- | |
| 16 | DK029312-0310 | SHIM, 0.10MM | 27756- | |
| 16 | DK029312-0320 | SHIM, 0.12MM | 27756- | |
| 16 | DK029312-0330 | SHIM, 0.14MM | 27756- | |
| 16 | DK029312-0340 | SHIM, 0.16MM | 27756- | |
| 16 | DK029312-0350 | SHIM, 0.18MM | 27756- | |
| 16 | DK029312-0360 | SHIM, 0.3MM | 27756- | |
| 16 | DK029312-0370 | SHIM, 0.5MM | 27756- | |
| 16 | DK029312-0380 | SHIM, 1.0MM | 27756- | |
| 17 | DK029311-7010 | SHIM, 0.1MM | 27756- | |
| 17 | DK029311-7020 | SHIM, 0.12MM | 27756- | |
| 17 | DK029311-7030 | SHIM, 0.14MM | 27756- | |
| 17 | DK029311-7040 | SHIM, 0.16MM | 27756- | |
| 17 | DK029311-7050 | SHIM, 0.18MM | 27756- | |
| 17 | DK029311-7090 | SHIM, 0.3MM | 27756- | |
| 17 | DK029311-7060 | SHIM, 0.5MM | 27756- | |
| 17 | DK029311-7210 | SHIM, 0.7MM | 27756- | |
| 17 | DK029311-7070 | SHIM, 1.0MM | 27756- | |
| 17 | DK029311-7220 | SHIM, 1.4MM | 27756- | |
| 17 | DK139417-0000 | SHIM, 2.40MM | 27756- | |
| 18 | DK131306-1000 | BEARING,CENTER | 27756- | |
| 19 | DK029050-5010 | SCREW | 27756- | |
| 20 | DK026505-0940 | GASKET | 27756- | |
| 21 | DK029622-0190 | SEAL,OIL | 27756- | |
| 22 | DK131316-2000 | COVER | 27756- | |
| 23 | DK020006-1440 | BOLT | 27756- | |
| 24 | DK029635-0050 | O-RING | 27756- | |
| 25 | DK156636-7420 | COUPLING | 27756- | |
| 26 | DK131325-2600 | NUT | 27756- | |
| 27 | DK029321-4010 | WASHER,SPRING | 27756- | |
| 28 | DK029470-4030 | KEY | 27756- | |
| 29 | DK131401-0020 | BOLT,JOINT | 27756- | |
| 30 | DK029341-4130 | GASKET | 27756- | |
| 31 | DK029731-0120 | BOLT,JOINT | 27756- | |
| 32 | DK029341-0110 | GASKET | 27756- |
