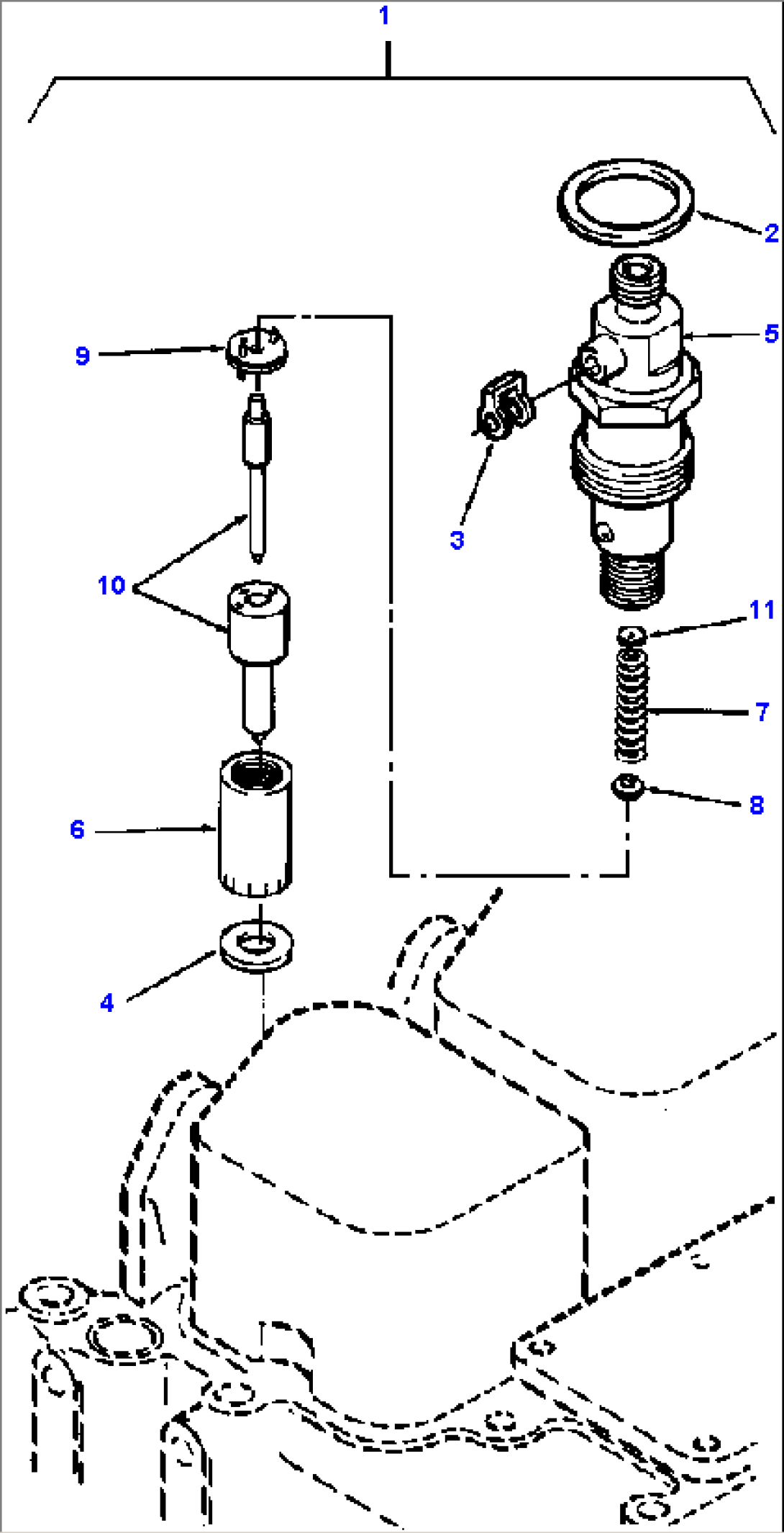

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1294 420 H92 | KIT, FUEL INJECTOR | ||
| 2 | 6732-11-3850 | O-RING | ||
| 3 | 1240 215 H1 | WASHER, SEALING | ||
| 4 | 1241 019 H1 | SEAL, INJECTOR | ||
| 1242 033 H1 | SLEEVE, INJECTOR | |||
| 5 | (NSS) | INJECTOR, FUEL | ||
| 6 | 6734-11-3140 | RETAINER, INJECTION NOZZLE | ||
| 7 | 6734-11-3160 | SPRING, COMPRESSOR | ||
| 8 | 6734-11-3180 | SPINDLE | ||
| 9 | 6734-11-3170 | DISC, INTERMEDIATE | ||
| 10 | 1240 625 H1 | NOZZLE, INJECTOR | ||
| 11 | 6734-11-3610 | SHIM - 1.00MM | ||
| 6734-11-3620 | SHIM - 1.04MM | |||
| 6734-11-3630 | SHIM - 1.08MM | |||
| 6734-11-3640 | SHIM - 1.10MM | |||
| 6734-11-3650 | SHIM - 1.14MM | |||
| 6734-11-3660 | SHIM - 1.18MM | |||
| 6734-11-3670 | SHIM - 1.20MM | |||
| 6734-11-3680 | SHIM - 1.24MM | |||
| 6734-11-3690 | SHIM - 1.28MM | |||
| 6734-11-3710 | SHIM - 1.30MM | |||
| 6734-11-3720 | SHIM - 1.34MM | |||
| 6734-11-3730 | SHIM - 1.38MM | |||
| 6734-11-3740 | SHIM - 1.40MM | |||
| 6734-11-3750 | SHIM - 1.44MM | |||
| 6734-11-3760 | SHIM - 1.48MM | |||
| 6734-11-3770 | SHIM - 1.50MM | |||
| 6734-11-3780 | SHIM - 1.54MM | |||
| 6734-11-3790 | SHIM - 1.58MM | |||
| 6734-11-3810 | SHIM - 1.60MM | |||
| 6734-11-3820 | SHIM - 1.64MM | |||
| 6734-11-3830 | SHIM - 1.68MM | |||
| 6734-11-3840 | SHIM - 1.70MM | |||
| 6734-11-3850 | SHIM - 1.74MM | |||
| 6734-11-3860 | SHIM - 1.78MM | |||
| 6734-11-3870 | SHIM - 1.80MM | |||
| 6734-11-3880 | SHIM - 1.84MM | |||
| 6734-11-3890 | SHIM - 1.88MM | |||
| 6734-11-3910 | SHIM - 1.90MM | |||
| 6734-11-3920 | SHIM - 1.94MM | |||
| 6734-11-3930 | SHIM - 1.98MM |
