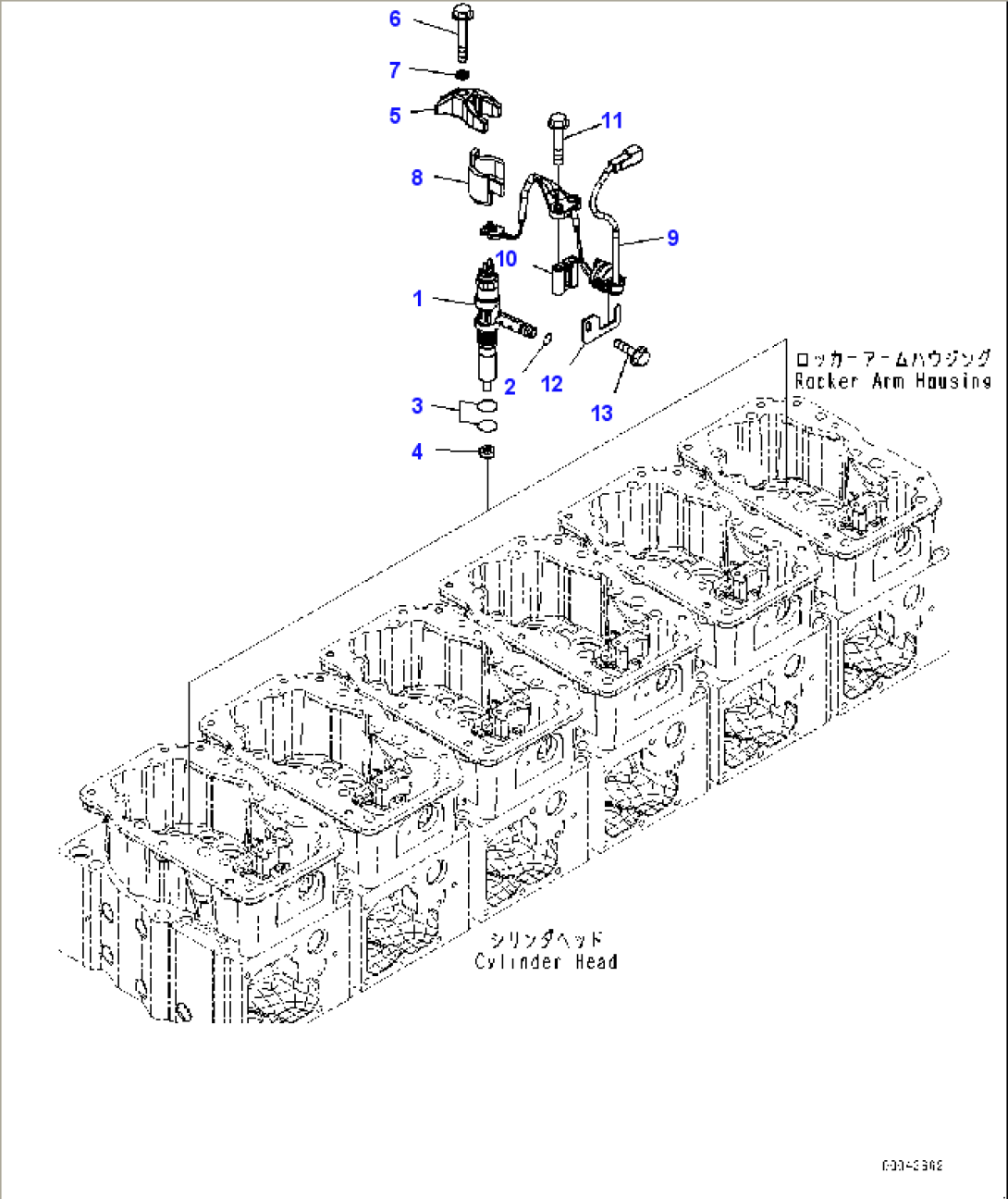

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6245-11-3100 | Injector Assembly | 610861- | |
| 1 | Holder | 610861- | ||
| 1 | Nozzle | 610861- | ||
| 2 | 6219-71-1160 | O-ring | 610861- | |
| 3 | 6219-71-1150 | O-ring | 610861- | |
| 4 | 6261-71-6150 | Gasket | 610861- | |
| 5 | 6245-71-1160 | Holder, Injector | 610861- | |
| 6 | 01437-01075 | Bolt | 610861- | |
| 7 | 6217-71-1140 | Washer | 610861- | |
| 8 | 6245-71-1170 | Adapter | 610861- | |
| 9 | 6245-81-9110 | Wiring Harness | 610861- | |
| 10 | 6245-81-9140 | Spacer | 610861- | |
| 11 | 01435-00865 | Bolt | 610861- | |
| 12 | 6245-81-9120 | Plate | 610861- | |
| 13 | 01435-00614 | Bolt | 610861- |
