| Item | Part No. | Part Name | Qty | Serial No. |

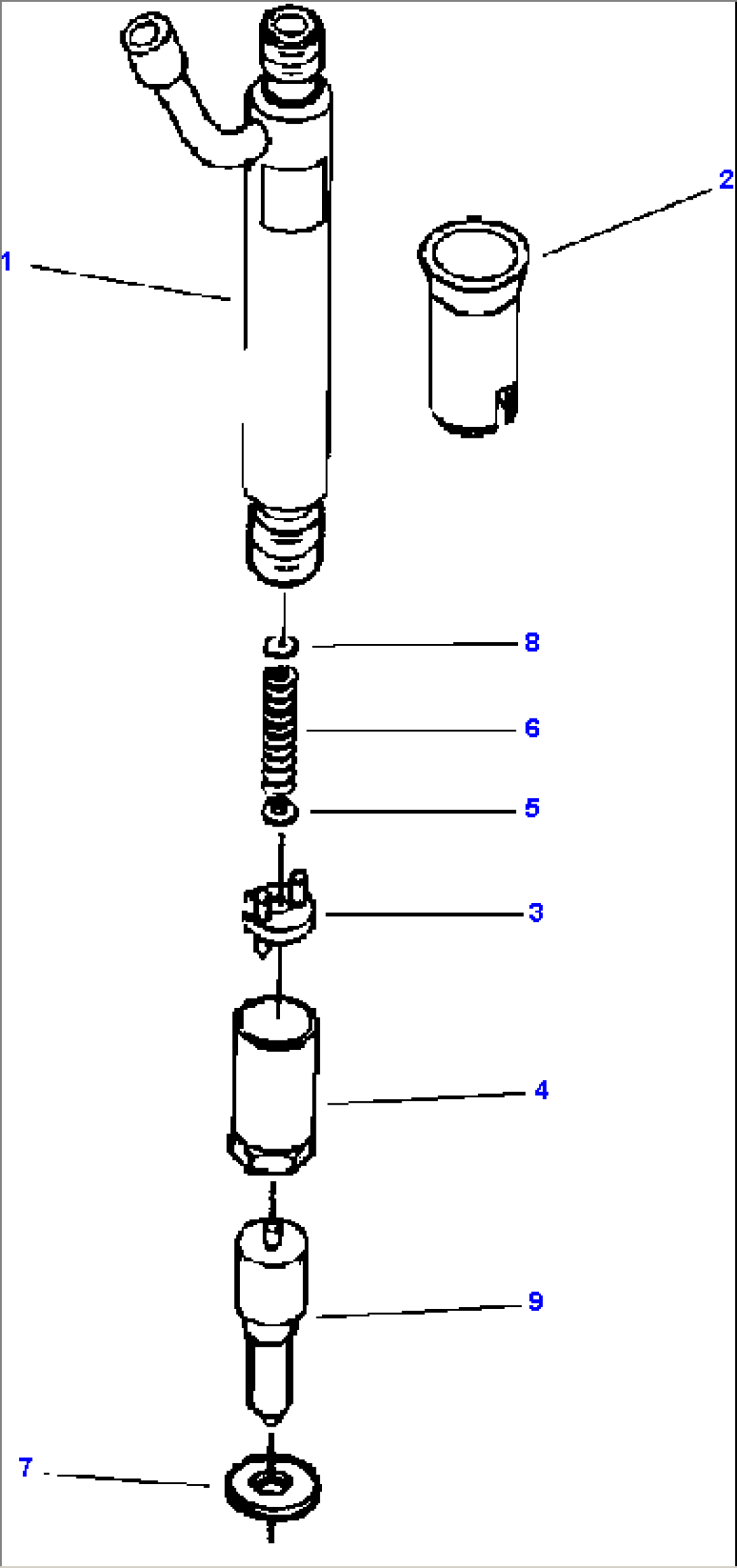

| 1295 751 H91 | FUEL INJECTOR ASSEMBLY | |||
| 1 | (NSS) | INJECTOR, FUEL | ||
| 2 | 6742-01-0740 | SEAL, INJECTOR | ||
| 3 | 6734-11-3170 | DISC, INTERMEDIATE | ||
| 4 | 6734-11-3140 | RETAINER, INJECTOR NOZZLE | ||
| 5 | 6742-01-3710 | SPINDLE, INJECTOR | ||
| 6 | 6742-01-3720 | SPRING, COMPRESSION | ||
| 7 | 6736-11-3430 | SEAL, INJECTOR | ||
| 8 | 6734-11-3610 | SHIM - 0.0394 IN. (1.00 MM) | ||
| 6734-11-3620 | SHIM - 0.0409 IN. (1.04 MM) | |||
| 6734-11-3630 | SHIM - 0.0425 IN. (1.08 MM) | |||
| 6734-11-3640 | SHIM - 0.0433 IN. (1.10 MM) | |||
| 6734-11-3650 | SHIM - 0.0449 IN. (1.14 MM) | |||
| 6734-11-3660 | SHIM - 0.0465 IN. (1.18 MM) | |||
| 6734-11-3670 | SHIM - 0.0472 IN. (1.20 MM) | |||
| 6734-11-3680 | SHIM - 0.0488 IN. (1.24 MM) | |||
| 6734-11-3690 | SHIM - 0.0504 IN. (1.28 MM) | |||
| 6734-11-3710 | SHIM - 0.0512 IN. (1.30 MM) | |||
| 6734-11-3720 | SHIM - 0.0528 IN. (1.34 MM) | |||
| 6734-11-3730 | SHIM - 0.0543 IN. (1.38 MM) | |||
| 6734-11-3740 | SHIM - 0.0551 IN. (1.40 MM) | |||
| 6734-11-3750 | SHIM - 0.0567 IN. (1.44 MM) | |||
| 6734-11-3760 | SHIM - 0.0583 IN. (1.48 MM) | |||
| 6734-11-3770 | SHIM - 0.0591 IN. (1.50 MM) | |||
| 6734-11-3780 | SHIM - 0.0606 IN. (1.54 MM) | |||
| 6734-11-3790 | SHIM - 0.0622 IN. (1.58 MM) | |||
| 6734-11-3810 | SHIM - 0.0630 IN. (1.60 MM) | |||
| 6734-11-3820 | SHIM - 0.0646 IN. (1.64 MM) | |||
| 6734-11-3830 | SHIM - 0.0661 IN. (1.68 MM) | |||
| 6734-11-3840 | SHIM - 0.0670 IN. (1.70 MM) | |||
| 6734-11-3850 | SHIM - 0.0685 IN. (1.74 MM) | |||
| 6734-11-3860 | SHIM - 0.0701 IN. (1.78 MM) | |||
| 6734-11-3870 | SHIM - 0.0709 IN. (1.80 MM) | |||
| 6734-11-3880 | SHIM - 0.0724 IN. (1.84 MM) | |||
| 6734-11-3890 | SHIM - 0.0740 IN. (1.88 MM) | |||
| 6734-11-3910 | SHIM - 0.0748 IN. (1.90 MM) | |||
| 6734-11-3920 | SHIM - 0.0764 IN. (1.94 MM) | |||
| 6734-11-3930 | SHIM - 0.0780 IN. (1.98 MM) | |||
| 9 | 1310 887 H1 | NOZZLE, INJECTOR |
