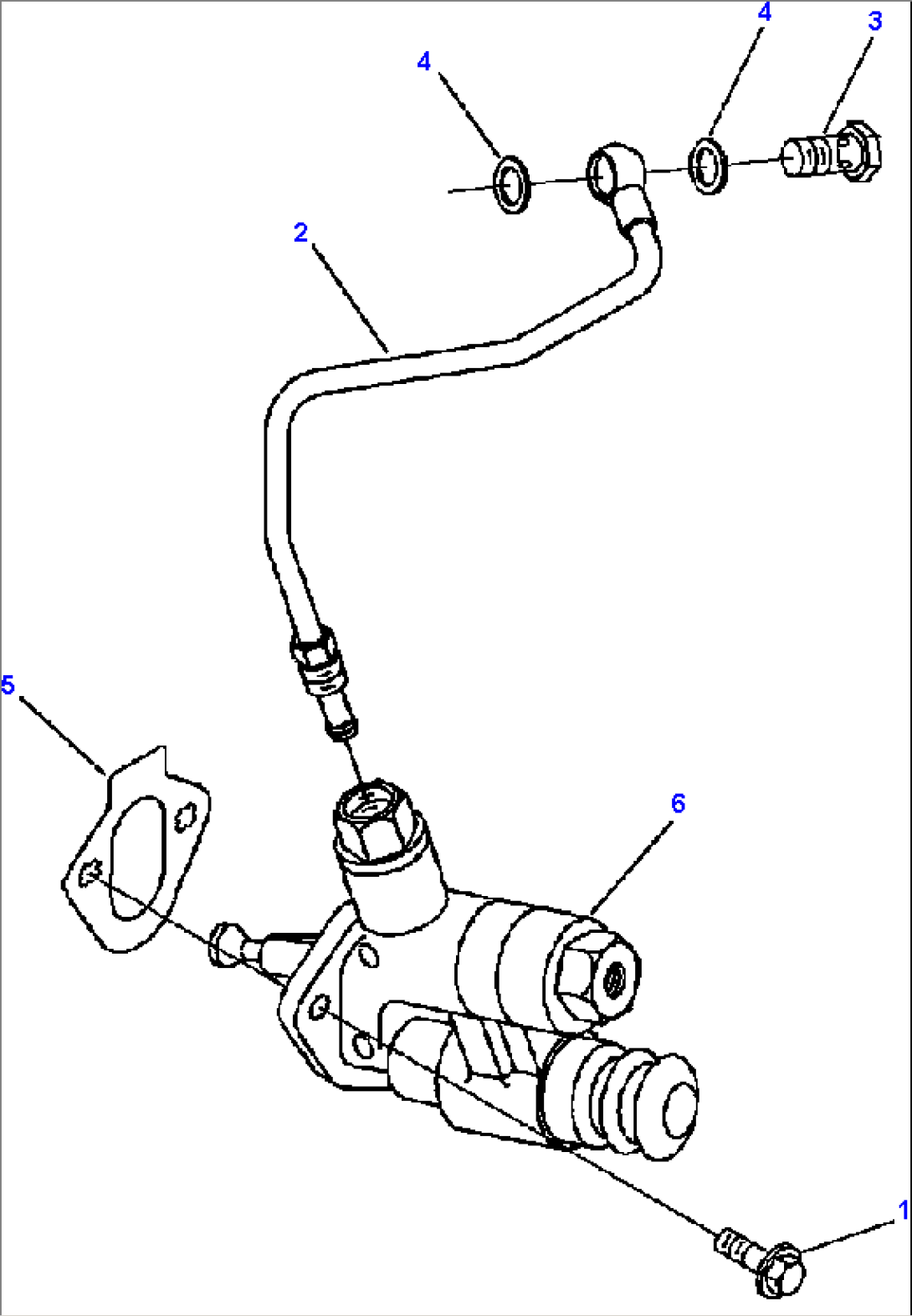

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6732-71-3220 | BOLT (M8x1.25x20) | ||
| 2 | 1241 045 H1 | TUBE, FUEL SUPPLY | ||
| 3 | 6736-71-5820 | SCREW, BANJO CONNECTOR | ||
| 4 | 0700-50-1212 | WASHER, SEALING (12 mm) | ||
| 5 | 6735-61-6410 | GASKET, COVER PLATE | ||
| 6 | 1310 354 H1 | PUMP, FUEL TRANSFER | ||
| N/I | 1296 812 H91 | KIT, LIFT PUMP SERVICE | ||
| F1 - KIT INCLUDES: | ||||
| (NSS) | GASKET, CHECK VALVE | |||
| (NSS) | SEAL, O-RING | |||
| (NSS) | SEAL, O-RING | |||
| (NSS) | SEAL, O-RING | |||
| 1296 813 H1 | CHECK VALVE | |||
| 1296 814 H1 | CHECK VALVE | |||
| 6735-61-6410 | GASKET, COVER PLATE |
