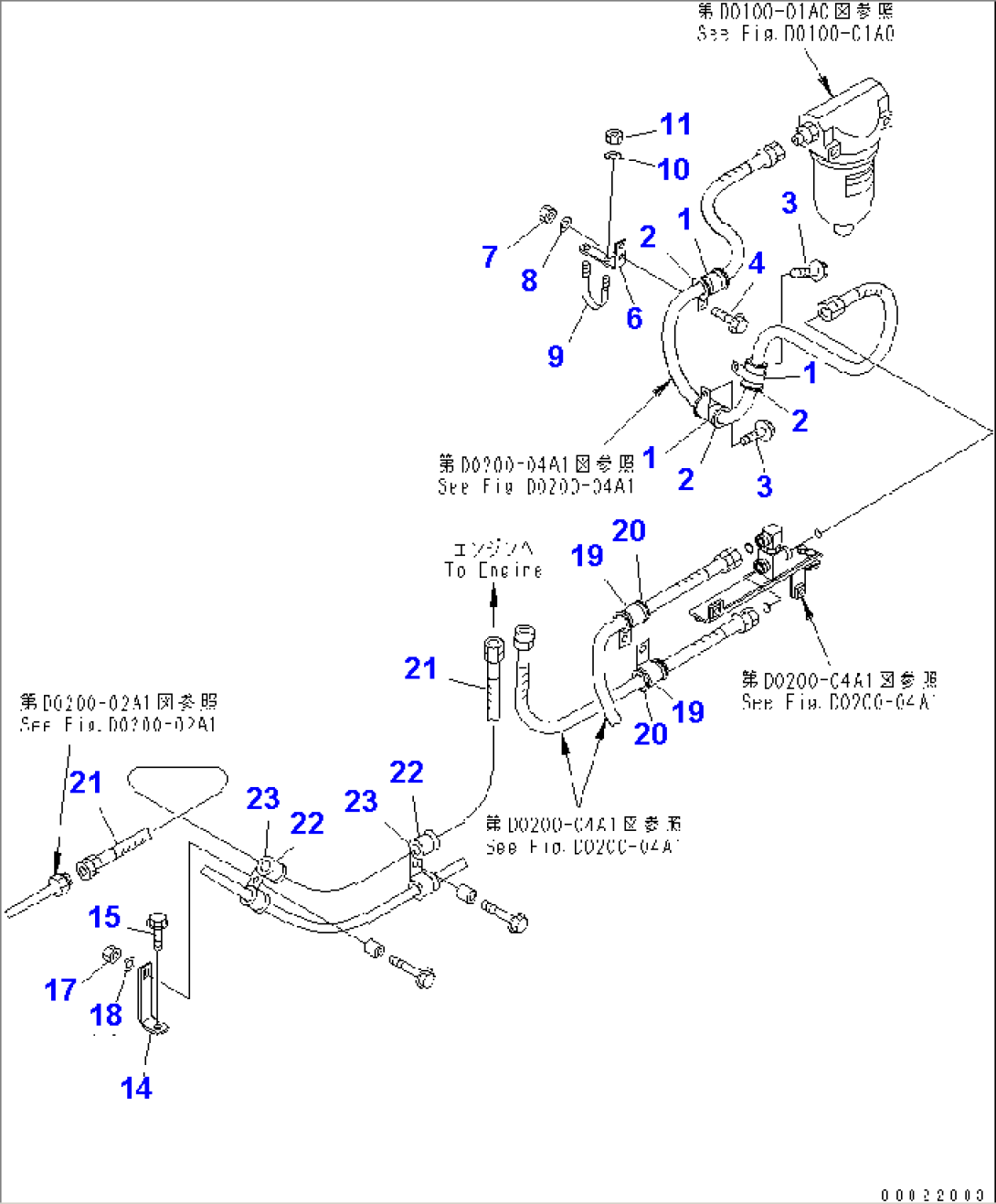

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-09-11150 | CLIP | 7001- | |
| 2 | 07095-01034 | CUSHION | 7001- | |
| 3 | 01435-01225 | BOLT | 7001- | |
| 4 | 01435-01230 | BOLT | 7001- | |
| 6 | 569-04-81930 | BRACKET | 7001- | |
| 7 | 01580-11210 | NUT | 7001- | |
| 8 | 01643-31032 | WASHER | 7001- | |
| 9 | 07283-37663 | CLIP | 7001- | |
| 10 | 01643-31032 | WASHER | 7001- | |
| 11 | 01597-01009 | NUT | 7001- | |
| 14 | 569-04-81940 | BRACKET | 7001- | |
| 15 | 01435-01016 | BOLT | 7001- | |
| 17 | 01580-11008 | NUT | 7001- | |
| 18 | 01643-31032 | WASHER | 7001- | |
| 19 | 04434-53412 | CLIP | 7001- | |
| 20 | 07095-20627 | CUSHION | 7001- | |
| 21 | 02762-00620 | HOSE | 7001- | |
| 22 | 04434-53412 | CLIP | 7001- | |
| 23 | 07095-20627 | CUSHION | 7001- |
