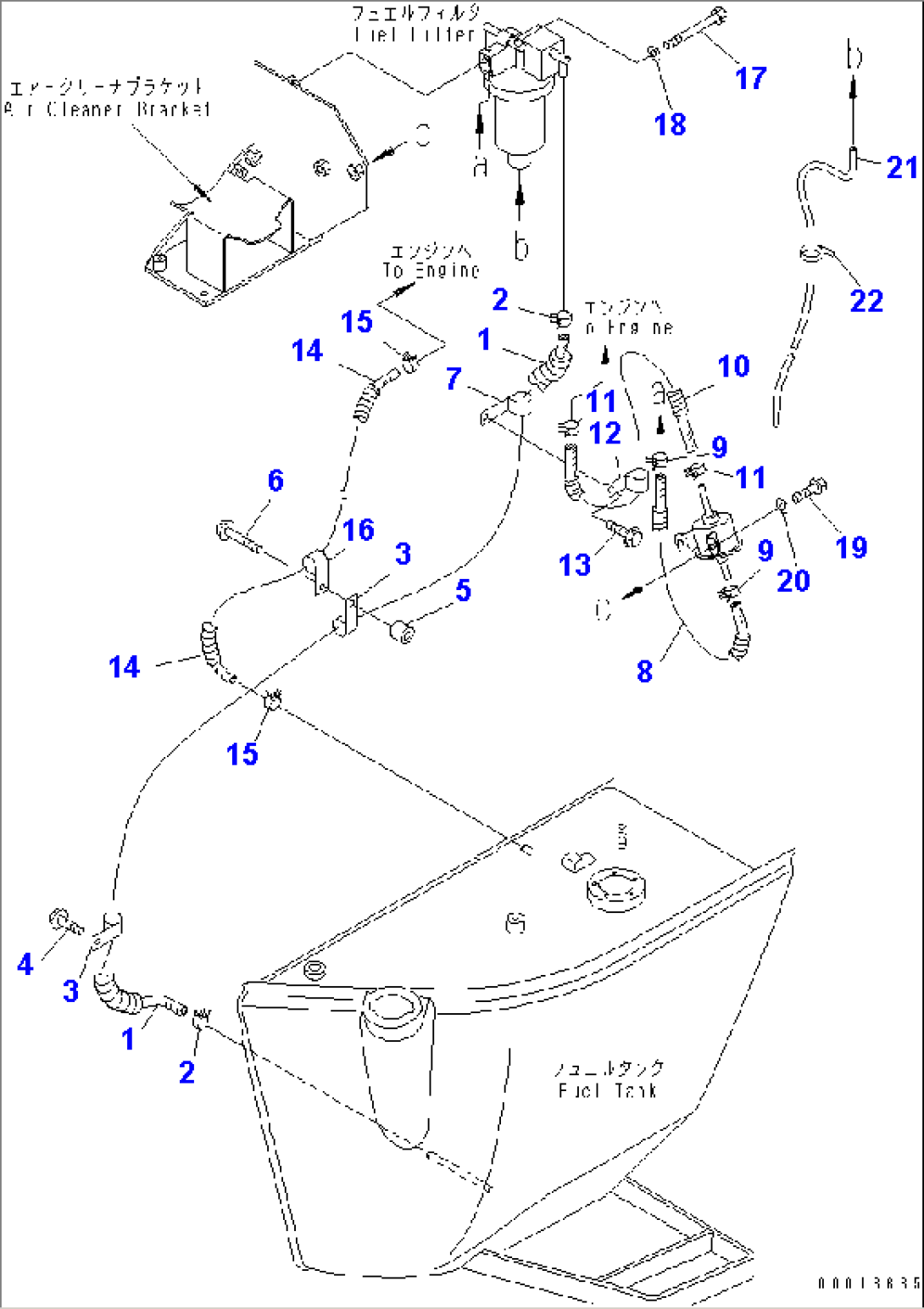

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 363-04-34131 | HOSE ASS'Y | 23042- | |
| 1 | 363-04-34130 | HOSE ASS'Y | 23001-23041 | |
| 2 | 11Y-09-11140 | CLIP | 23001- | |
| 3 | 04434-52310 | CLIP | 23001- | |
| 4 | 01435-01020 | BOLT | 23001- | |
| 5 | 175-79-83760 | SPACER | 23001- | |
| 6 | 01435-01040 | BOLT | 23001- | |
| 7 | 195-01-12520 | CLIP | 23001- | |
| 8 | 363-04-34110 | HOSE ASS'Y | 23001- | |
| 9 | 11Y-09-11120 | CLIP | 23001- | |
| 10 | 363-04-31231 | HOSE ASS'Y | 23042- | |
| 10 | 363-04-31230 | HOSE ASS'Y | 23001-23041 | |
| 11 | 11Y-09-11120 | CLIP | 23001- | |
| 12 | 04434-51810 | CLIP | 23001- | |
| 13 | 01435-01016 | BOLT | 23001- | |
| 14 | 363-04-34121 | HOSE ASS'Y | 23042- | |
| 14 | 363-04-34120 | HOSE ASS'Y | 23001-23041 | |
| 15 | 11Y-09-11120 | CLIP | 23001- | |
| 16 | 04434-51810 | CLIP | 23001- | |
| 17 | 01010-80870 | BOLT | 23001- | |
| 18 | 01643-30823 | WASHER | 23001- | |
| 19 | 01010-80616 | BOLT | 23001- | |
| 20 | 01643-30623 | WASHER | 23001- | |
| 21 | 07270-00670 | TUBE | 23042- | |
| 21 | 07270-00607 | TUBE | 23001-23041 | |
| 22 | 134-03-61410 | BAND | 23042- |
