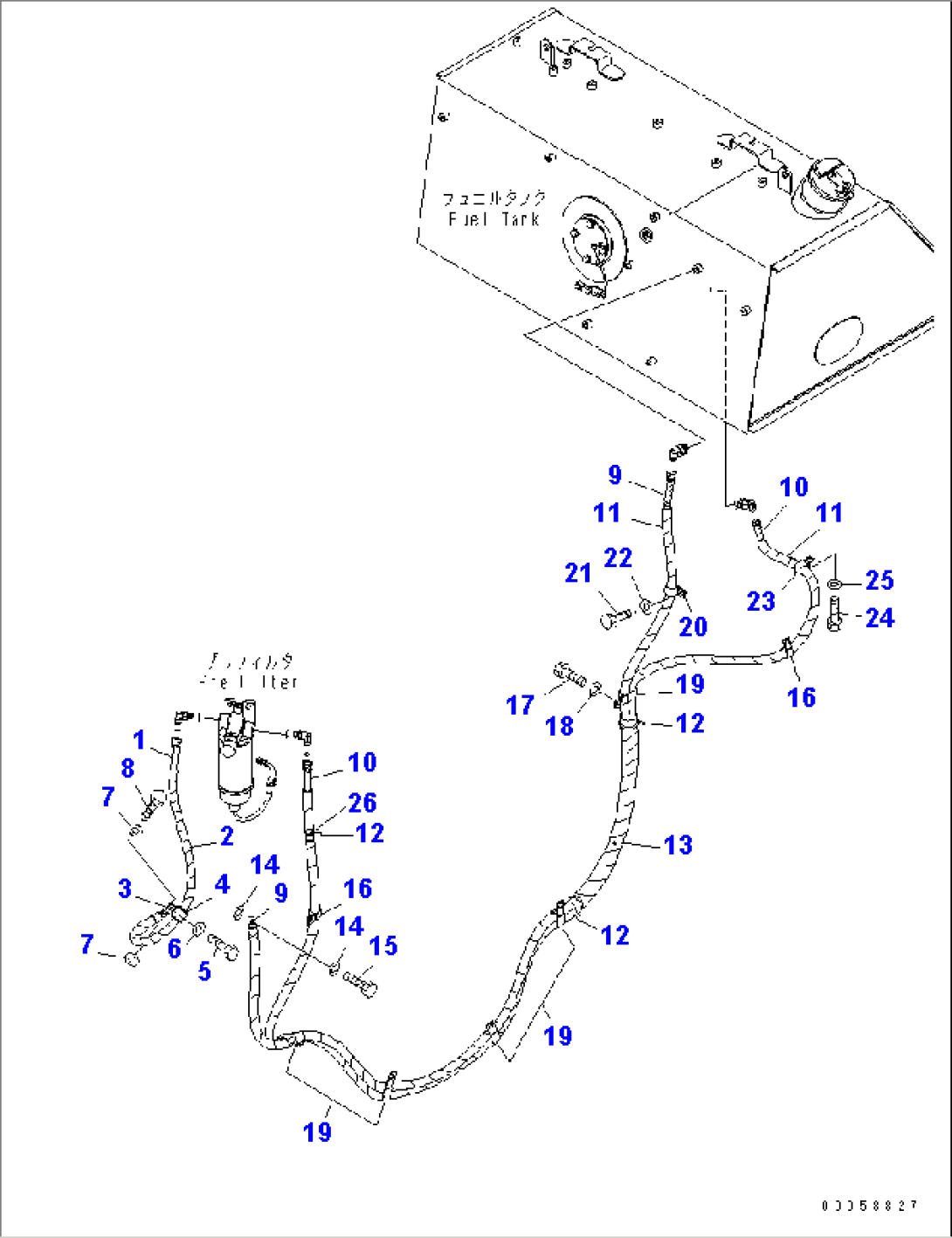

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-04-72230 | HOSE ASS'Y | B45001- | |
| 2 | 08017-C1908 | CONDUIT | B45001- | |
| 3 | 04434-52511 | CLIP | B45001- | |
| 4 | 07095-20318 | CUSHION | B45001- | |
| 5 | 01010-81020 | BOLT | B45001- | |
| 6 | 01643-31032 | WASHER | B45001- | |
| 7 | 07005-01212 | GASKET | B45001- | |
| 8 | 07206-30812 | BOLT | B45001- | |
| 134-04-72240 | HOSE ASS'Y | B45001- | ||
| 9 | 134-04-72211 | HOSE ASS'Y | B45001- | |
| 10 | 134-04-72221 | HOSE ASS'Y | B45001- | |
| 11 | 08017-C1940 | CONDUIT | B45001- | |
| 12 | 08034-20520 | BAND | B45001- | |
| 13 | 08210-02908 | SPIRAL TUBE | B45001- | |
| 14 | 07005-01212 | GASKET | B45001- | |
| 15 | 07206-30812 | BOLT | B45001- | |
| 16 | 04434-52312 | CLIP | B45001- | |
| 17 | 01010-81220 | BOLT | B45001- | |
| 18 | 01643-31232 | WASHER | B45001- | |
| 19 | 421-07-11550 | CLIP | B45001- | |
| 20 | 04434-52310 | CLIP | B45001- | |
| 21 | 01010-81020 | BOLT | B45001- | |
| 22 | 01643-31032 | WASHER | B45001- | |
| 23 | 04434-52312 | CLIP | B45001- | |
| 24 | 01010-81225 | BOLT | B45001- | |
| 25 | 01643-31232 | WASHER | B45001- | |
| 26 | 08034-20519 | BAND | B45001- |
