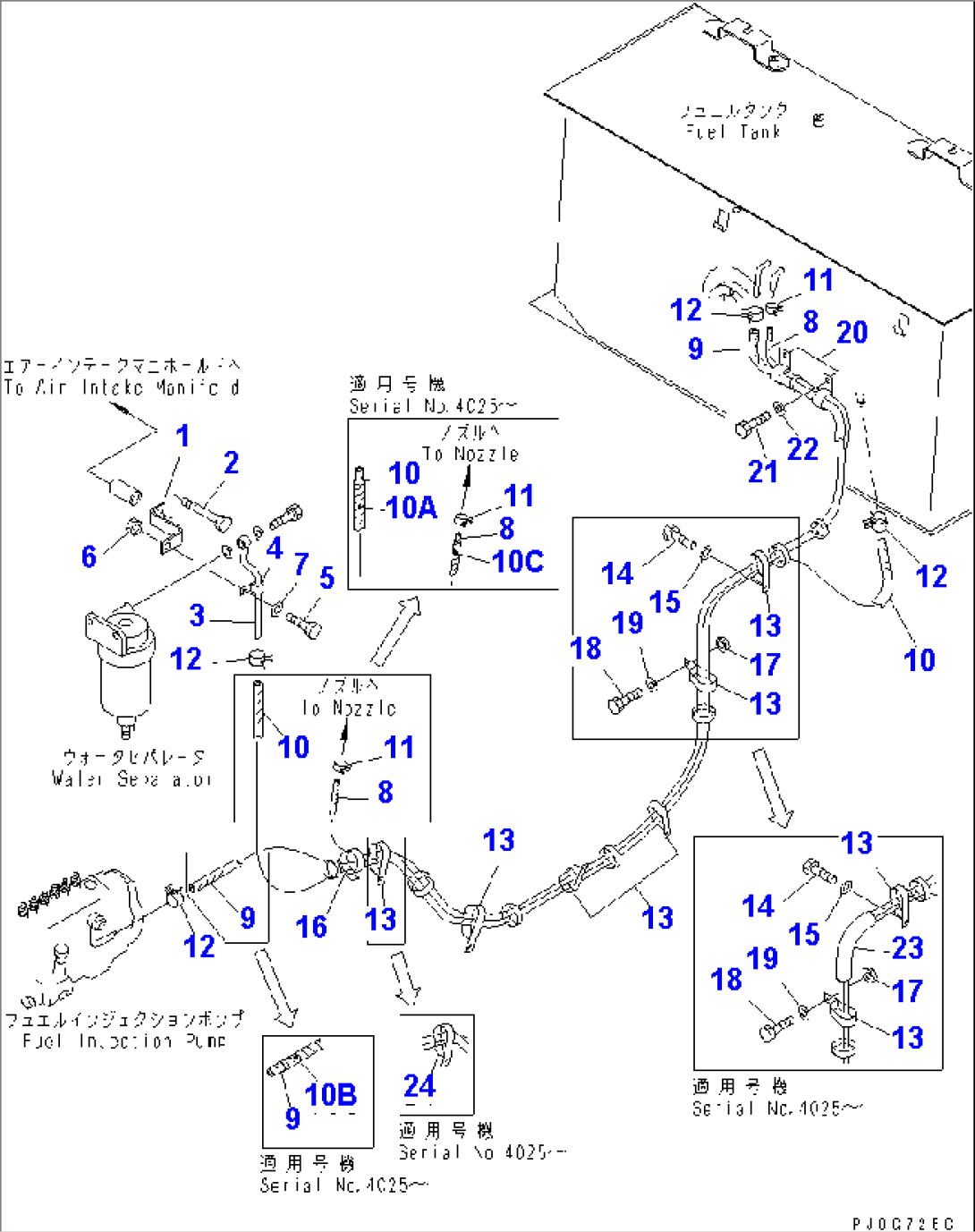

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-11420 | PLATE | 3034- | |
| 2 | 01011-81010 | BOLT | 3034- | |
| 3 | 14X-04-11410 | TUBE | 3034- | |
| 4 | 04434-51010 | CLIP | 3034- | |
| 5 | 01010-81020 | BOLT | 3034- | |
| 6 | 01580-11008 | NUT | 3034- | |
| 7 | 01643-31032 | WASHER | 3034- | |
| 8 | 14X-04-21540 | HOSE | 4001- | |
| 9 | 14X-04-21530 | HOSE | 4001- | |
| 10 | 14X-04-21520 | HOSE | 4001- | |
| 10A | 08017-32209 | CONDUIT | 4025- | |
| 10B | 08017-32206 | CONDUIT | 4025- | |
| 10C | 08017-31907 | CONDUIT | 4025- | |
| 11 | 07285-00130 | CLIP | 3475- | |
| 12 | 11Y-09-11150 | CLIP | 3475- | |
| 13 | 421-07-11550 | CLIP | 4025- | |
| 421-07-11550 | CLIP | 4001-4024 | ||
| 14 | 01010-81220 | BOLT | 4001- | |
| 15 | 01643-31232 | WASHER | 4001- | |
| 16 | 08034-00823 | BAND | 3034- | |
| 17 | 208-01-11270 | WASHER | 4001- | |
| 18 | 01010-81230 | BOLT | 4001- | |
| 19 | 01643-31232 | WASHER | 4001- | |
| 20 | 101-04-12250 | CLIP ASS'Y | 4001- | |
| 21 | 01010-81016 | BOLT | 4001- | |
| 22 | 01643-31032 | WASHER | 4001- | |
| 23 | 14Y-62-11620 | COVER | 4025- | |
| 24 | 20Y-62-15960 | CLIP | 4025- |
