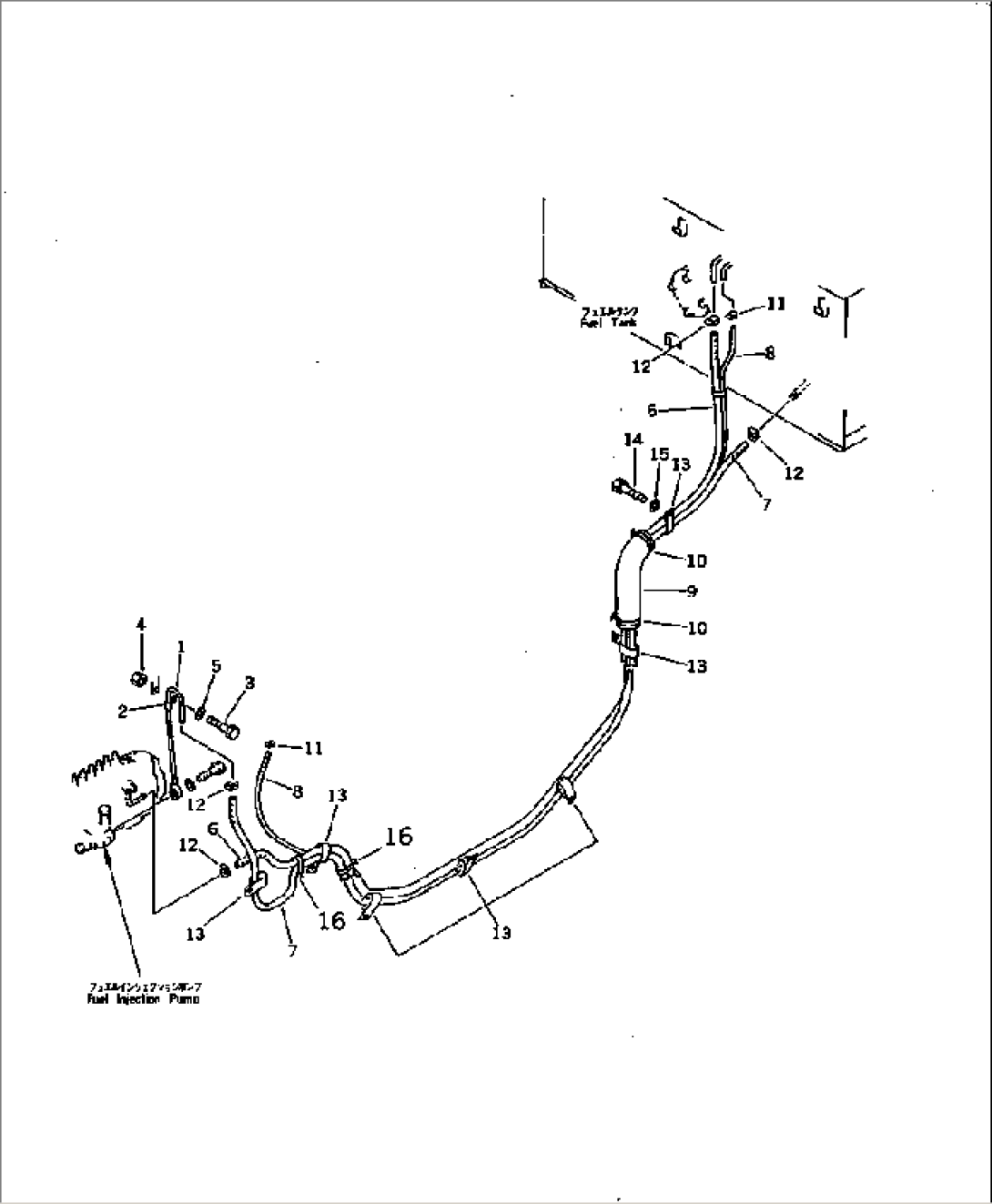

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-11310 | TUBE | 60884-@ | |
| 2 | 04434-51010 | CLIP | 60884-@ | |
| 3 | 01010-81020 | BOLT | 60884-@ | |
| 4 | 01580-11008 | NUT | 60884-@ | |
| 5 | 01643-31032 | WASHER | 60884-@ | |
| 6 | 14X-04-11520 | HOSE | 60884-65000 | |
| 7 | 14X-04-11530 | HOSE | 60884-65000 | |
| 8 | 14X-04-11540 | HOSE | 60884-65000 | |
| 9 | 14Y-62-11620 | COVER | 60884-65000 | |
| 10 | 08034-00823 | BAND | 60884-65000 | |
| 11 | 07285-00130 | CLIP | 63382-@ | |
| 11 | 07280-01418 | CLAMP | 60884-63381 | |
| 12 | 11Y-09-11150 | CLIP | 63382-@ | |
| 12 | \0\07281-00229 | CLAMP | 60884-63381 | |
| 13 | 421-07-11550 | CLIP | 60884-65000 | |
| 14 | 01010-81220 | BOLT | 60884-65000 | |
| 15 | 01643-31232 | WASHER | 60884-65000 | |
| 16 | 08034-00823 | BAND | 60884-@ |
