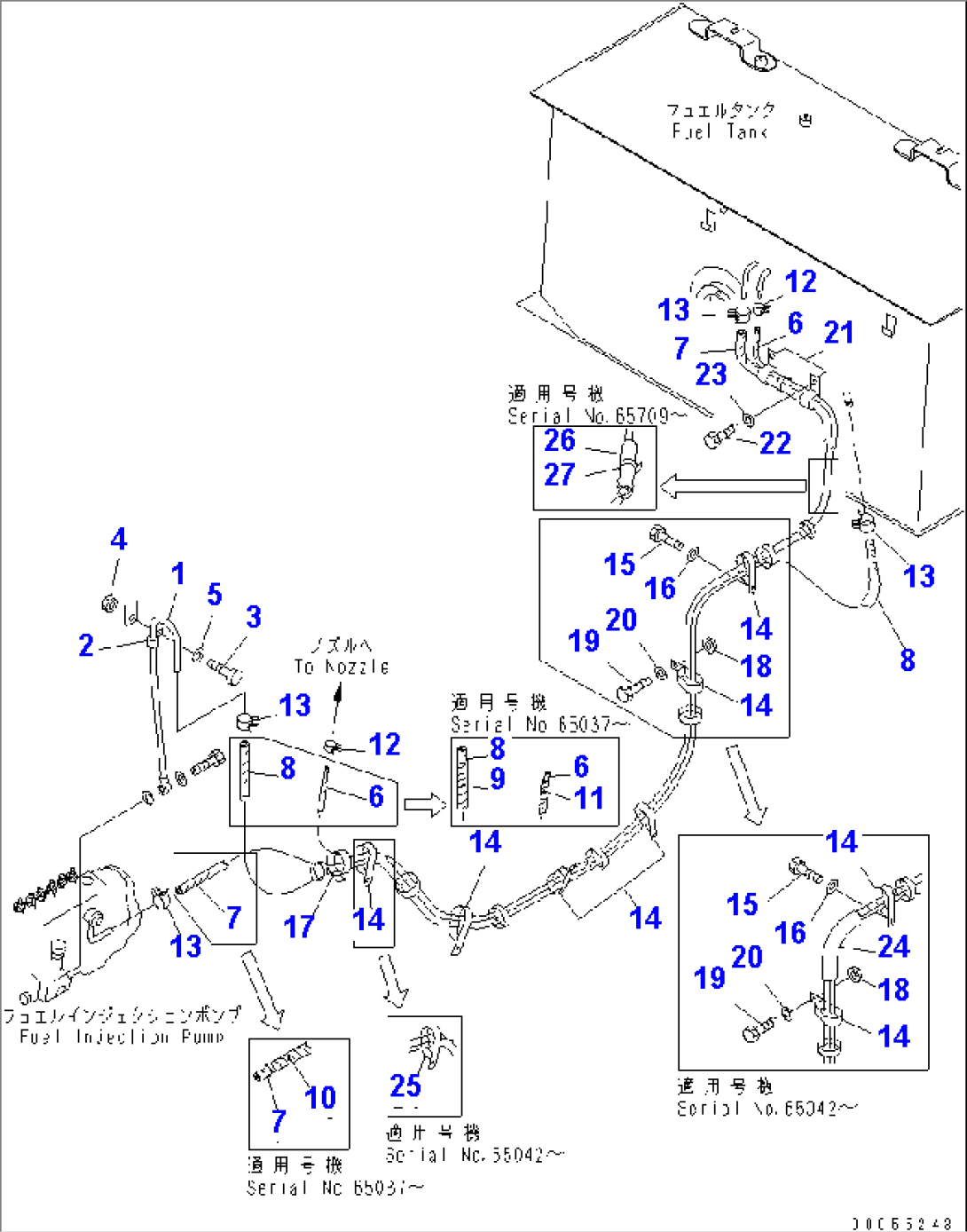

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07205-21014 | JOINT | 61942- | |
| 2 | 04434-51010 | CLIP | 61942- | |
| 3 | 01010-81020 | BOLT | 61942- | |
| 4 | 01580-11008 | NUT | 61942- | |
| 5 | 01643-31032 | WASHER | 61942- | |
| 6 | 14X-04-21540 | HOSE | 65001- | |
| 7 | 14X-04-21530 | HOSE | 65001- | |
| 8 | 14X-04-21520 | HOSE | 65001- | |
| 9 | 08017-32209 | CONDUIT | 65037- | |
| 10 | 08017-32206 | CONDUIT | 65037- | |
| 11 | 08017-31907 | CONDUIT | 65037- | |
| 12 | 07285-00130 | CLIP | 63464- | |
| 13 | 11Y-09-11150 | CLIP | 63464- | |
| 14 | 421-07-11550 | CLIP | 65042- | |
| 14 | 421-07-11550 | CLIP | 65001-65041 | |
| 15 | 01010-81220 | BOLT | 65001- | |
| 16 | 01643-31232 | WASHER | 65001- | |
| 17 | 08034-00823 | BAND | 61942- | |
| 18 | 208-01-11270 | WASHER | 65001- | |
| 19 | 01010-81230 | BOLT | 65001- | |
| 20 | 01643-31232 | WASHER | 65001- | |
| 21 | 101-04-12250 | CLIP ASS'Y | 65001- | |
| 22 | 01010-81016 | BOLT | 65001- | |
| 23 | 01643-31032 | WASHER | 65001- | |
| 24 | 14Y-62-11620 | COVER | 65042- | |
| 25 | 20Y-62-15960 | CLIP | 65042- | |
| 26 | 205-62-53780 | COVER | 65709- | |
| 27 | 08034-20834 | BAND | 65709- |
