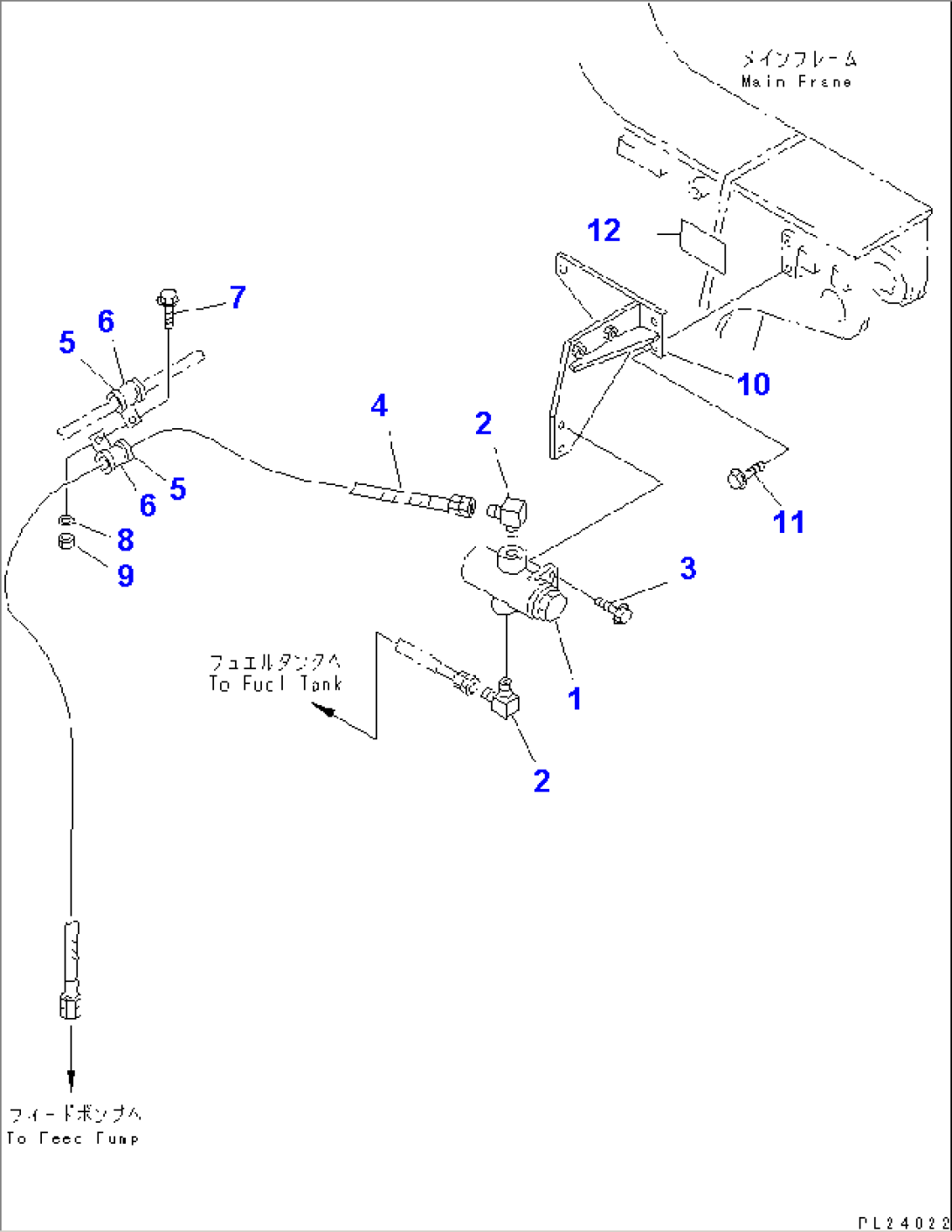

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07058-20000 | FILTER ASS'Y | 1001-1599 | |
| 2 | 566-35-14410 | ELBOW | 1001-1599 | |
| 3 | 01435-00825 | BOLT | 1001-1599 | |
| 4 | 07102-20410 | HOSE | 1001-1599 | |
| 5 | 566-06-41290 | INSULATOR | 1001-1599 | |
| 6 | 04434-52712 | CLIP | 1001-1599 | |
| 7 | 01435-01016 | BOLT | 1001-1599 | |
| 8 | 01643-31032 | WASHER | 1001-1599 | |
| 9 | 01580-11008 | NUT | 1001-1599 | |
| 10 | 567-84-71110 | BRACKET | 1001-1599 | |
| 11 | 01435-01020 | BOLT | 1001-1599 | |
| 12 | 09656-30081 | PLATE, INSTRUCTION | 1001-1599 |
