| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (600-311-9731) | WATER SEPARATOR A. | K35001- | |
| 2 | 01010-81030 | BOLT | K35001- | |
| 3 | 01643-31032 | WASHER | K35001- | |
| 4 | 07270-60895 | TUBE | K35001- | |
| 5 | 07281-00167 | CLAMP | K35001- | |
| 6 | 08034-00519 | BAND | K35001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc150lgp 6k s/n k35001 up
- Fuel tank and related parts
- Fuel line (water separator)
Поиск по каталогу

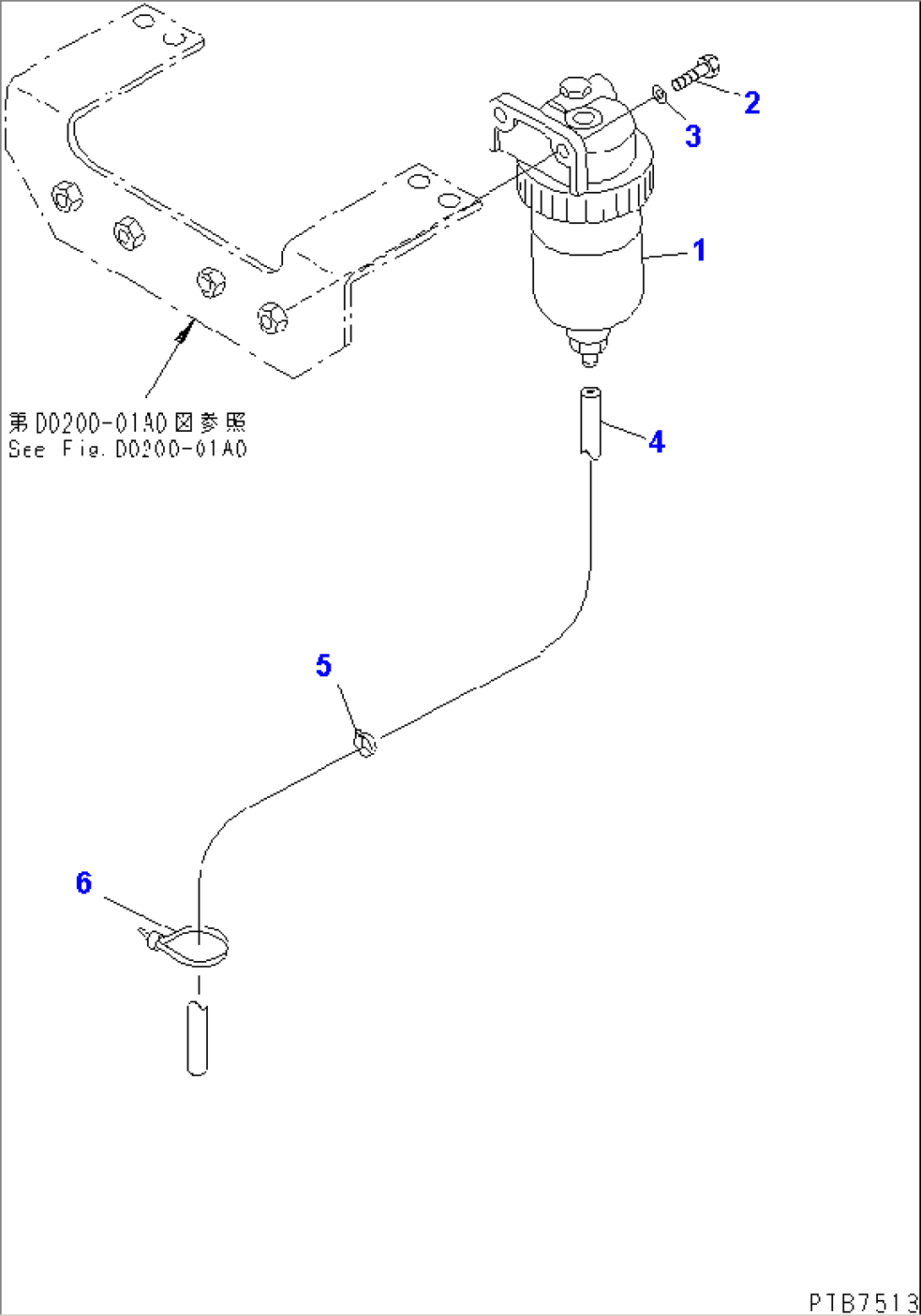

FUEL LINE (WATER SEPARATOR)
