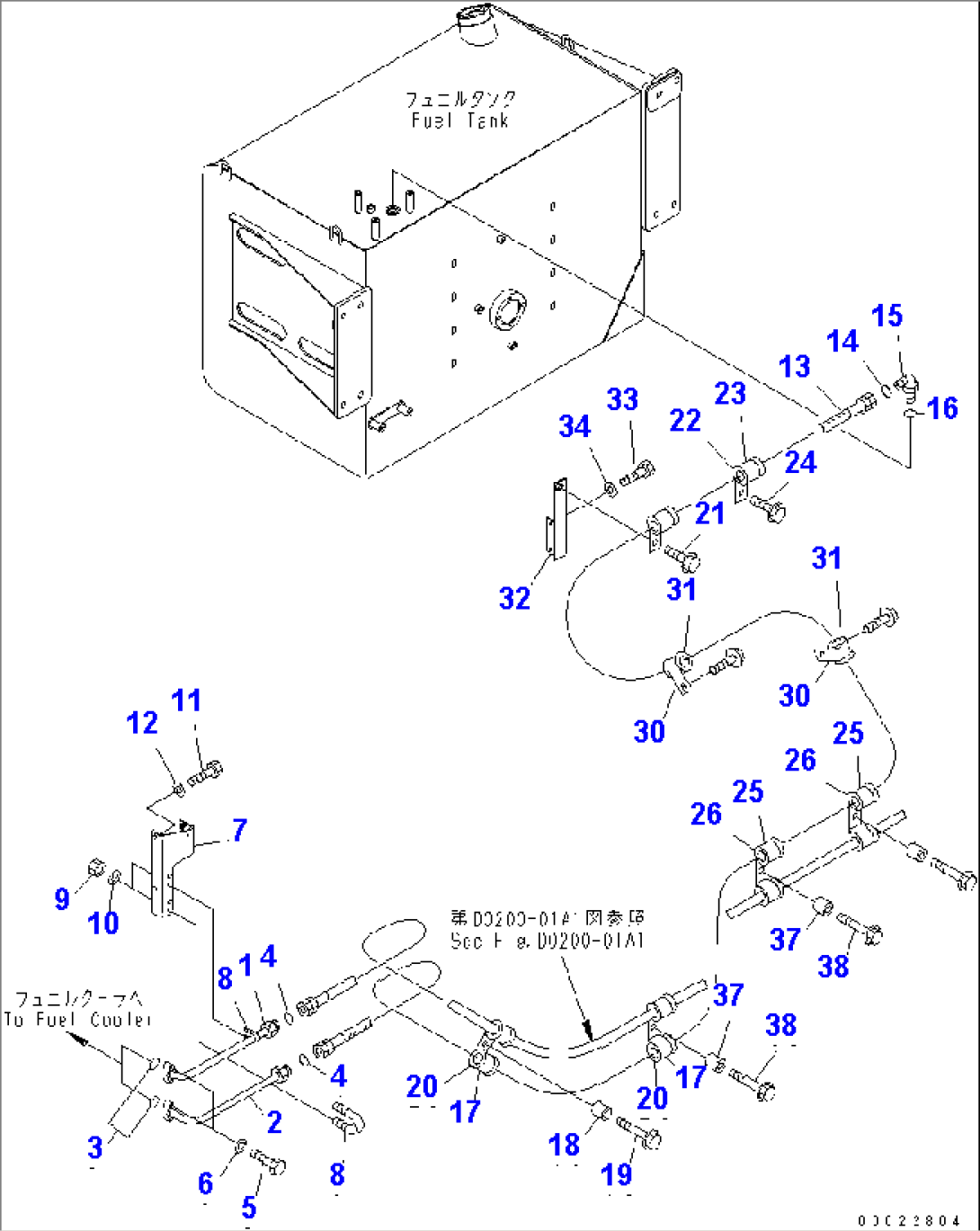

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-04-81151 | TUBE | 7001- | |
| 2 | 569-04-81161 | TUBE | 7001- | |
| 3 | 07000-13025 | O-RING | 7001- | |
| 4 | 02896-11018 | O-RING | 7001- | |
| 5 | 01010-81040 | BOLT | 7001- | |
| 6 | 01643-31032 | WASHER | 7001- | |
| 7 | 569-04-81312 | BRACKET | 7001- | |
| 8 | 07283-32236 | CLIP | 7001- | |
| 9 | 01597-01009 | NUT | 7001- | |
| 10 | 01643-31032 | WASHER | 7001- | |
| 11 | 01010-81235 | BOLT | 7001- | |
| 12 | 01643-31232 | WASHER | 7001- | |
| 13 | 02762-00645 | HOSE | 7001- | |
| 14 | 02896-11018 | O-RING | 7001- | |
| 15 | 02782-10628 | ELBOW | 7001- | |
| 16 | 07002-22434 | O-RING | 7001- | |
| 17 | 04434-53412 | CLIP | 7001- | |
| 18 | 428-64-15110 | COLLAR | 7001- | |
| 19 | 01435-01260 | BOLT | 7001- | |
| 20 | 07095-20627 | CUSHION | 7001- | |
| 21 | 01435-01225 | BOLT | 7001- | |
| 22 | 04434-53412 | CLIP | 7001- | |
| 23 | 07095-20627 | CUSHION | 7001- | |
| 24 | 01435-01220 | BOLT | 7001- | |
| 25 | 04434-53412 | CLIP | 7001- | |
| 26 | 07095-20627 | CUSHION | 7001- | |
| 30 | 04434-53412 | CLIP | 7001- | |
| 31 | 07095-20627 | CUSHION | 7001- | |
| 32 | 569-04-81330 | BRACKET | 7001- | |
| 33 | 01010-81225 | BOLT | 7001- | |
| 34 | 01643-31232 | WASHER | 7001- | |
| 37 | 428-64-15110 | COLLAR | 7001- | |
| 38 | 01435-01240 | BOLT | 7001- |
