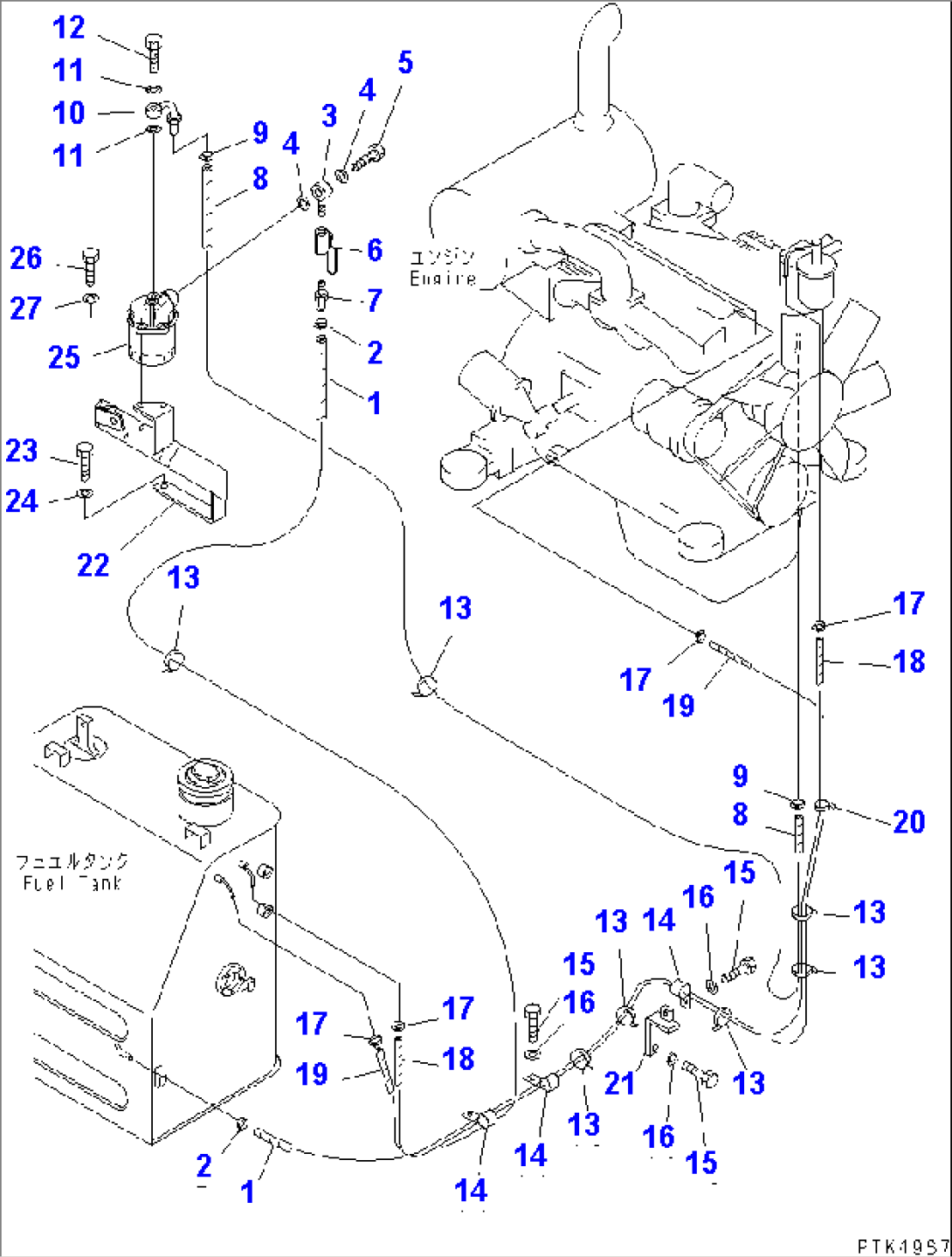

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07288-01019 | HOSE | 52374-58000 | |
| 2 | 07281-00197 | CLAMP | 52374-@ | |
| 3 | 205-04-62140 | JOINT | 52374-@ | |
| 4 | 07005-01412 | SEAL, WASHER | 52374-@ | |
| 5 | 07206-31014 | BOLT | 52374-@ | |
| 6 | 07700-40240 | VALVE | 52374-@ | |
| 7 | 203-04-31130 | NIPPLE | 52374-@ | |
| 8 | 07288-01016 | HOSE | 52374-@ | |
| 9 | 07281-00197 | CLAMP | 52374-@ | |
| 10 | 614-47-15760 | JOINT | 52374-@ | |
| 11 | 07005-01412 | SEAL, WASHER | 52374-@ | |
| 12 | 07206-31014 | BOLT | 52374-@ | |
| 13 | 08034-00519 | BAND | 52374-@ | |
| 14 | 04434-53211 | CLIP | 52374-58000 | |
| 15 | 01010-81025 | BOLT | 52374-58000 | |
| 16 | 01643-31032 | WASHER | 52374-58000 | |
| 17 | 07285-00085 | CLIP | 52374-58000 | |
| 18 | 07288-01019 | HOSE | 52374-@ | |
| 19 | 07270-40422 | TUBE | 52374-58000 | |
| 20 | 07281-00197 | CLAMP | 52374-58000 | |
| 21 | 201-04-72130 | BRACKET | 52374-58000 | |
| 22 | 201-04-72140 | BRACKET | 52374-@ | |
| 23 | 01010-81025 | BOLT | 52374-@ | |
| 24 | 01643-31032 | WASHER | 52374-@ | |
| 25 | (600-311-9500) | FILTER ASS'Y,FUEL | 52374-@ | |
| 26 | 01010-80830 | BOLT | 52374-@ | |
| 27 | 01643-30823 | WASHER | 52374-@ |
