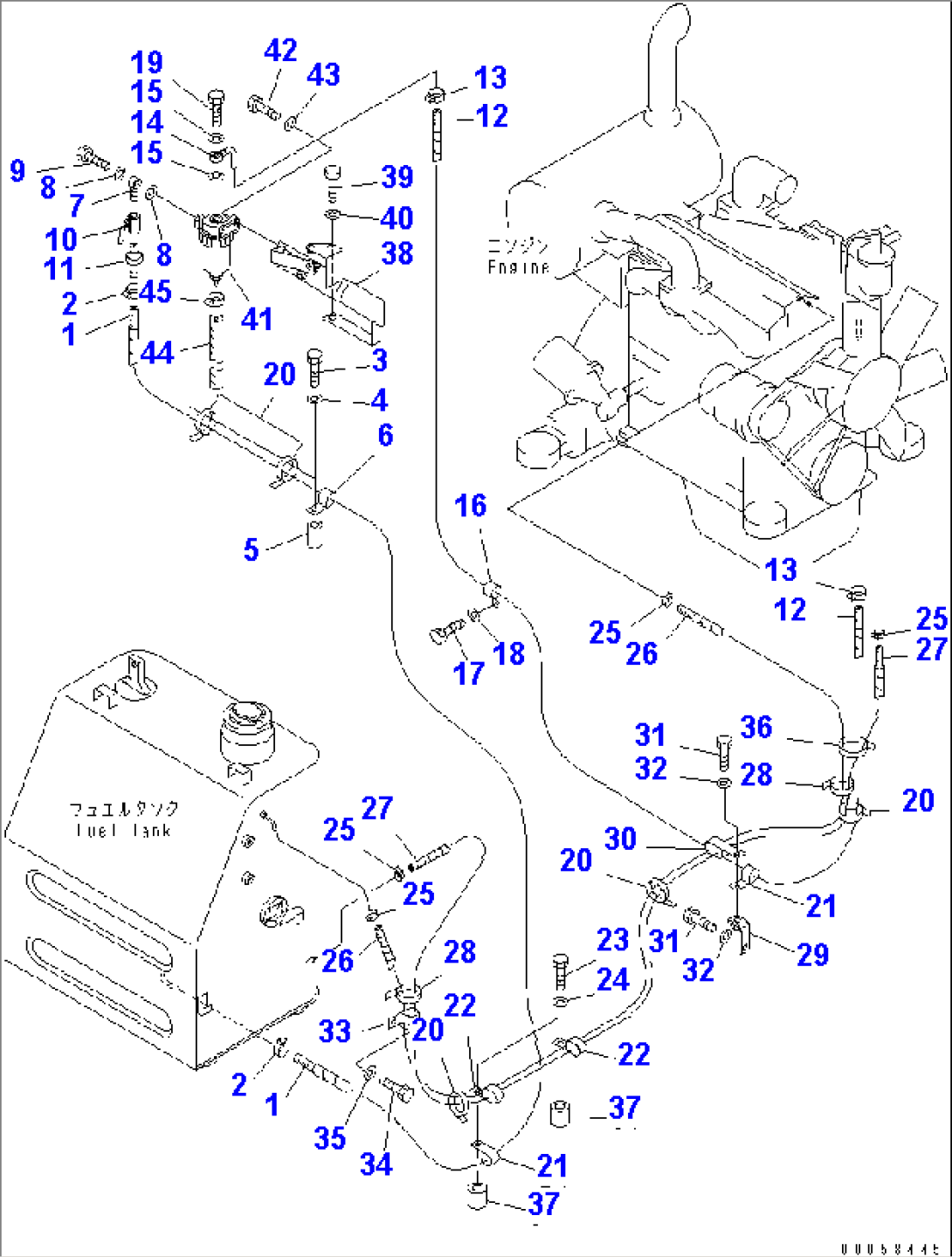

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-04-72180 | HOSE ASS'Y | 1301- | |
| 2 | 11Y-09-11140 | CLIP | 1301- | |
| 3 | 01010-81065 | BOLT | 1301- | |
| 4 | 01643-31032 | WASHER | 1301- | |
| 5 | 205-03-71330 | COLLAR | 1301- | |
| 6 | 04434-52512 | CLIP | 1301- | |
| 7 | 205-04-62140 | JOINT | 1301- | |
| 8 | 07005-01412 | SEAL, WASHER | 1301- | |
| 9 | 07206-31014 | BOLT | 1301- | |
| 10 | 07700-40240 | VALVE | 1301- | |
| 11 | 203-04-31130 | NIPPLE | 1301- | |
| 12 | 8230-04-1180 | HOSE ASS'Y | 1301- | |
| 13 | 11Y-09-11140 | CLIP | 1301- | |
| 14 | 201-04-71110 | JOINT | 1327- | |
| 14 | 6144-71-5760 | JOINT | 1301-1326 | |
| 15 | 07005-01412 | SEAL, WASHER | 1301- | |
| 16 | 04434-52310 | CLIP | 1301- | |
| 17 | 01010-81020 | BOLT | 1301- | |
| 18 | 01643-31032 | WASHER | 1301- | |
| 19 | 07206-31014 | BOLT | 1301- | |
| 20 | 08034-00519 | BAND | 1301- | |
| 21 | 04434-52512 | CLIP | 1301- | |
| 22 | 04435-51710 | CLIP | 1301- | |
| 23 | 01010-81045 | BOLT | 1301- | |
| 24 | 01643-31032 | WASHER | 1301- | |
| 25 | 07285-00085 | CLIP | 1301- | |
| 26 | 07270-40426 | TUBE | 1301- | |
| 27 | 07288-00520 | HOSE | 1301- | |
| 28 | 08034-00519 | BAND | 1301- | |
| 29 | 201-06-73640 | BRACKET | 1301- | |
| 30 | 176-911-4170 | CLIP | 1301- | |
| 31 | 01010-81025 | BOLT | 1301- | |
| 32 | 01643-31032 | WASHER | 1301- | |
| 33 | 04434-51410 | CLIP | 1301- | |
| 34 | 01010-81016 | BOLT | 1301- | |
| 35 | 01643-31032 | WASHER | 1301- | |
| 36 | 08034-20823 | BAND | 1301- | |
| 37 | 195-33-11220 | SPACER | 1301- | |
| 38 | 201-04-72141 | BRACKET | 1301- | |
| 39 | 01010-81025 | BOLT | 1301- | |
| 40 | 01643-31032 | WASHER | 1301- | |
| 41 | (600-311-9700) | WATER SEPARATOR A. | 1301- | |
| 42 | 01010-80825 | BOLT | 1301- | |
| 43 | 01643-30823 | WASHER | 1301- | |
| 44 | 07286-00870 | HOSE | 1301- | |
| 45 | 07285-00125 | CLIP | 1301- |
