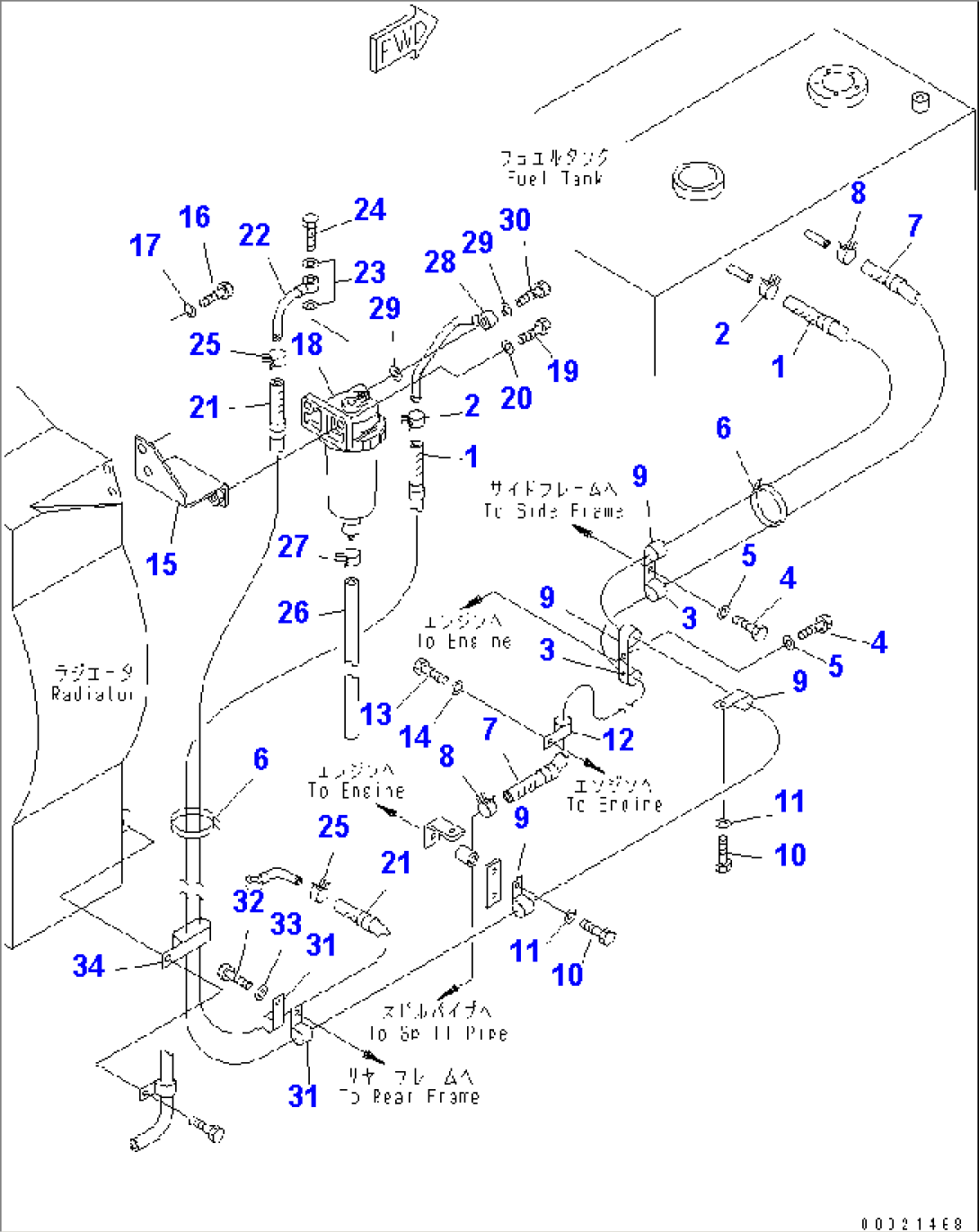

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-04-21410 | HOSE | 12001- | |
| 2 | 11Y-09-11140 | CLIP | 12001- | |
| 3 | 04434-51710 | CLIP | 12001- | |
| 4 | 01010-81020 | BOLT | 12001- | |
| 5 | 01643-31032 | WASHER | 12001- | |
| 6 | 08034-20519 | BAND | 12001- | |
| 7 | 415-04-21171 | HOSE | 12001- | |
| 8 | 07285-00095 | CLIP | 12001- | |
| 9 | 04434-52310 | CLIP | 12001- | |
| 10 | 01010-81020 | BOLT | 12001- | |
| 11 | 01643-31032 | WASHER | 12001- | |
| 12 | 04434-51708 | CLIP | 12001- | |
| 13 | 01010-80816 | BOLT | 12001- | |
| 14 | 01643-30823 | WASHER | 12001- | |
| 15 | 415-04-21440 | BRACKET | 12001- | |
| 16 | 01010-81025 | BOLT | 12001- | |
| 17 | 01643-31032 | WASHER | 12001- | |
| 18 | 6738-71-9110 | WATER SEPARATOR | 12001- | |
| 19 | 01010-81030 | BOLT | 12001- | |
| 20 | 01643-31032 | WASHER | 12001- | |
| 21 | 415-04-21420 | HOSE | 12001- | |
| 22 | 6144-71-5760 | JOINT | 12001- | |
| 23 | 07005-01412 | SEAL, WASHER | 12001- | |
| 24 | 07206-31014 | BOLT | 12001- | |
| 25 | 11Y-09-11140 | CLIP | 12001- | |
| 26 | 07270-20760 | TUBE | 12001- | |
| 27 | 07285-00100 | CLIP | 12001- | |
| 28 | 415-04-21430 | JOINT | 12001- | |
| 29 | 07005-01412 | SEAL, WASHER | 12001- | |
| 30 | 07206-31014 | BOLT | 12001- | |
| 31 | 04434-52310 | CLIP | 12001- | |
| 32 | 01010-81025 | BOLT | 12001- | |
| 33 | 01643-31032 | WASHER | 12001- | |
| 34 | 198-61-14180 | CLIP | 12001- |
