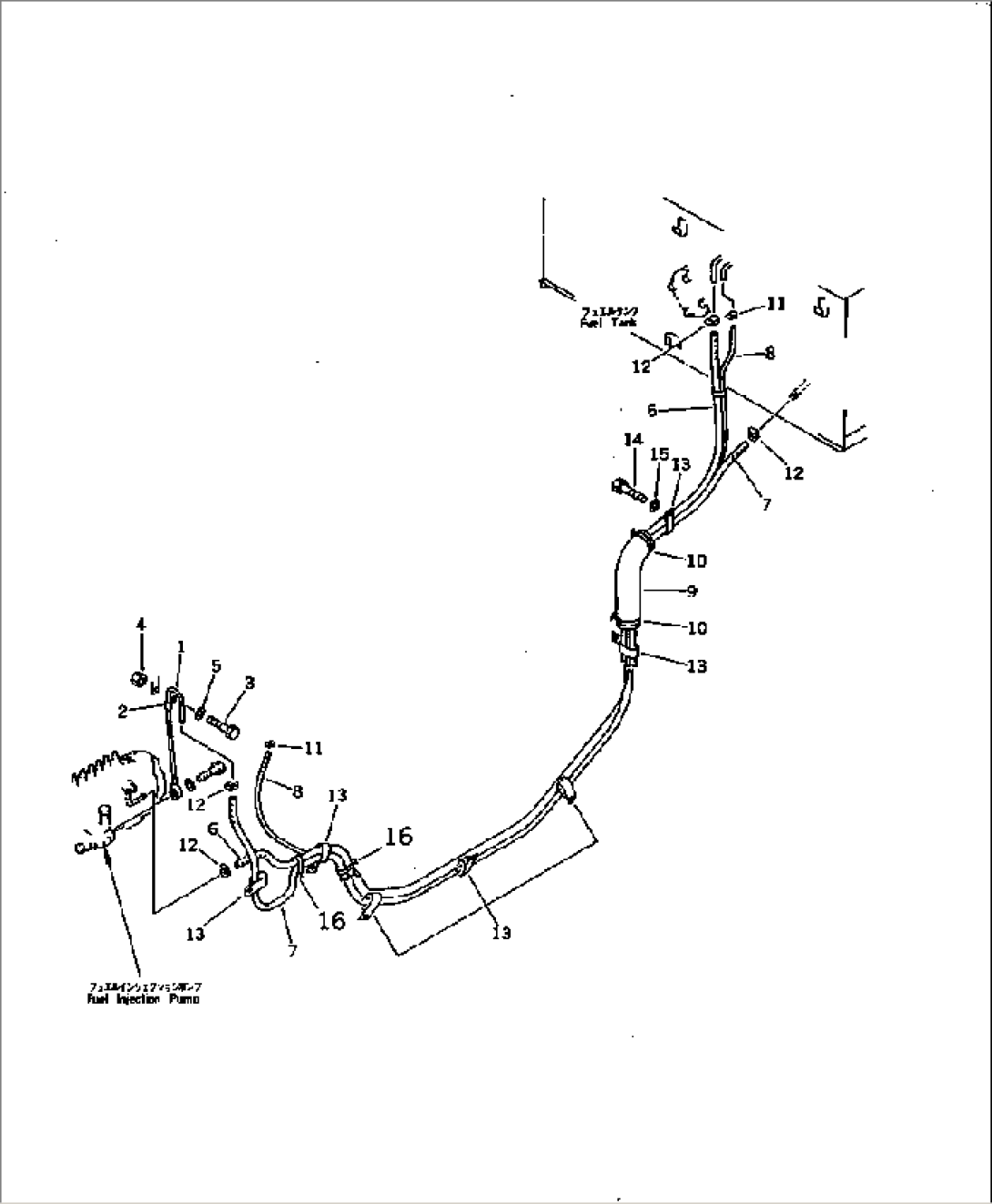

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-11310 | TUBE | 3034-@ | |
| 2 | 04434-51010 | CLIP | 3034-@ | |
| 3 | 01010-81020 | BOLT | 3034-@ | |
| 4 | 01580-11008 | NUT | 3034-@ | |
| 5 | 01643-31032 | WASHER | 3034-@ | |
| 6 | 07288-01030 | HOSE | 3034-4000 | |
| 7 | 07288-01032 | HOSE | 3034-4000 | |
| 8 | 14X-04-11210 | HOSE | 3034-4000 | |
| 9 | 14Y-62-11620 | COVER | 3034-4000 | |
| 10 | 08034-00823 | BAND | 3034-4000 | |
| 11 | 07285-00085 | CLIP | 3475-@ | |
| 07280-01010 | CLAMP | 3034-3474 | ||
| 12 | 11Y-09-11140 | CLIP | 3475-@ | |
| \0\07281-00197 | CLAMP | 3034-3474 | ||
| 13 | 04435-51912 | CLIP | 3034-4000 | |
| 14 | 01010-81220 | BOLT | 3034-4000 | |
| 15 | 01643-31232 | WASHER | 3034-4000 | |
| 16 | 08034-00823 | BAND | 3034-@ |
