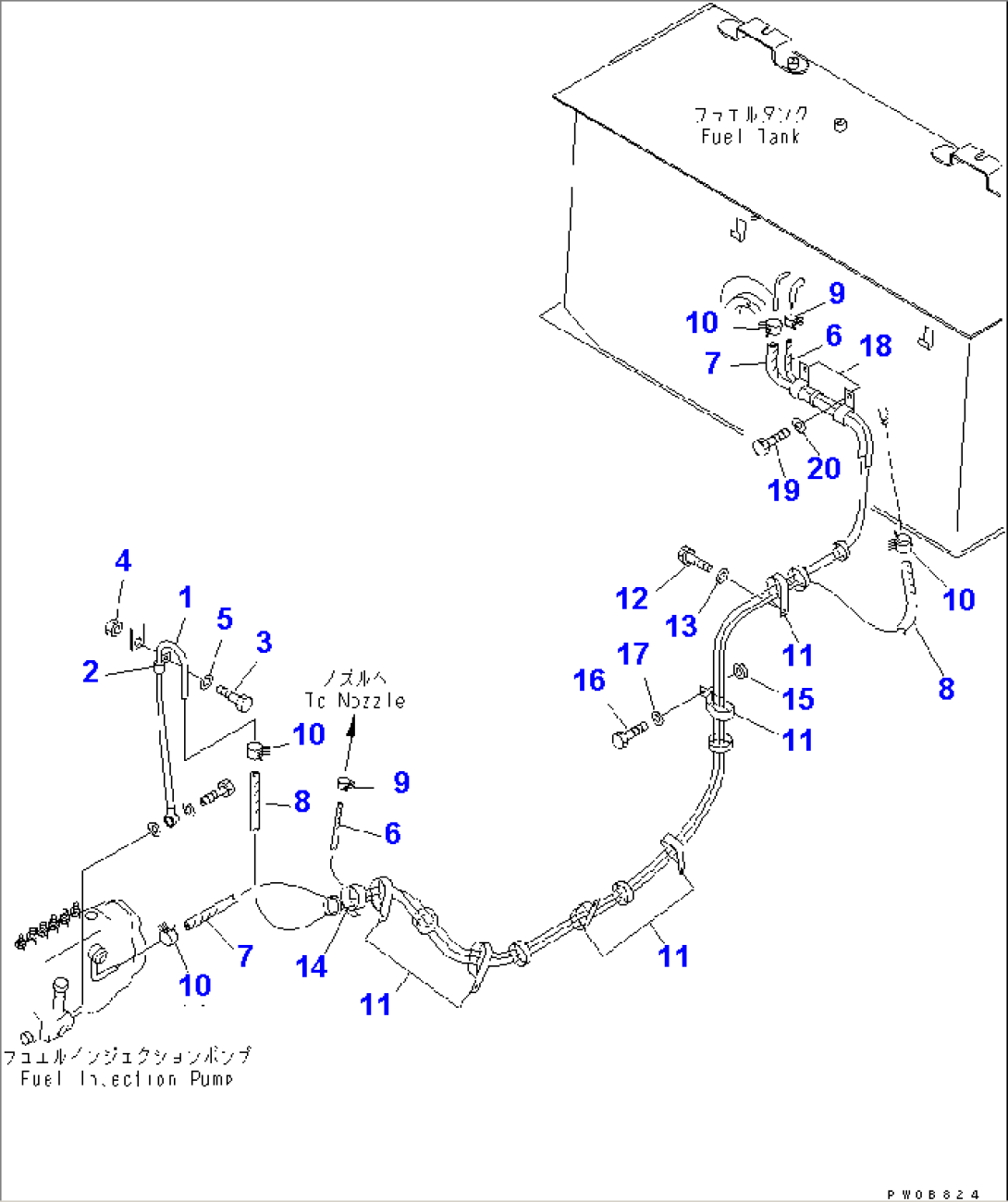

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-11310 | TUBE | 61942- | |
| 2 | 04434-51010 | CLIP | 61942- | |
| 3 | 01010-81020 | BOLT | 61942- | |
| 4 | 01580-11008 | NUT | 61942- | |
| 5 | 01643-31032 | WASHER | 61942- | |
| 6 | 14X-04-21361 | HOSE ASS'Y | 65001- | |
| 6 | 08017-31035 | CONDUIT | 65001- | |
| 7 | 14X-04-21371 | HOSE ASS'Y | 65001- | |
| 7 | 08017-31934 | CONDUIT | 65001- | |
| 8 | 14X-04-21381 | HOSE ASS'Y | 65001- | |
| 8 | 08017-31931 | CONDUIT | 65001- | |
| 9 | 07285-00085 | CLIP | 63464- | |
| 10 | 11Y-09-11140 | CLIP | 63464- | |
| 11 | 134-04-61290 | CLIP | 65001- | |
| 12 | 01010-81220 | BOLT | 65001- | |
| 13 | 01643-31232 | WASHER | 65001- | |
| 14 | 08034-00823 | BAND | 61942- | |
| 15 | 208-01-11270 | WASHER | 65001- | |
| 16 | 01010-81230 | BOLT | 65001- | |
| 17 | 01643-31232 | WASHER | 65001- | |
| 18 | 04434-53411 | CLIP | 65001- | |
| 19 | 01010-81016 | BOLT | 65001- | |
| 20 | 01643-31032 | WASHER | 65001- |
