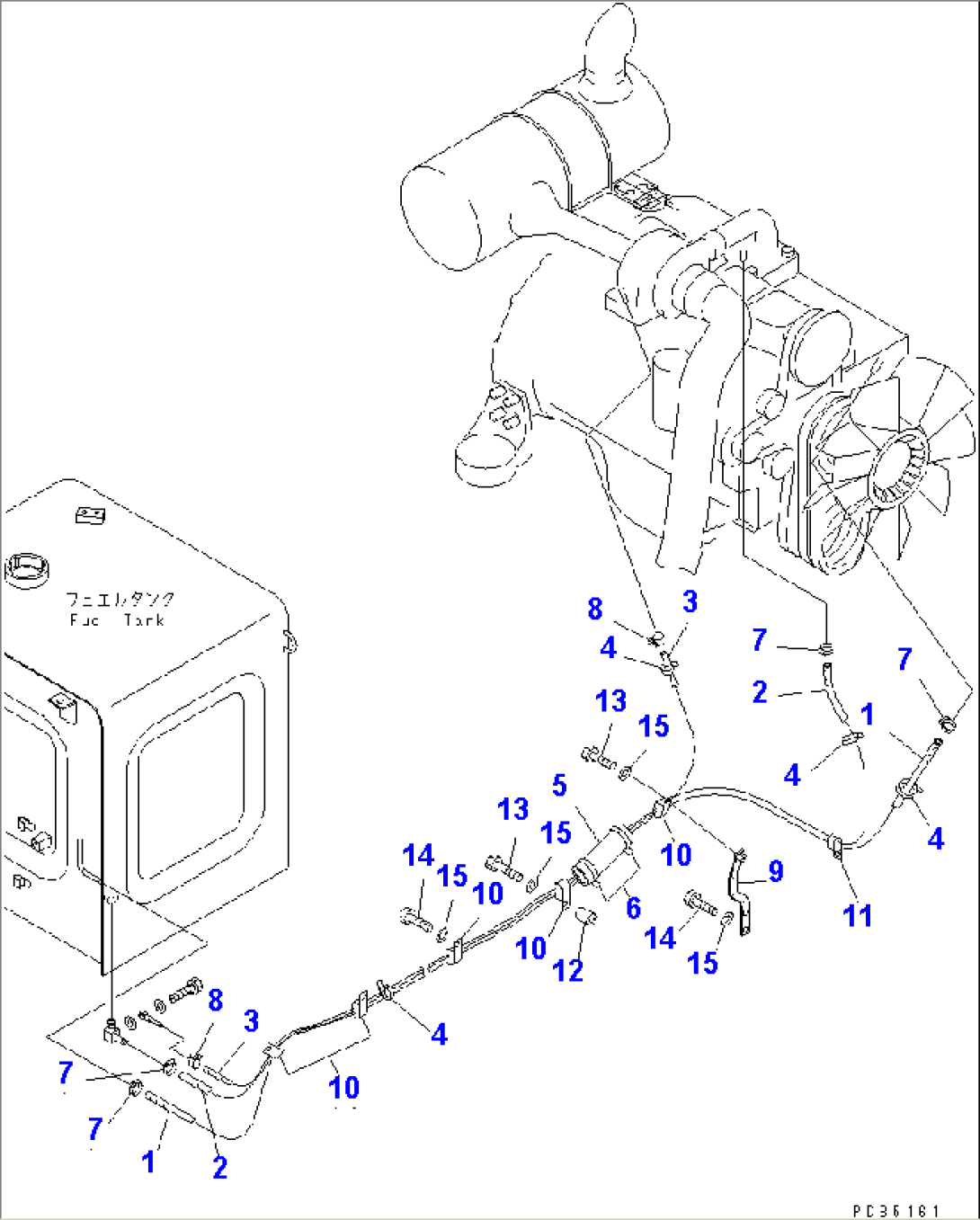

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07288-01029 | HOSE | 1006- | |
| 2 | 07288-01030 | HOSE | 1006- | |
| 3 | 07270-50423 | TUBE | 1006- | |
| 4 | 08034-00519 | BAND | 1006- | |
| 5 | 205-62-53780 | COVER | 1006- | |
| 6 | 08034-00834 | BAND | 1006- | |
| 7 | 07281-00197 | CLAMP | 1006- | |
| 8 | 07285-00080 | CLIP | 1006- | |
| 9 | 20Y-04-21151 | BRACKET | 1006- | |
| 10 | 141-06-11220 | CLIP | 1006- | |
| 11 | 04435-51612 | CLIP | 1006- | |
| 12 | 142-03-11160 | SPACER | 1006- | |
| 13 | 01010-81260 | BOLT | 1006- | |
| 14 | 01010-81225 | BOLT | 1006- | |
| 15 | 01643-31232 | WASHER | 1006- |
