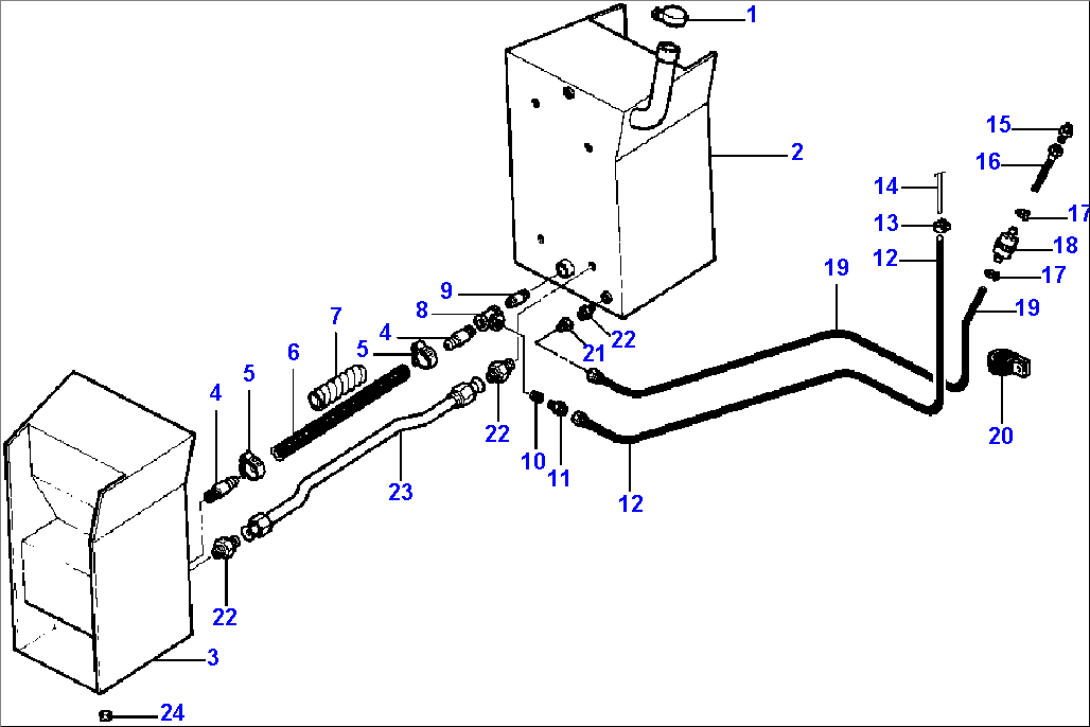

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11 409 | CAP, FUEL TANK | ||
| 2 | 161 975 | TANK, FUEL - R.H | ||
| 33 368 H45 | BOLT | |||
| 33 386 | WASHER, LOCK | |||
| 91 559 | WASHER, PLAIN | |||
| 3 | 161 974 | TANK, FUEL - L.H | ||
| 33 368 H45 | BOLT | |||
| 33 386 | WASHER, LOCK | |||
| 91 559 | WASHER, PLAIN | |||
| 4 | 158 819 | NIPPLE | ||
| 5 | 311 165 C91 | CLAMP, HOSE | ||
| 6 | 61 799 | HOSE | ||
| 7 | 160 931 | SLEEVE, PROTECTIVE | ||
| 8 | 158 817 | TEE | ||
| 9 | 158 684 | NIPPLE | ||
| 10 | 74 784 | BUSHING, REDUCER | ||
| 11 | 59 928 | CONNECTOR | ||
| 12 | 1431 135 H1 | HOSE, RETURN | ||
| 13 | 59 939 | CLAMP | ||
| 14 | TUBE, RETURN (SEE PG E4-002) | |||
| 15 | 33 950 H45 | CONNECTOR | ||
| 16 | 1252 397 H91 | HOSE | ||
| 17 | 73 785 | CLAMP, HOSE | ||
| 18 | 1243 000 H1 | FILTER, FUEL - INLINE | ||
| 19 | 1252 396 H91 | HOSE, SUPPLY | ||
| 20 | 315 411 R1 | CLAMP | ||
| 21 | 444 104 | CONNECTOR | ||
| 22 | 49 563 | CONNECTOR | ||
| 23 | 142 614 | TUBE | ||
| 24 | 85 079 | PLUG, HEX |
