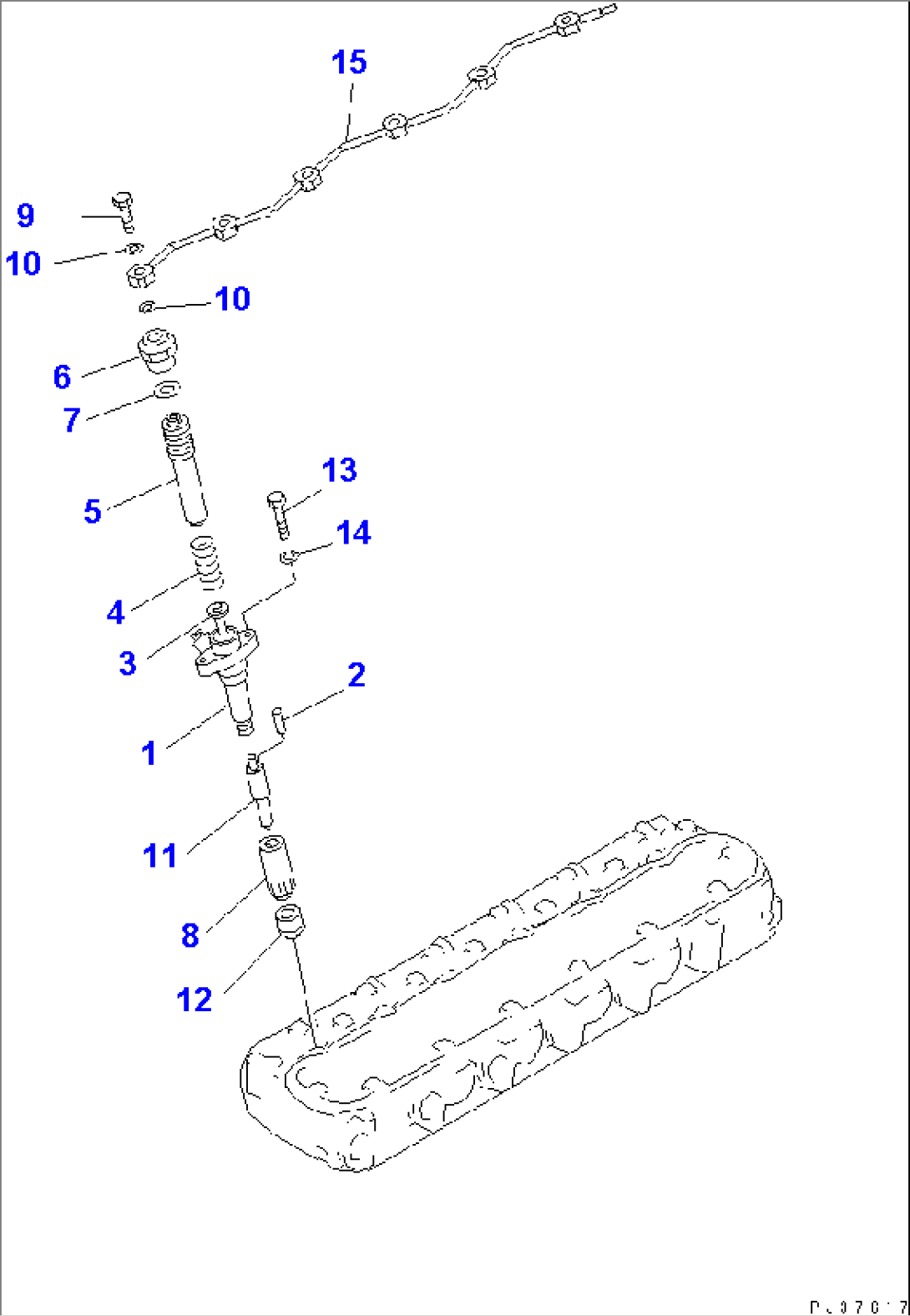

| Item | Part No. | Part Name | Qty | Serial No. |
| 6138-12-3300 | NOZZLE HOLDER ASS'Y | 50001- | ||
| 1 | 6136-12-3110 | HOLDER ASS'Y | 50001- | |
| THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| 2 | DK150508-3300 | PIN | 50001- | |
| 3 | DK150550-3600 | ROD,PUSH | 50001- | |
| 4 | DK150562-1400 | SPRING | 50001- | |
| 5 | DK150565-2001 | SCREW,ADJUST | 50001- | |
| 6 | DK150567-5100 | NUT | 50001- | |
| 7 | DK029331-4130 | GASKET | 50001- | |
| 8 | DK150650-7301 | NUT,RETAINING | 50001- | |
| 9 | 6127-11-3152 | BOLT | 50001- | |
| 10 | 07005-00812 | SEAL, WASHER (K1) | 50001- | |
| 11 | 6138-12-3320 | NOZZLE | 50001- | |
| 12 | 6136-11-3131 | PACKING (K1) | 50001- | |
| 13 | 01435-00855 | BOLT | 60951- | |
| 13 | \0\01010-30855 | BOLT | 50001-60950 | |
| 14 | 01602-00825 | WASHER,SPRING | 50001-60950 | |
| 15 | 6136-71-5310 | PIPE,SPILL | 50001- |
