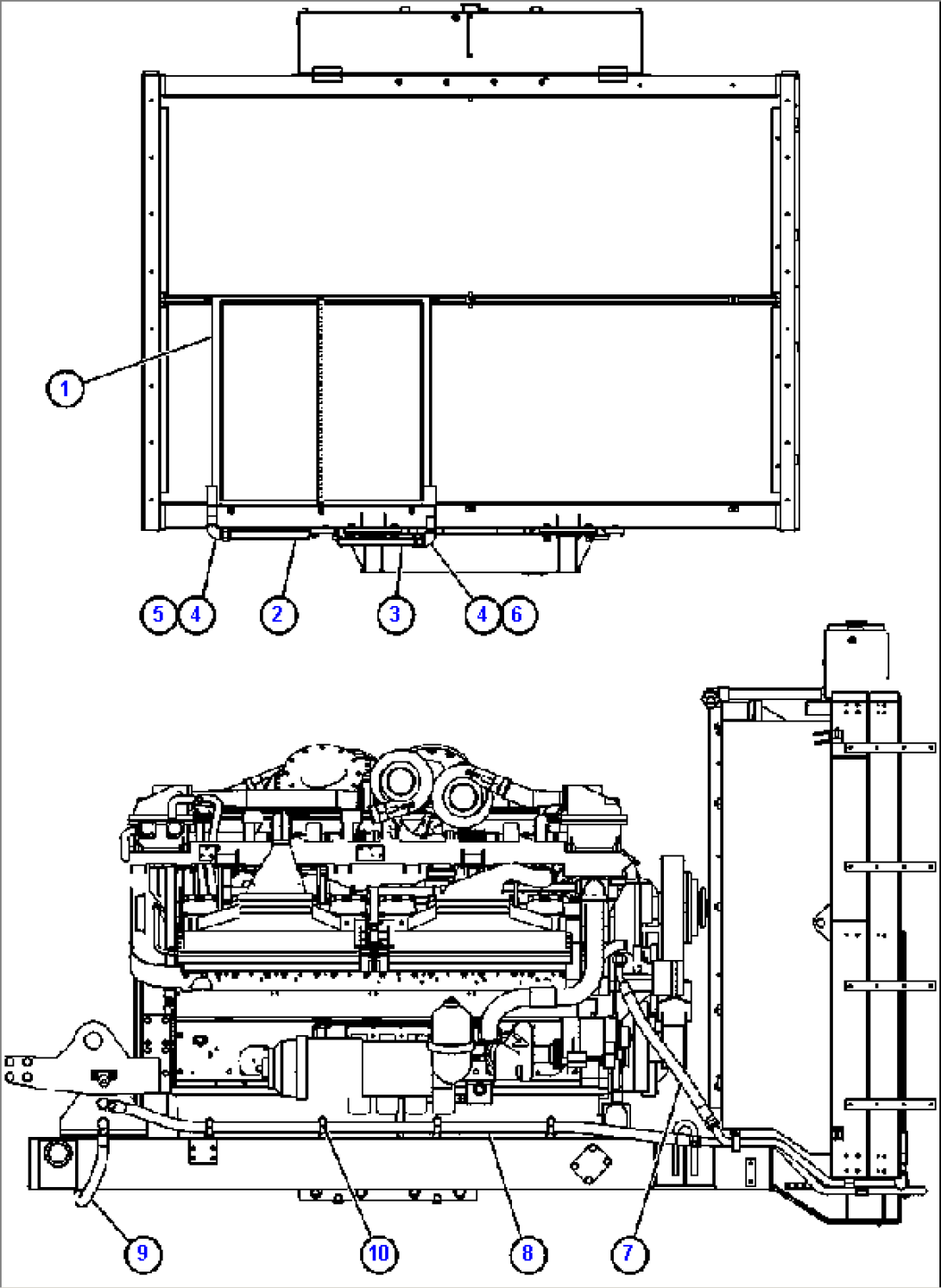

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA2799 | FUEL OIL COOLER ASSEMBLY (SUPPLIED WITH RADIATOR) | ||
| 1 | XA2805 | FRAME, FUEL COOLER | ||
| 1 | VE3999 | GROMMET, RUBBER | ||
| 1 | BF0820 | SEAL, RUBBER | ||
| 1 | BF4982 | TUBE | ||
| 1 | BF4983 | BAR, SUPPORT | ||
| 1 | BF4984 | BAR, SUPPORT | ||
| 1 | C5747 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 1 | XA2806 | FLAT WASHER - MED PL .31G | ||
| 2 | EJ9695 | TUBE | ||
| 3 | EJ9743 | TUBE | ||
| 4 | VM3917 | FITTING, TUBE | ||
| 5 | TD1649 | NIPPLE - 1 1/2" NPT X 3" | ||
| 6 | TC6967 | NIPPLE - 1 1/2" NPT X 4 1/2" | ||
| 7 | HA7747 | HOSE | ||
| 8 | HA7875 | HOSE | ||
| 9 | HA7869 | HOSE | ||
| 10 | WA4712 | CLAMP, HYDRA ZORB - 2" | ||
| NS|19 | NOTE: NS = NOT SHOWN | |||
| NS|20 | WA4710 | CLAMP, HYDRA ZORB - 1 1/2" | ||
| NS|21 | EJ9701 | CLEAT, TUBE | ||
| NS|22 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| NS|23 | TR6008 | FLAT WASHER - 1/2" |
