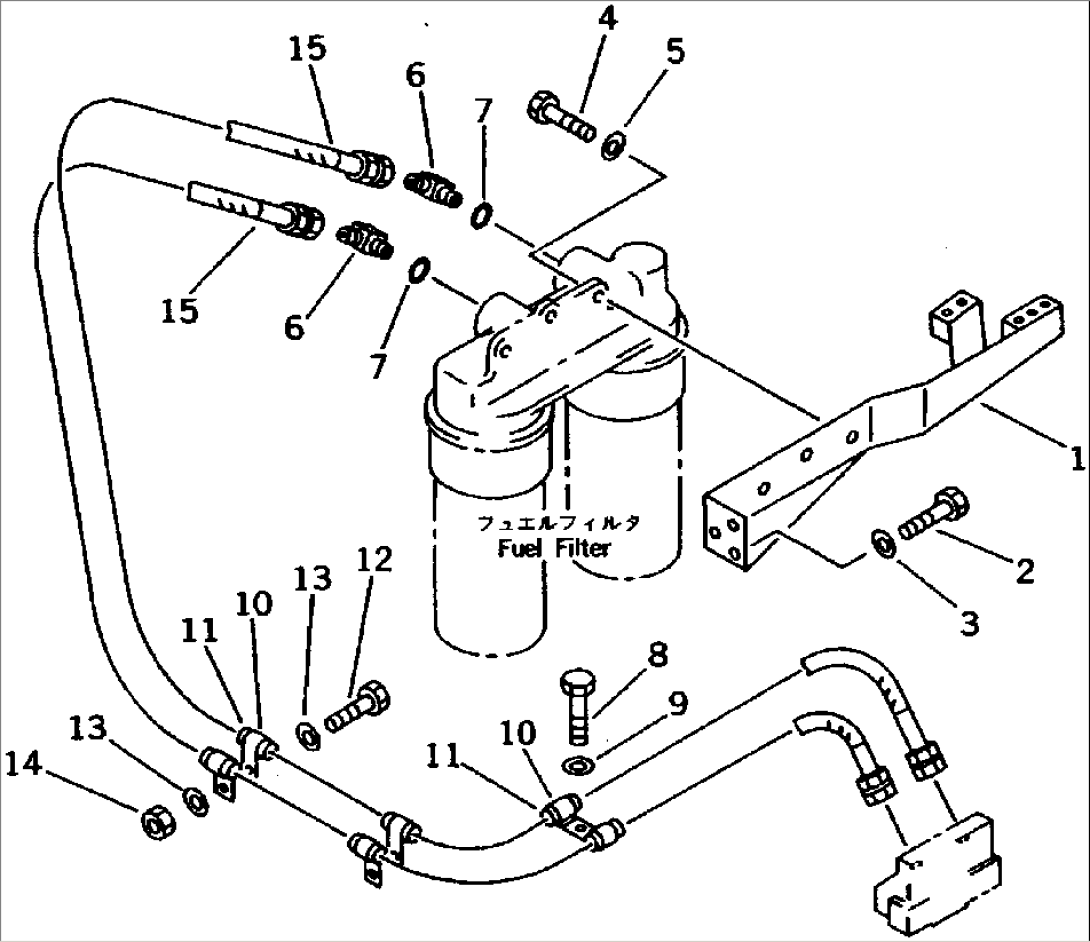

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-44-67481 | BRACKET | 1001- | |
| 2 | 01010-51230 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 01010-51240 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 07235-10522 | ELBOW | 1001- | |
| 7 | 07002-02434 | O-RING | 1001- | |
| 8 | 01010-51225 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 285-02-11320 | CLIP | 1001- | |
| 11 | 561-43-41620 | INSULATOR | 1001- | |
| 12 | 01010-51250 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 01580-11210 | NUT | 1001- | |
| 15 | 07102-20516 | HOSE | 1001- |
