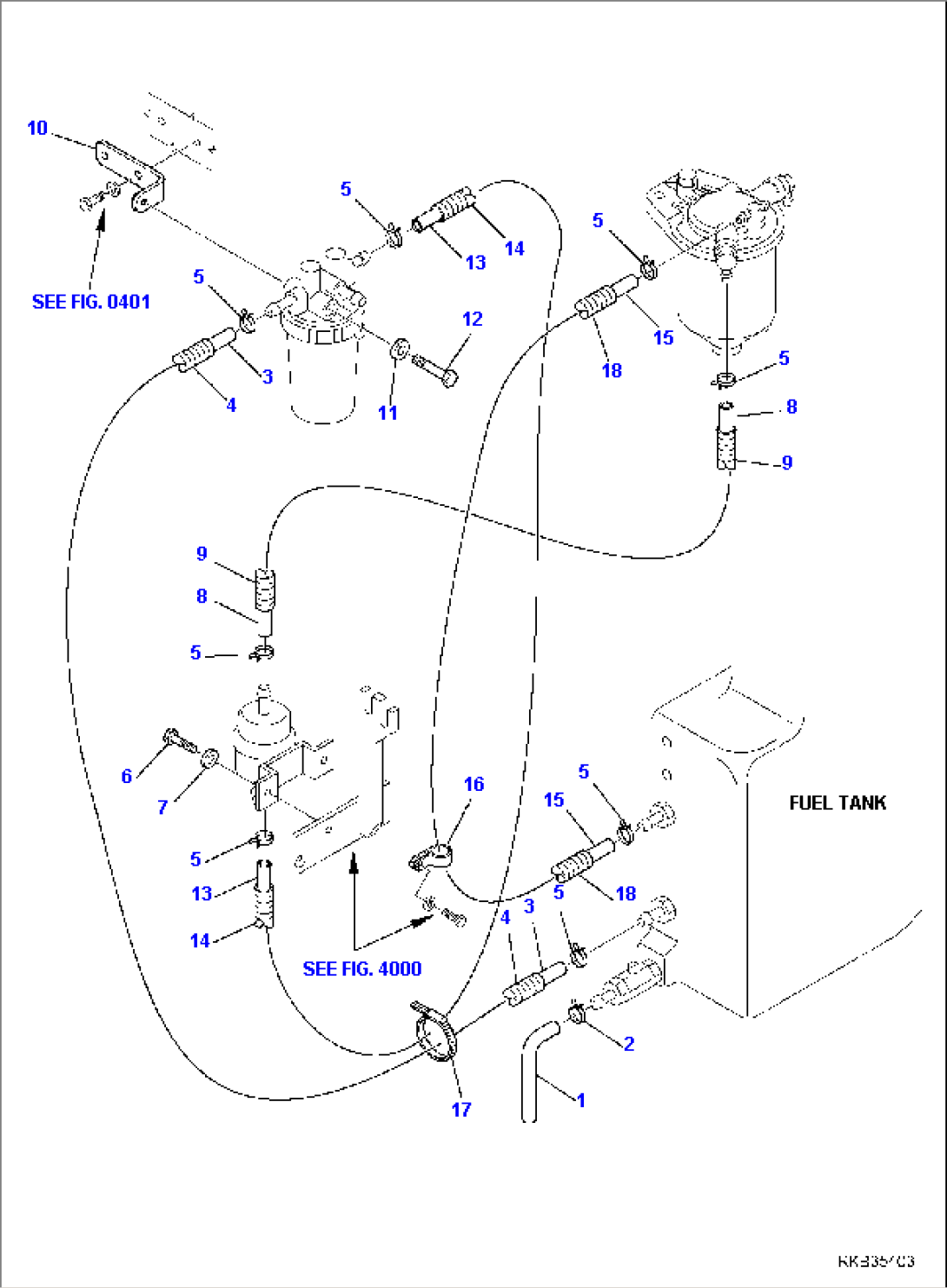

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 37C-04-11291 | HOSE | F00003- | |
| 2 | 37A-09-5M628 | CLAMP | F00003- | |
| 3 | 22L-09-R3K20 | FUEL PIPE | F00003- | |
| 4 | 37A-04-11440 | PROTECTION | F00003- | |
| 5 | 07285-00115 | CLAMP | F00003- | |
| 6 | 01010-80612 | BOLT | F00003- | |
| 7 | 01602-20619 | WASHER, SPRING | F00003- | |
| 8 | 22L-09-R3A80 | PIPE, FUEL | F00003- | |
| 9 | 22L-09-R3K30 | PROTECTION | F00003- | |
| 10 | 37C-01-11180 | SUPPORT | F00003- | |
| 11 | 01643-10823 | WASHER | F00003- | |
| 12 | 01010-80870 | BOLT | F00003- | |
| 13 | 37A-04-11230 | PIPE, FUEL | F00003- | |
| 14 | 22L-09-R3J60 | PROTECTION | F00003- | |
| 15 | 22L-09-R3A90 | FUEL PIPE | F00003- | |
| 16 | 04434-51912 | CLAMP | F00003- | |
| 17 | 21D-06-13220 | BAND | F00003- | |
| 18 | 22L-09-R3J60 | PROTECTION | F00003- | |
| SEE FIG. 0131 | ||||
| SEE FIG. 4000 |
