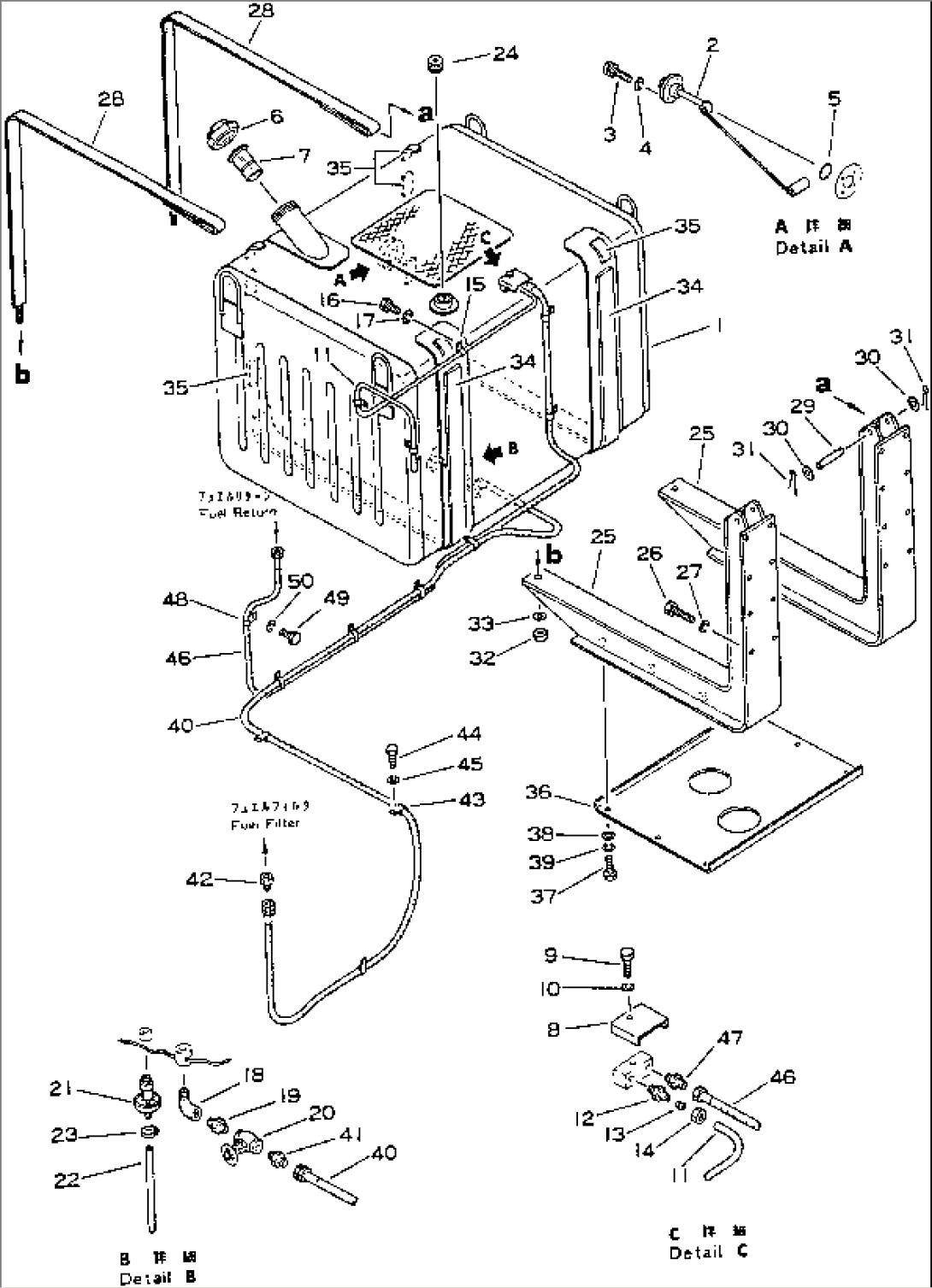

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-04-11001 | FUEL PIPING ASS'Y | 1002- | ||
| 1 | 561-04-11111 | TANK | 1002- | |
| 2 | 561-04-11150 | GAUGE,FUEL | 1002- | |
| 3 | 01252-40620 | BOLT | 1002- | |
| 4 | 01601-20619 | WASHER | 1002- | |
| 5 | 07000-03045 | O-RING | 1002- | |
| 6 | 07050-21200 | CAP | 1002- | |
| 7 | 07056-18416 | STRAINER | 1002- | |
| 8 | 566-04-13271 | COVER | 1002- | |
| 9 | 01010-51020 | BOLT | 1002- | |
| 10 | 01602-21030 | WASHER | 1002- | |
| 11 | 07822-00814 | TUBE | 1002- | |
| 12 | 07836-00817 | CONNECTOR | 1002- | |
| 13 | 07831-00813 | SLEEVE | 1002- | |
| 14 | 07832-00817 | NUT | 1002- | |
| 15 | 08036-11214 | CLIP | 1002- | |
| 16 | 01010-51016 | BOLT | 1002- | |
| 17 | 01602-21030 | WASHER | 1002- | |
| 18 | 07323-30400 | ELBOW | 1002- | |
| 19 | 07325-10400 | NIPPLE | 1002- | |
| 20 | 07700-20504 | VALVE | 1002- | |
| 21 | 565-44-12700 | VALVE ASS'Y | 1002- | |
| 22 | 07270-01015 | TUBE | 1002- | |
| 23 | 07281-10167 | CLAMP | 1002- | |
| 24 | 566-98-15120 | PLUG | 1002- | |
| 25 | 561-04-11121 | HANGER | 1002- | |
| 26 | 01010-51635 | BOLT | 1002- | |
| 27 | 01602-21648 | WASHER | 1002- | |
| 28 | 561-04-11141 | BAND | 1002- | |
| 29 | 566-04-13130 | PIN | 1002- | |
| 30 | 01641-21423 | WASHER | 1002- | |
| 31 | 04050-03025 | PIN | 1002- | |
| 32 | 01580-11613 | NUT | 1002- | |
| 33 | 01643-21645 | WASHER | 1002- | |
| 34 | 568-04-11170 | PAD | 1002- | |
| 35 | 566-04-13150 | PAD | 1002- | |
| 36 | 566-04-13315 | COVER | 1002- | |
| 37 | 01010-51225 | BOLT | 1002- | |
| 38 | 01643-21232 | WASHER | 1002- | |
| 39 | 01602-21236 | WASHER | 1002- | |
| 40 | 07102-20545 | HOSE | 1002- | |
| 41 | 07238-00522 | CONNECTOR | 1002- | |
| 42 | 562-04-12110 | ADAPTER | 1002- | |
| 43 | 08036-02514 | CLIP | 1002- | |
| 44 | 01010-51016 | BOLT | 1002- | |
| 45 | 01602-21030 | WASHER | 1002- | |
| 46 | 02750-23395 | HOSE | 1002- | |
| 47 | 566-04-11280 | NIPPLE | 1002- | |
| 48 | 08036-01814 | CLIP | 1002- | |
| 49 | 01010-51016 | BOLT | 1002- | |
| 50 | 01602-21030 | WASHER | 1002- |
