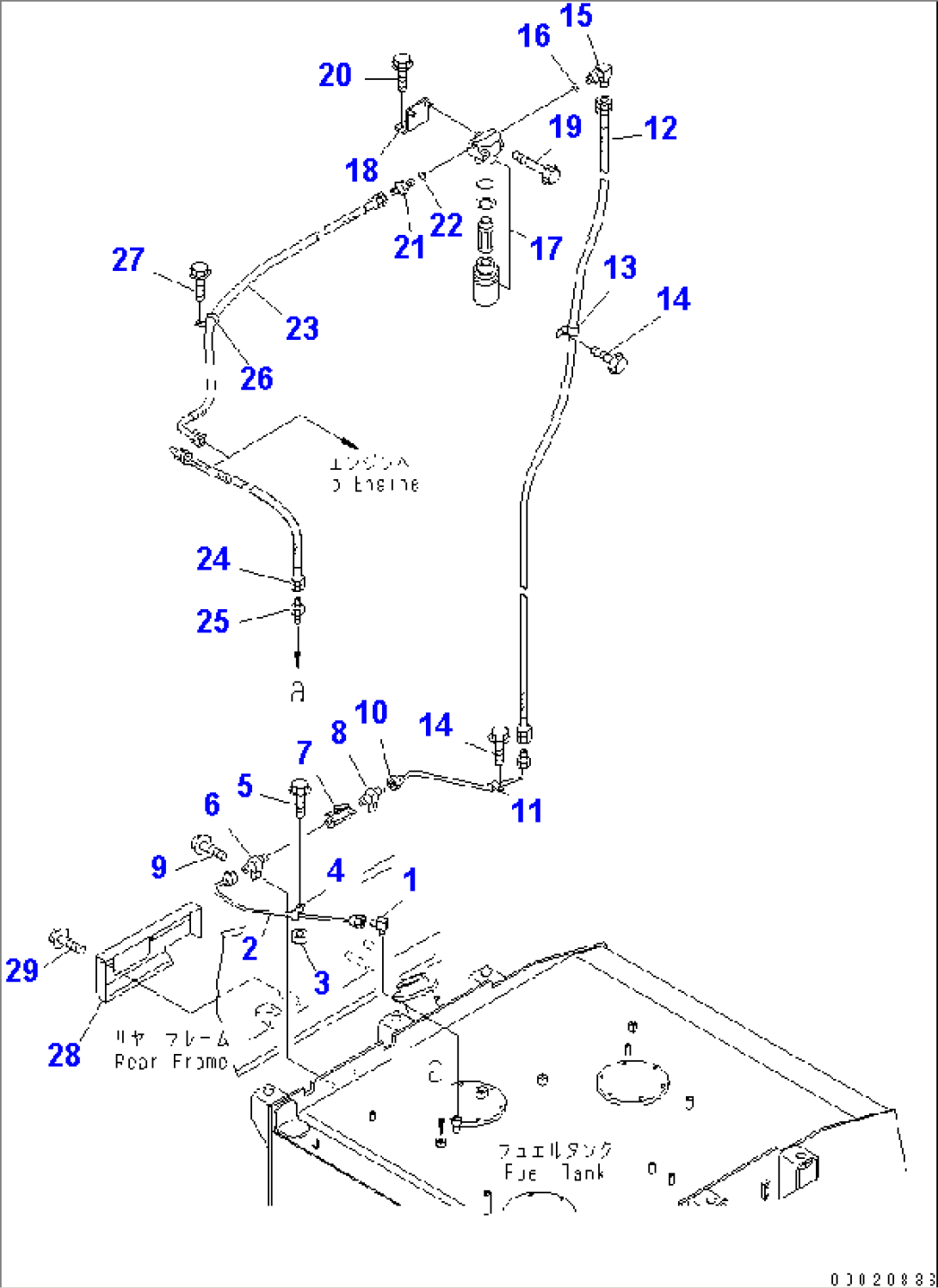

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-12530 | ELBOW | 52001- | |
| 2 | 427-04-A1150 | TUBE | 52001- | |
| 3 | 424-54-14310 | SPACER | 52001- | |
| 4 | 04434-51510 | CLIP | 52001- | |
| 5 | 01435-01020 | BOLT | 52001- | |
| 6 | 427-04-11640 | CONNECTOR | 52001- | |
| 7 | 427-04-11490 | VALVE | 52001- | |
| 8 | 427-04-11650 | CONNECTOR | 52001- | |
| 9 | 01435-01020 | BOLT | 52001- | |
| 10 | 427-04-11621 | TUBE | 52001- | |
| 11 | 04434-51510 | CLIP | 52001- | |
| 12 | 07102-20507 | HOSE | 52001- | |
| 13 | 04434-53211 | CLIP | 52001- | |
| 14 | 01435-01020 | BOLT | 52001- | |
| 15 | 427-09-11310 | ELBOW | 52001- | |
| 16 | 07002-12034 | O-RING | 52001- | |
| 17 | 425-15-11750 | FILTER ASS'Y | 52001- | |
| 18 | 427-04-11250 | BRACKET | 52001- | |
| 19 | 01435-00860 | BOLT | 52001- | |
| 20 | 01435-01230 | BOLT | 52001- | |
| 21 | 427-04-A1250 | CONNECTOR | 52001- | |
| 22 | 07002-12034 | O-RING | 52001- | |
| 23 | 427-04-21920 | HOSE | 52001- | |
| 24 | 427-04-21930 | HOSE | 52001- | |
| 25 | 427-04-21940 | ADAPTOR | 52001- | |
| 26 | 04434-53211 | CLIP | 52001- | |
| 27 | 01435-01020 | BOLT | 52001- | |
| 28 | 427-04-11660 | COVER | 52001- | |
| 29 | 01435-01020 | BOLT | 52001- |
