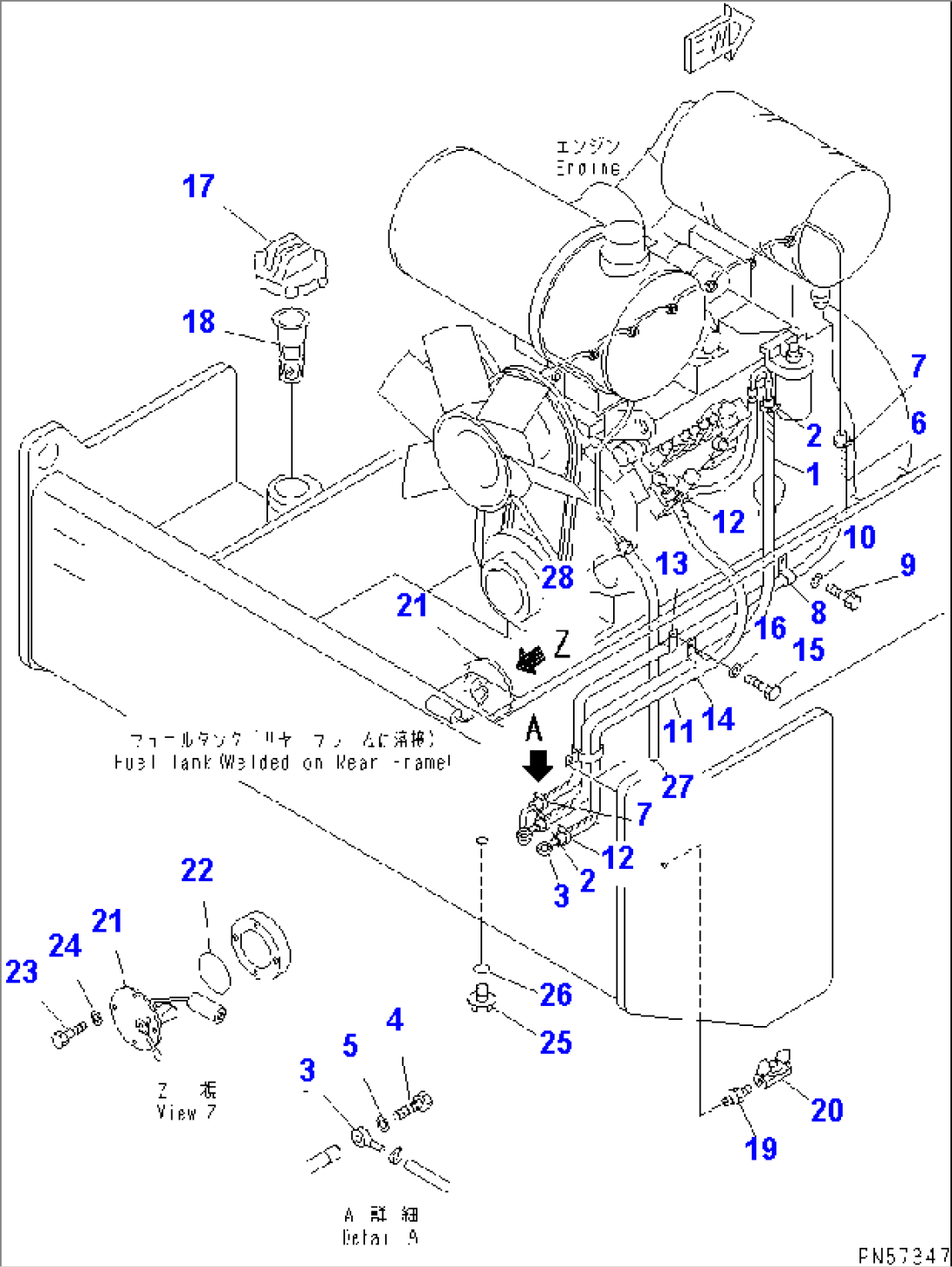

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07288-01011 | HOSE | 21001- | |
| 2 | 07281-00197 | CLAMP | 21001- | |
| 3 | 238-04-12110 | TUBE | 21001- | |
| 4 | 07206-31014 | BOLT,JOINT | 21001- | |
| 5 | 07005-01412 | GASKET | 21001- | |
| 6 | 07288-00515 | HOSE,SPILL | 21001- | |
| 7 | 07281-00137 | CLAMP | 21001- | |
| 8 | 04435-51710 | CLIP | 21001- | |
| 9 | 01010-81016 | BOLT | 21001- | |
| 10 | 01643-31032 | WASHER | 21001- | |
| 11 | 07288-01013 | HOSE | 21001- | |
| 12 | 07281-00197 | CLAMP | 21001- | |
| 13 | 04434-51210 | CLIP | 21001- | |
| 14 | 04435-51710 | CLIP | 21001- | |
| 15 | 01010-81016 | BOLT | 21001- | |
| 16 | 01643-31032 | WASHER | 21001- | |
| 17 | 07050-41200 | CAP | 21001- | |
| 07050-21202 | GASKET | 21001- | ||
| 18 | 07056-18416 | STRAINER | 21001- | |
| 19 | 07325-10200 | NIPPLE | 21001- | |
| 20 | 363-04-11130 | VALVE | 21001- | |
| 21 | 7861-92-4810 | SENSOR,FUEL | 21001- | |
| 22 | 07000-12085 | O-RING | 21001- | |
| 23 | 01010-81020 | BOLT | 21001- | |
| 24 | 01643-31032 | WASHER | 21001- | |
| 25 | 07044-12412 | PLUG | 21001- | |
| 26 | 07002-12434 | O-RING | 21001- | |
| 27 | 07260-20936 | HOSE | 21001- | |
| 28 | 07285-00155 | CLIP | 21001- |
