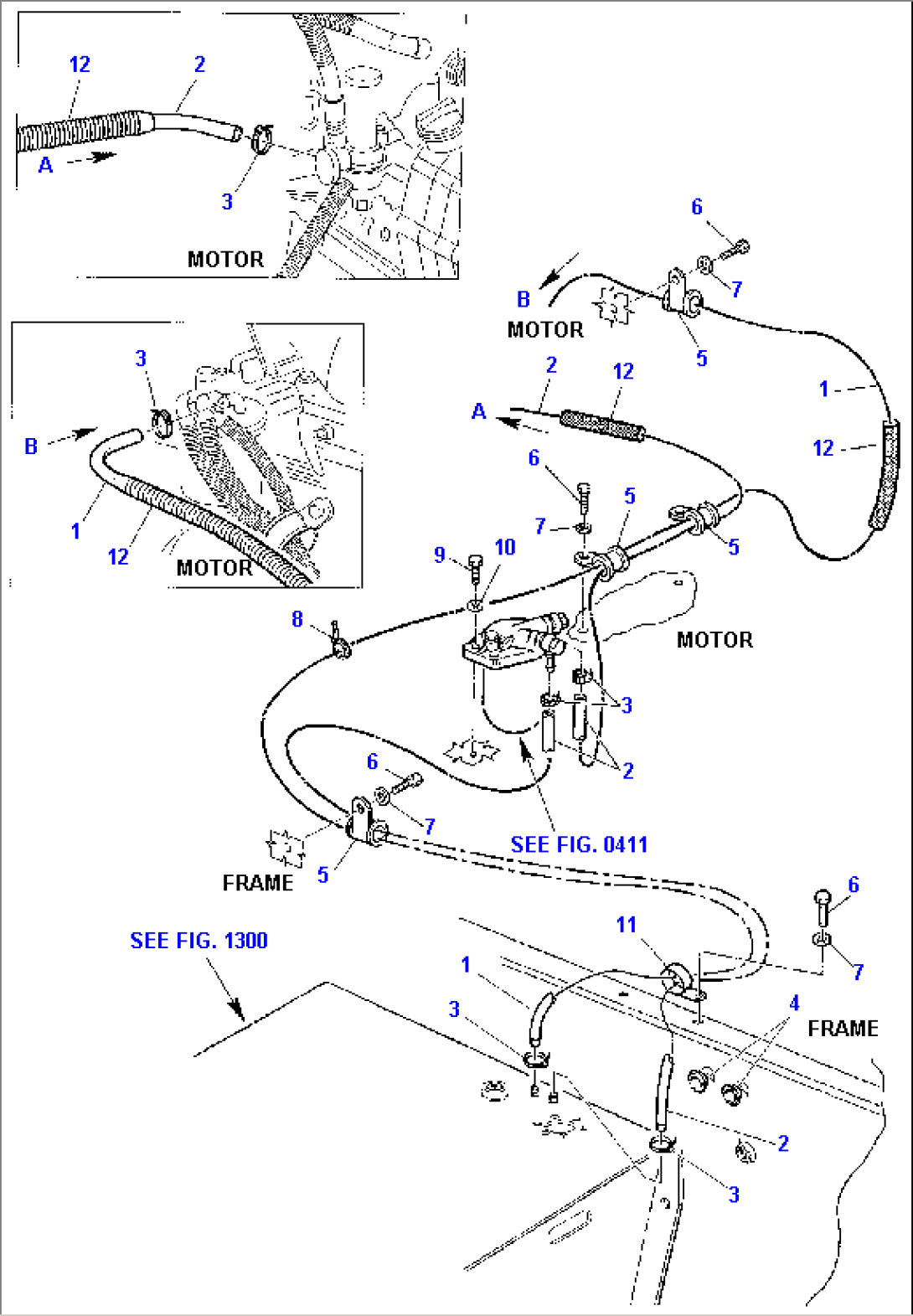

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 853000021 | HOSE | 15050001- | |
| 2 | 853000051 | HOSE | 15050001- | |
| 3 | 802660002 | CLAMP | 15050001- | |
| 4 | 885411422 | RUBBER | 15050001- | |
| 5 | 802660028 | COLLAR | 15050001- | |
| 6 | 801015108 | BOLT | 15050001- | |
| 7 | 802170002 | WASHER | 15050001- | |
| 8 | 885180012 | CLAMP | 15050001- | |
| 9 | 801015088 | BOLT | 15050001- | |
| 10 | 802170001 | WASHER | 15050001- | |
| 11 | 802660036 | COLLAR | 15050001- | |
| 12 | 885220017 | PROTECTION | 15050001- | |
| SEE FIG. 0411 | ||||
| SEE FIG. 1300 |
