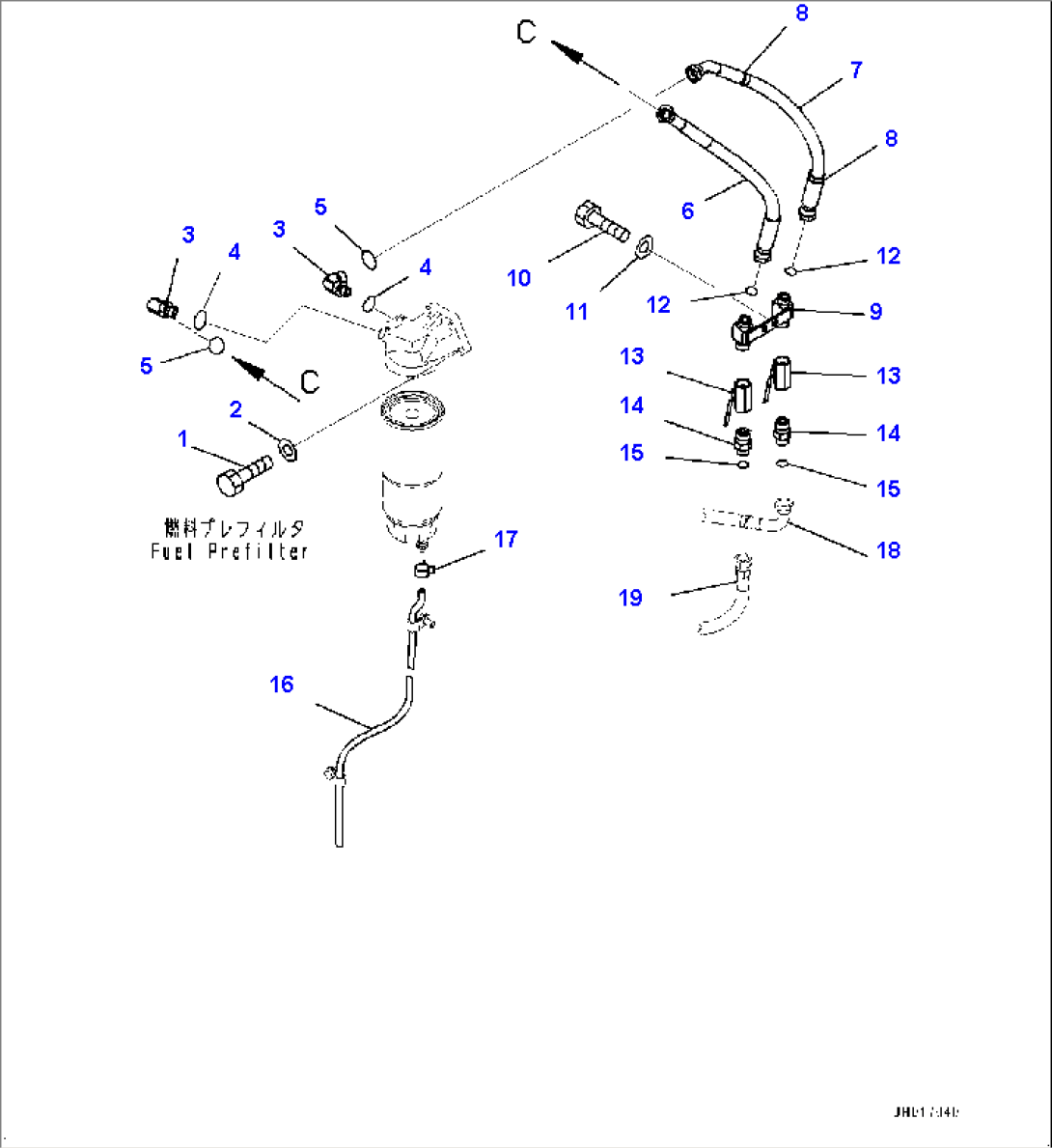

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81040 | Bolt | 70001- | |
| 2 | 01643-31032 | Washer | 70001- | |
| 3 | 02782-10516 | Elbow | 70001- | |
| 4 | 07002-12034 | O-ring | 70001- | |
| 5 | 02896-11015 | O-ring | 70001- | |
| 6 | 02764-00505 | Hose | 70001- | |
| 7 | 209-04-42270 | Hose | 70001- | |
| 8 | 20Y-62-22790 | Band, Red | 70001- | |
| 9 | 209-04-41670 | Bracket | 70001- | |
| 10 | 01010-81225 | Bolt | 70001- | |
| 11 | 01643-31232 | Washer | 70001- | |
| 12 | 02896-11015 | O-ring | 70001- | |
| 13 | 07700-40661 | Valve, Fuel Drain | 70001- | |
| 14 | 209-04-42150 | Union | 70001- | |
| 15 | 02896-11015 | O-ring | 70001- | |
| 16 | 07287-00815 | Hose | 70001- | |
| 17 | 07285-00125 | Clip | 70001- | |
| 18 | (209-04-41621) | Hose Assembly | - | |
| 19 | (209-04-42170) | Hose Assembly | - |
