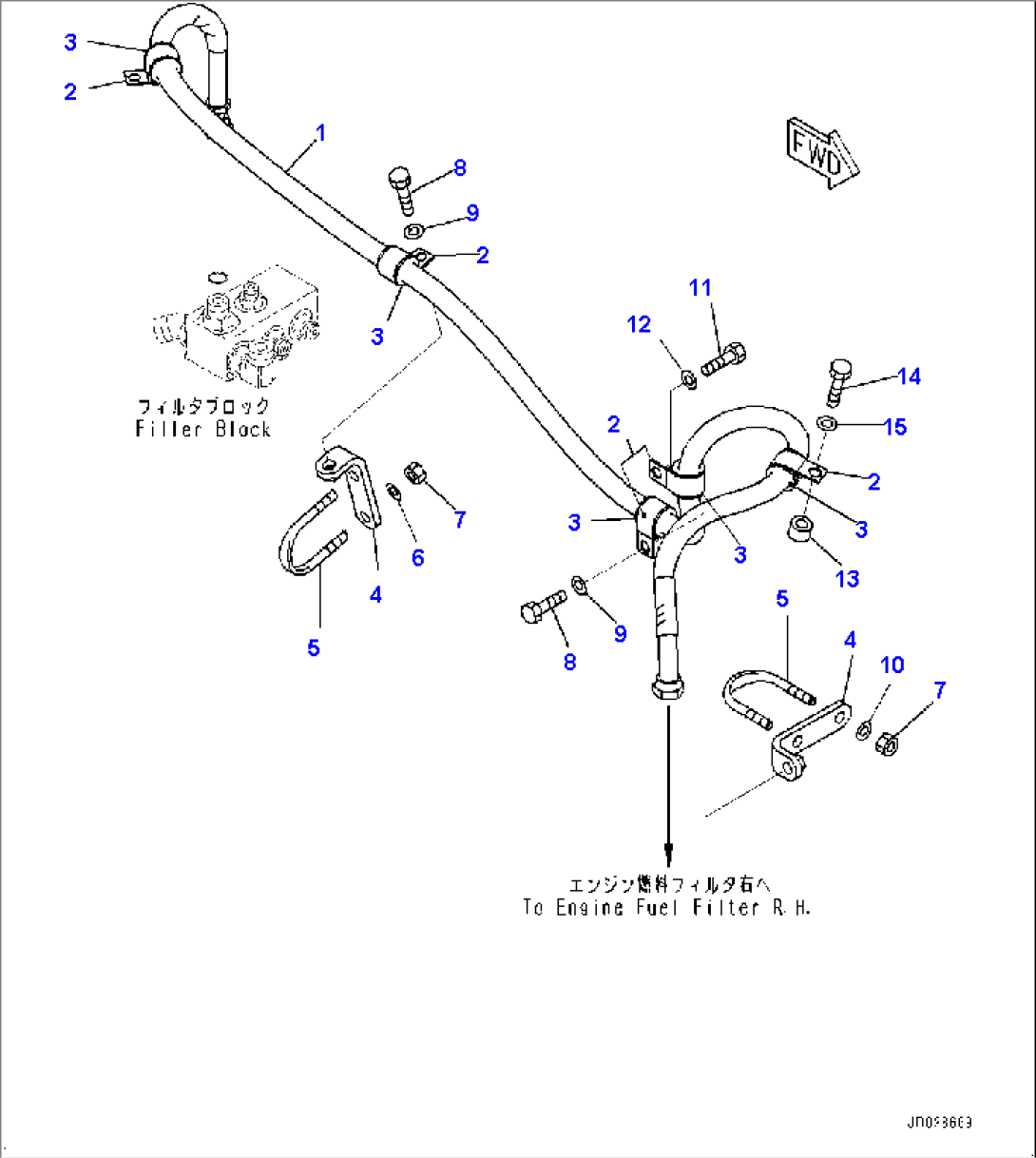

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02764-00522 | Hose, Face Seal Type | 8173- | |
| 2 | 04434-53212 | Clip | 8173- | |
| 3 | 07095-20523 | Cushion | 8173- | |
| 4 | 561-04-82280 | Bracket | 8173- | |
| 5 | 07283-36155 | Clip | 8173- | |
| 6 | 01643-31032 | Washer | 8173- | |
| 7 | 01597-01009 | Nut | 8173- | |
| 8 | 01010-81230 | Bolt | 8173- | |
| 9 | 01643-31232 | Washer | 8173- | |
| 10 | 01643-31032 | Washer | 8173- | |
| 11 | 01010-81225 | Bolt | 8173- | |
| 12 | 01643-31232 | Washer | 8173- | |
| 13 | 144-947-3490 | Spacer | 8173- | |
| 14 | 01010-81245 | Bolt | 8173- | |
| 15 | 01643-31232 | Washer | 8173- |
