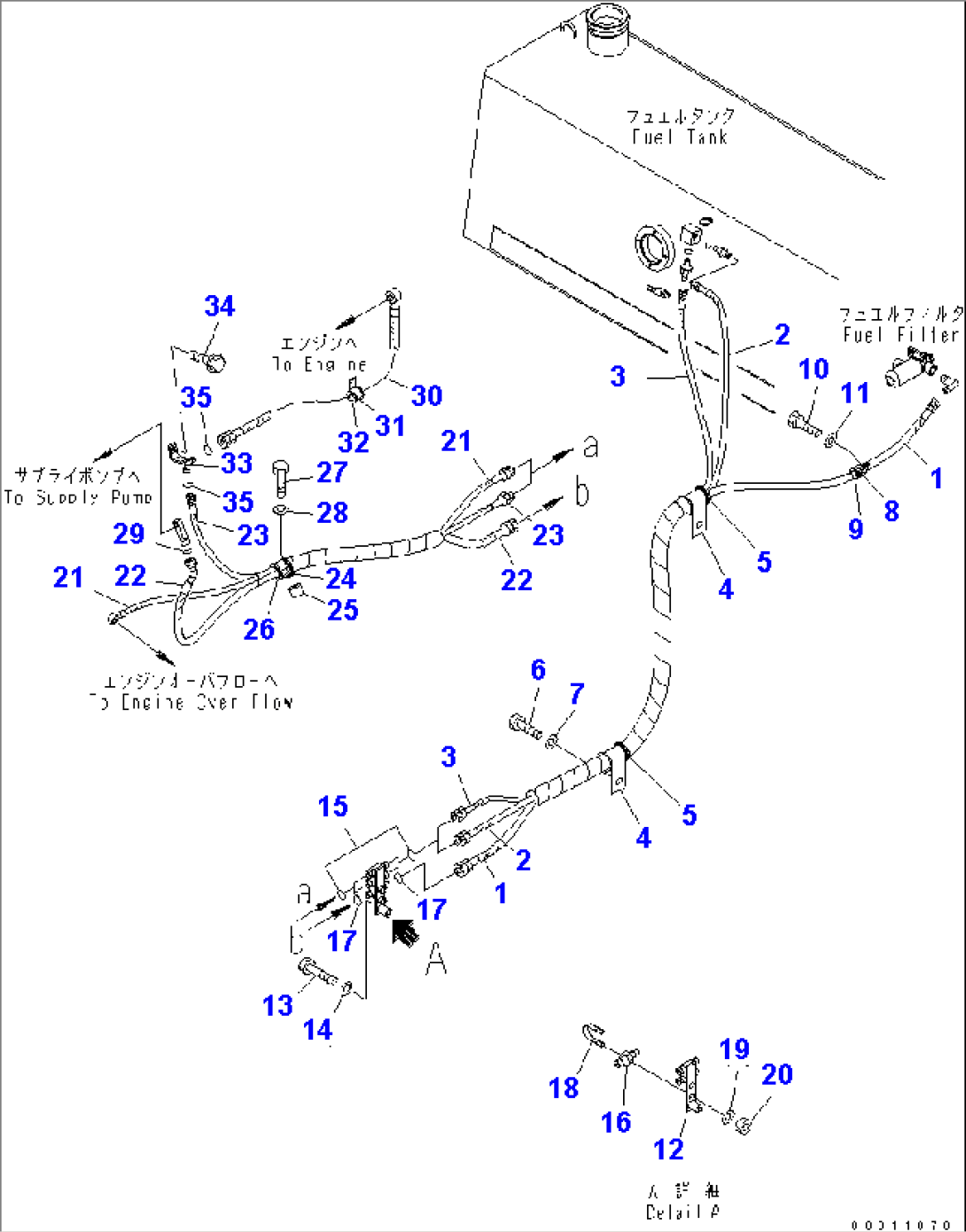

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-04-71430 | HOSE ASS'Y | 1020- | ||
| 1 | 02762-00422 | HOSE | 1020- | |
| 2 | 02762-00320 | HOSE | 1020- | |
| 3 | 02762-00319 | HOSE | 1020- | |
| 4 | 21T-62-76850 | CLIP | 1020- | |
| 5 | 198-04-41210 | CUSHION | 1020- | |
| 6 | 01010-81230 | BOLT | 1020- | |
| 7 | 01643-31232 | WASHER | 1020- | |
| 8 | 04434-52712 | CLIP | 1020- | |
| 9 | 07095-20420 | CUSHION | 1020- | |
| 10 | 01010-81230 | BOLT | 1020- | |
| 11 | 01643-31232 | WASHER | 1020- | |
| 12 | 154-04-71420 | BRACKET | 1020- | |
| 13 | 01010-81260 | BOLT | 1020- | |
| 14 | 01643-31232 | WASHER | 1020- | |
| 15 | 02896-11009 | O-RING | 1020- | |
| 16 | 154-04-71340 | NIPPLE | 1020- | |
| 17 | 02896-11009 | O-RING | 1020- | |
| 18 | 07283-32746 | CLIP | 1020- | |
| 19 | 01643-31032 | WASHER | 1020- | |
| 20 | 01597-01009 | NUT | 1020- | |
| 154-04-71440 | HOSE ASS'Y | 1020- | ||
| 21 | 154-04-71460 | HOSE | 1020- | |
| 22 | 02762-A0411 | HOSE | 1020- | |
| 23 | 02762-A03A9 | HOSE | 1020- | |
| 24 | 154-04-71410 | CLIP | 1020- | |
| 25 | 21W-62-11620 | SPACER | 1020- | |
| 26 | 07095-01453 | CUSHION | 1020- | |
| 27 | 01010-81245 | BOLT | 1020- | |
| 28 | 01643-31232 | WASHER | 1020- | |
| 29 | 02896-11012 | O-RING | 1020- | |
| 30 | 154-04-71450 | HOSE | 1020- | |
| 31 | 04434-53212 | CLIP | 1020- | |
| 32 | 07095-20523 | CUSHION | 1020- | |
| 33 | 154-04-71311 | BRACKET | 1020- | |
| 34 | 01436-01035 | BOLT | 1020- | |
| 35 | 02896-11009 | O-RING | 1020- |
