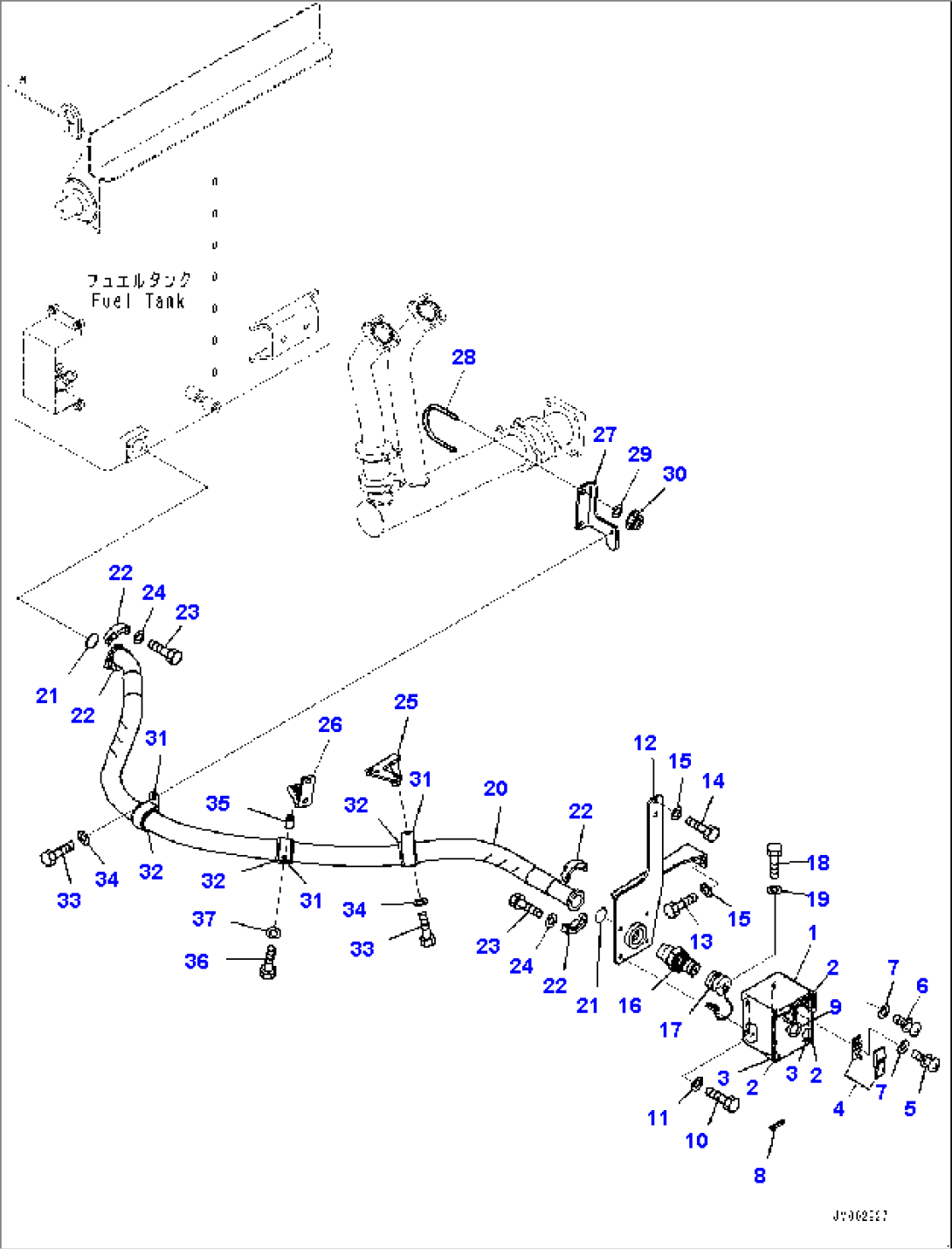

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-98-88102 | Cover Assembly | 8938-@ | ||
| 561-98-88101 | Cover Assembly | 8173-8937 | ||
| 1 | Cover | 8173-@ | ||
| 09455-17019 | Hinge, Welded | 8173-@ | ||
| 2 | 561-98-88120 | Sheet | 8173-@ | |
| 3 | 561-98-88130 | Sheet | 8173-@ | |
| 4 | 421-09-12322 | Holder | 8173-@ | |
| 5 | 01023-60412 | Screw | 8173-@ | |
| 6 | 01023-60414 | Screw | 8173-@ | |
| 7 | 01641-20405 | Washer | 8173-@ | |
| 8 | 561-89-87450 | Sheet | 8938-@ | |
| 9 | 09669-0000E | Plate, Symbol, Fuel Filler | 8938-@ | |
| 10 | 01010-81025 | Bolt | 8173-@ | |
| 11 | 01643-31032 | Washer | 8173-@ | |
| 12 | 561-98-88143 | Bracket | 9140-@ | |
| 561-98-88141 | Bracket | 8173-9139 | ||
| 13 | 01010-81225 | Bolt | 8173-@ | |
| 14 | 01010-81235 | Bolt | 8173-@ | |
| 15 | 01643-31232 | Washer | 8173-@ | |
| 16 | 566-98-15200 | Nipple Assembly | 9572-9962 | |
| 16 | 561-98-82110 | Nipple Assembly | 8173-9571 | |
| 17 | 566-98-15300 | Cap Assembly | 8173-9962 | |
| 18 | 01010-80816 | Bolt | 8173-9962 | |
| 19 | 01643-30823 | Washer | 8173-9962 | |
| 20 | 561-98-88181 | Hose | 8173-@ | |
| 21 | 07000-12060 | O-ring | 9140-@ | |
| 22 | 07371-22076 | Flange, Split | 8173-@ | |
| 23 | 07372-21240 | Bolt | 8173-@ | |
| 24 | 01643-51232 | Washer | 8173-@ | |
| 25 | 561-98-88190 | Bracket | 8173-@ | |
| 26 | 561-98-88230 | Bracket | 8173-@ | |
| 27 | 561-98-88220 | Bracket | 8173-@ | |
| 28 | 07283-31185 | Clip | 8173-@ | |
| 29 | 01643-31232 | Washer | 8173-@ | |
| 30 | 01597-01211 | Nut | 8173-@ | |
| 31 | 281-03-11710 | Clip | 8173-@ | |
| 32 | 569-61-65680 | Insulator | 8173-@ | |
| 33 | 01010-81230 | Bolt | 8173-@ | |
| 34 | 01643-31232 | Washer | 8173-@ | |
| 35 | 205-03-71330 | Collar | 8173-@ | |
| 36 | 01010-81275 | Bolt | 8173-@ | |
| 37 | 01643-31232 | Washer | 8173-@ |
