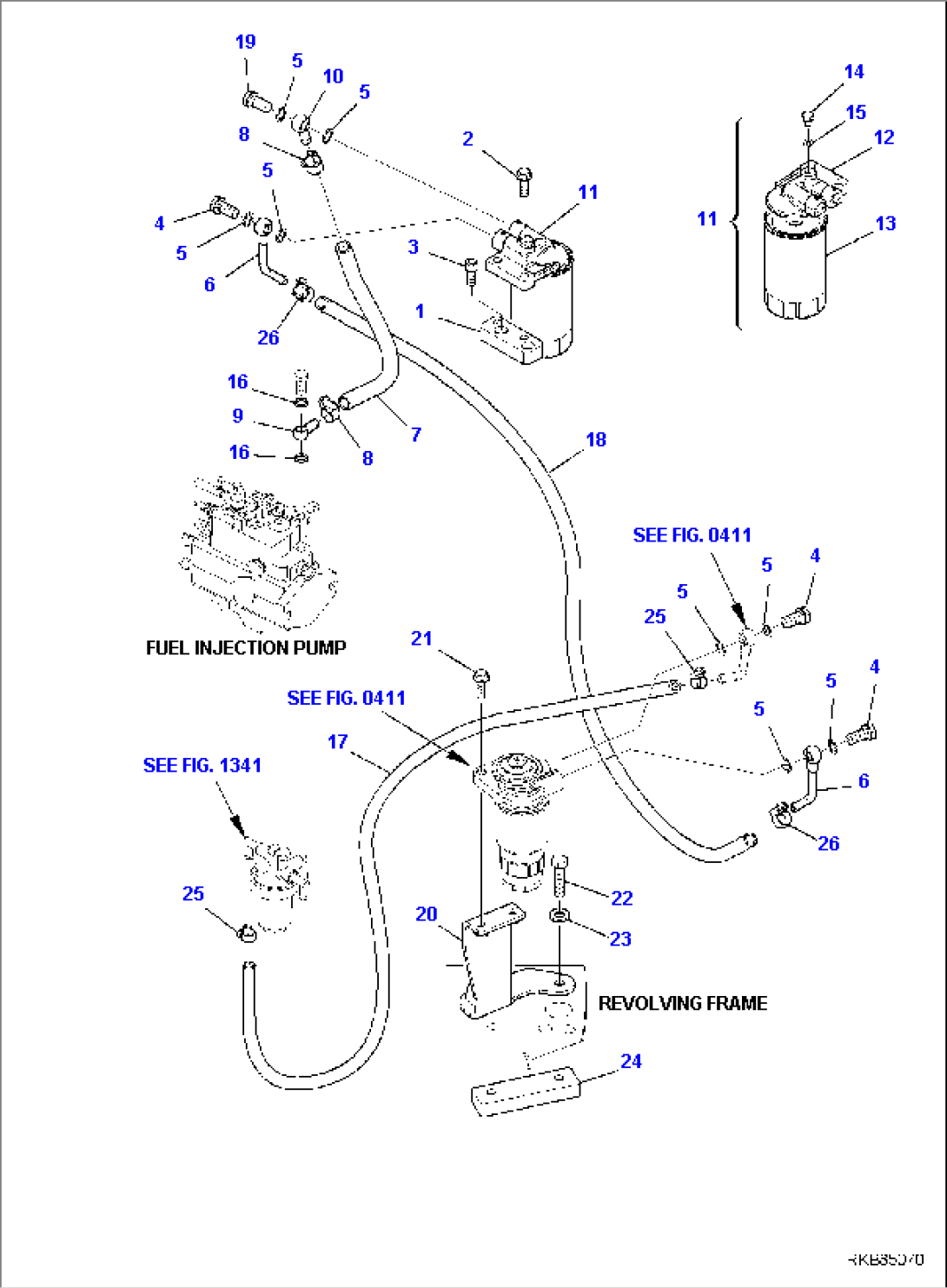

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21W-09-R7330 | PLATE | F00003- | |
| 2 | 01435-01030 | BOLT | F00003- | |
| 3 | 01252-71020 | BOLT | F00003- | |
| 4 | 6204-73-5710 | JOINT | F00003- | |
| 5 | 07005-01412 | SEAL | F00003- | |
| 6 | 6205-71-5740 | PIPE | F00003- | |
| 7 | 07288-21204 | HOSE | F00003- | |
| 8 | 07281-00197 | CLAMP | F00003- | |
| 9 | 6205-71-5750 | JOINT | F00003- | |
| 10 | 6205-71-5760 | JOINT | F00003- | |
| 11 | 6271-71-6500 | FILTER, ASSEMBLY FUEL | F00003- | |
| 12 | 6271-71-6510 | HEAD | F00003- | |
| 13 | 600-311-3530 | CARTRIDGE | F00003- | |
| 14 | 600-311-6720 | PLUG | F00003- | |
| 15 | 07005-00812 | GASKET | F00003- | |
| 16 | 07005-01212 | GASKET | F00003- | |
| 17 | 21W-04-R1230 | HOSE, ASSEMBLY | F00003- | |
| 18 | 21W-09-R7360 | HOSE | F00003- | |
| 19 | 07206-31014 | JOINT | F00003- | |
| 20 | 21W-09-R7321 | BRACKET | F00003- | |
| 21 | 01435-01030 | BOLT | F00003- | |
| 22 | 01016-51250 | BOLT | F00003- | |
| 23 | 01643-11232 | WASHER | F00003- | |
| 24 | 21W-09-R7310 | PLATE | F00003- | |
| 25 | 07281-00167 | CLAMP | F00003- | |
| 26 | 07281-00197 | CLAMP | F00003- | |
| SEE FIG. 0411 | ||||
| SEE FIG. 1341 |
