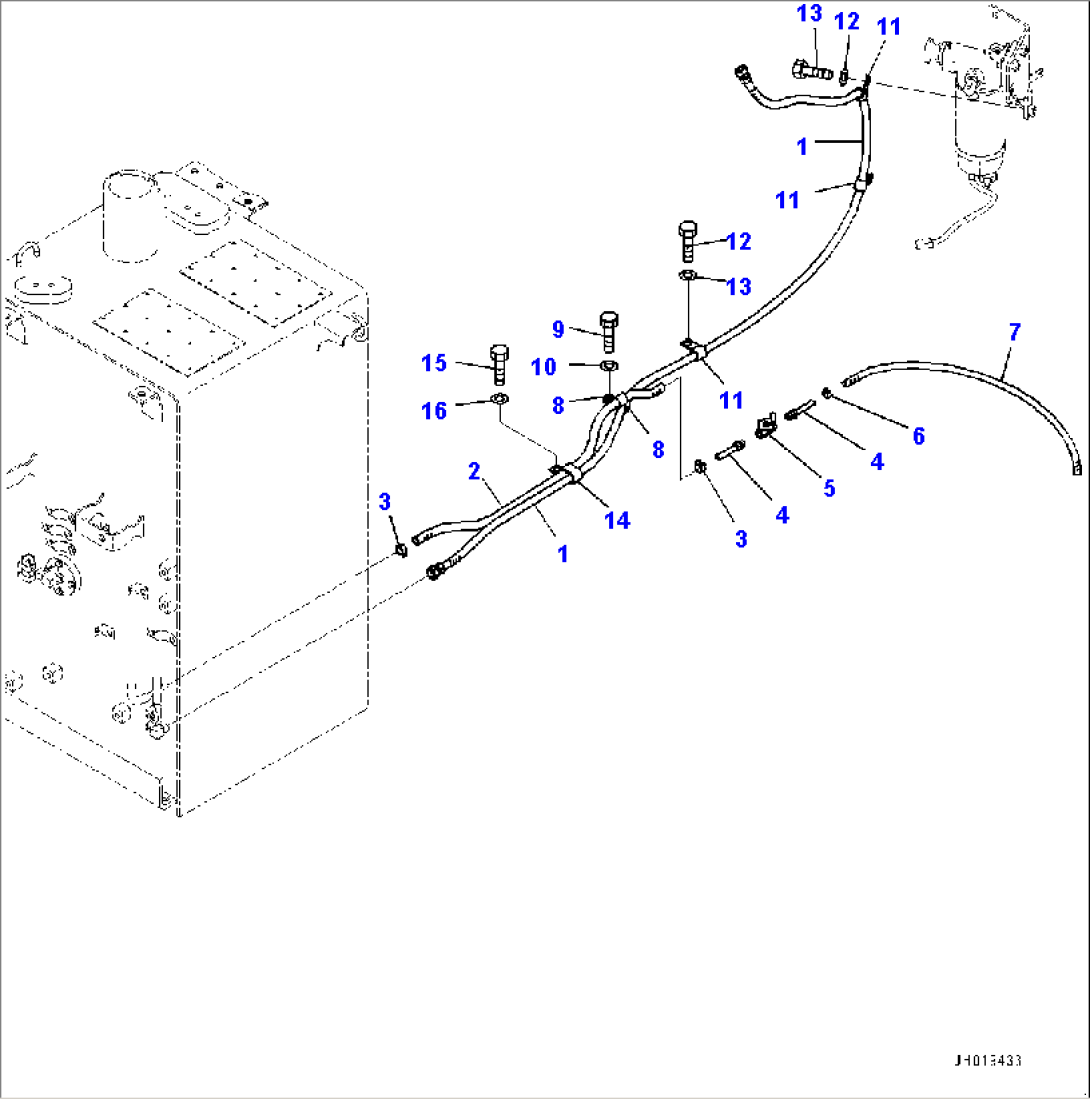

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-04-45290 | Hose | 35001- | |
| 2 | 2A5-04-25250 | Hose | 35001- | |
| 3 | 11Y-09-11140 | Clip | 35001- | |
| 4 | 20Y-04-31170 | Nipple | 35001- | |
| 5 | 07700-50240 | Valve | 35001- | |
| 6 | 07285-00115 | Clip | 35001- | |
| 7 | 07270-01060 | Tube | 35001- | |
| 8 | 04434-51612 | Clip | 35001- | |
| 9 | 01010-81225 | Bolt | 35001- | |
| 10 | 01643-31232 | Washer | 35001- | |
| 11 | 04434-51612 | Clip | 35001- | |
| 12 | 01010-81225 | Bolt | 35001- | |
| 13 | 01643-31232 | Washer | 35001- | |
| 14 | 04435-51812 | Clip | 35001- | |
| 15 | 01010-81225 | Bolt | 35001- | |
| 16 | 01643-31232 | Washer | 35001- |
