| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 281-01-17790 | Seat | 8173- | |
| 2 | 04434-53412 | Clip | 8173- | |
| 3 | 07095-20627 | Cushion | 8173- | |
| 4 | 01010-81290 | Bolt | 8173- | |
| 5 | 01643-31232 | Washer | 8173- | |
| 6 | (561-84-81410) | Bracket | - | |
| 7 | (561-01-83214) | Cover | - |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 8832 30000 (for kal)
- Fuel system
- Fuel piping, water separator to filter r.h. (#8173 )
Поиск по каталогу

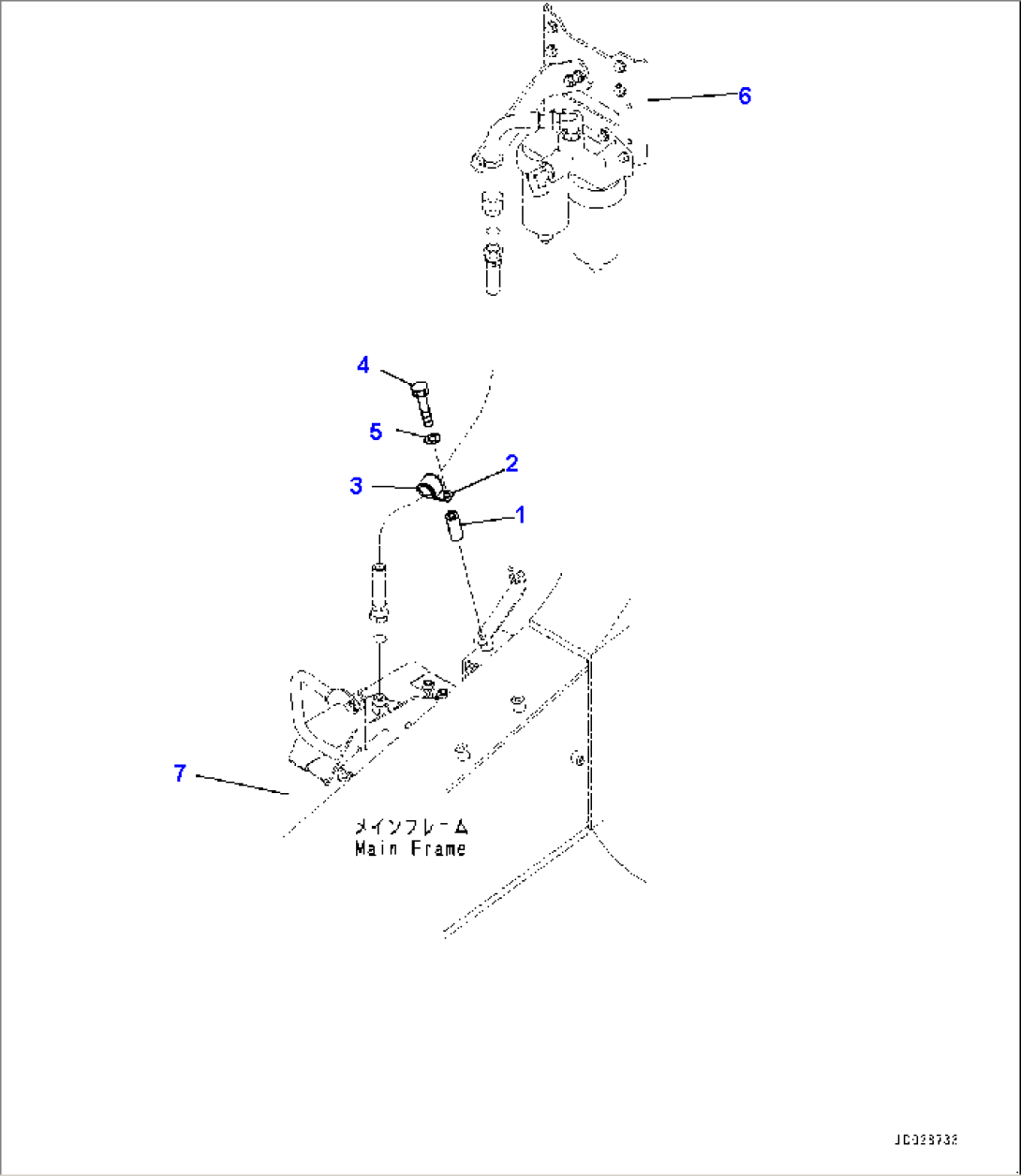

Fuel Piping, Water Separator to Filter R.H. (#8173-)
