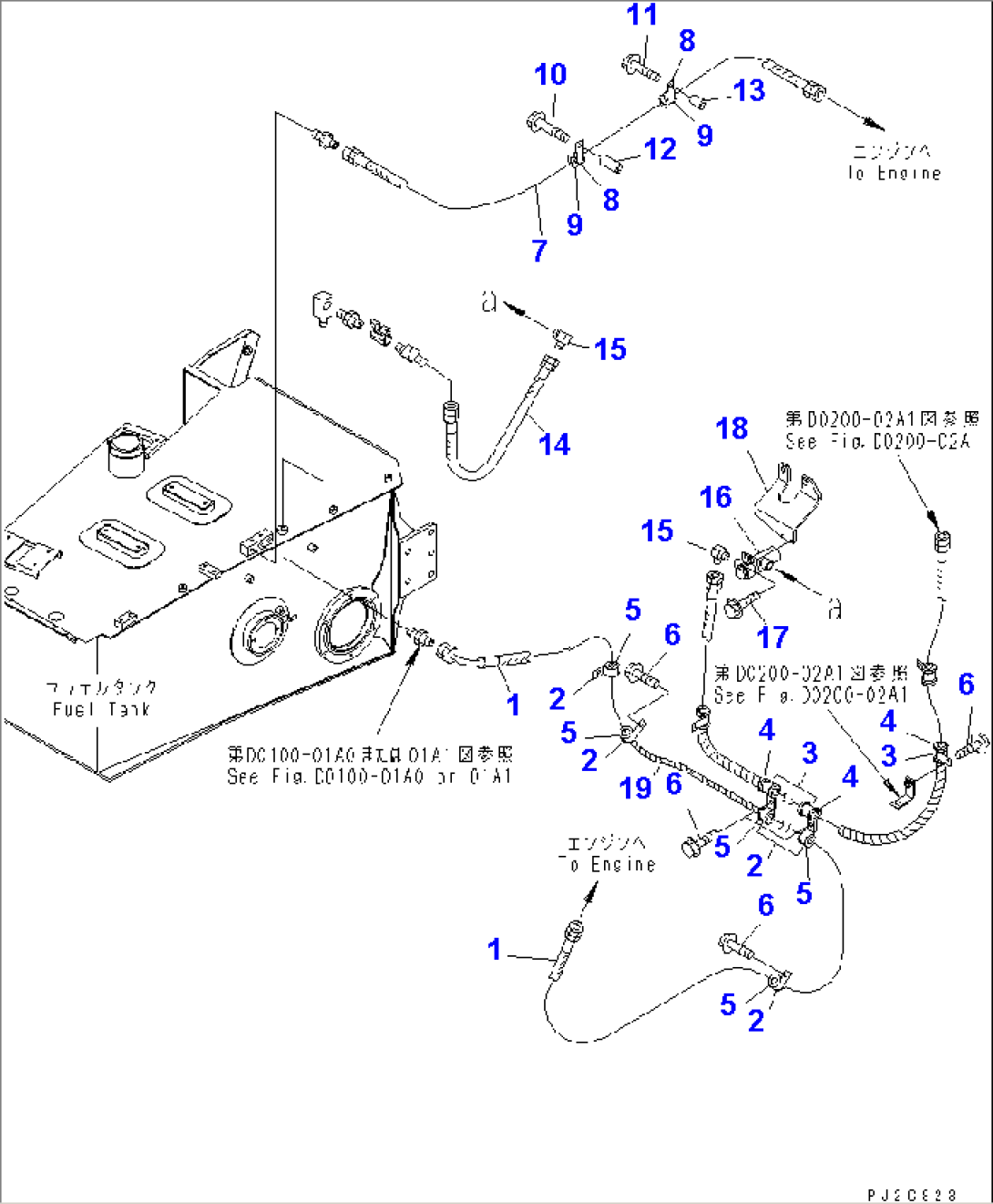

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07623-00323 | HOSE | 1001- | |
| 2 | 04434-52711 | CLIP | 1001- | |
| 3 | 04434-52511 | CLIP | 1001- | |
| 4 | 566-06-41290 | INSULATOR | 1001- | |
| 5 | 581-35-23540 | INSULATOR | 1001- | |
| 6 | 01435-01016 | BOLT | 1001- | |
| 7 | 07102-20315 | HOSE | 1001- | |
| 8 | 04434-52711 | CLIP | 1001- | |
| 9 | 581-35-23540 | INSULATOR | 1001- | |
| 10 | 01435-01065 | BOLT | 1001- | |
| 11 | 01435-01040 | BOLT | 1001- | |
| 12 | 22T-61-11370 | SPACER | 1001- | |
| 13 | 22T-56-23290 | SPACER | 1001- | |
| 14 | 07621-00405 | HOSE | 1001- | |
| 15 | 566-35-14410 | ELBOW | 1001- | |
| 16 | 07058-20000 | FILTER ASS'Y | 1001- | |
| 17 | 01435-00825 | BOLT | 1001- | |
| 18 | 56B-04-11181 | BRACKET | 1001- | |
| 19 | 08210-01805 | SPIRAL TUBE | 1001- |
