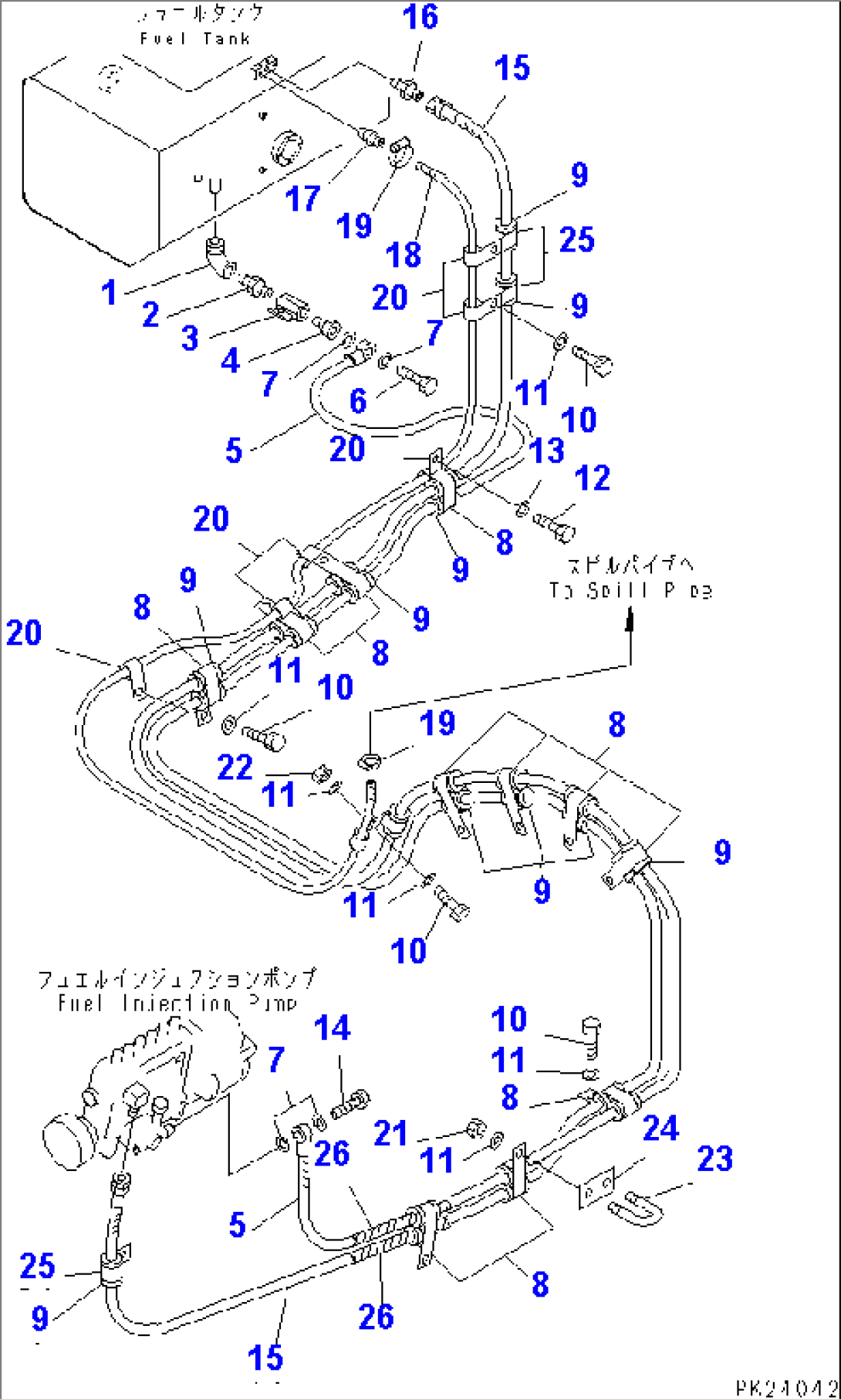

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07323-30400 | ELBOW | 1001-1999 | |
| 2 | 07325-10400 | NIPPLE | 1001-1999 | |
| 3 | 07700-50455 | VALVE | 1001-1999 | |
| 4 | 569-04-31120 | NIPPLE | 1001-1999 | |
| 5 | 569-04-31140 | HOSE | 1001-1999 | |
| 6 | 07206-31014 | BOLT,JOINT | 1001-1999 | |
| 7 | 07005-01412 | SEAL, WASHER | 1001-1999 | |
| 8 | 391-62-19250 | CLIP | 1001-1999 | |
| 9 | 566-06-41290 | INSULATOR | 1001-@ | |
| 10 | 01010-81020 | BOLT | 1001-1999 | |
| 11 | 01643-31032 | WASHER | 1001-1999 | |
| 12 | 01010-81220 | BOLT | 1001-1999 | |
| 13 | 01643-31232 | WASHER | 1001-1999 | |
| 14 | 07206-31014 | BOLT,JOINT | 1001-1999 | |
| 15 | 07102-20344 | HOSE | 1001-1999 | |
| 16 | 07238-10315 | CONNECTOR | 1001-@ | |
| 17 | 07209-01040 | NIPPLE | 1001-1999 | |
| 18 | 07270-40424 | TUBE | 1001-1999 | |
| 19 | 07280-00910 | CLAMP | 1001-1999 | |
| 20 | 04434-50810 | CLIP | 1001-1999 | |
| 21 | 01597-01009 | NUT | .-@ | |
| 21 | 01599-01011 | NUT | 1001-. | |
| 22 | 01580-11008 | NUT | 1001-@ | |
| 23 | 07283-32244 | CLIP | 1001-@ | |
| 24 | 416-881-1140 | PLATE | 1001-@ | |
| 25 | 04434-52512 | CLIP | 1001-@ | |
| 26 | 565-04-11420 | TUBE,SPIRAL | 1001-1999 |
