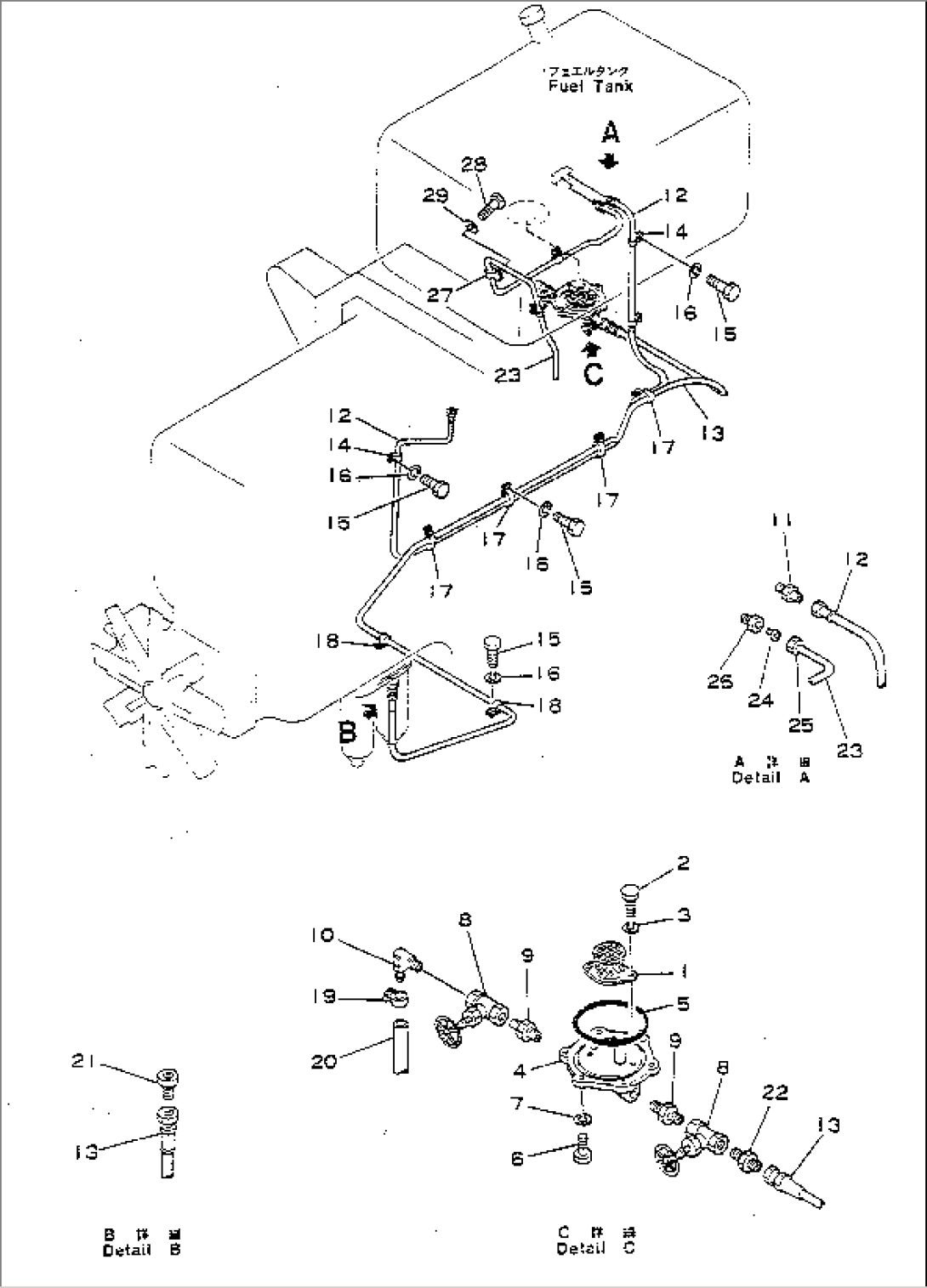

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 131-04-43130 | STRAINER | 1002- | |
| 2 | 01010-50812 | BOLT | 1002- | |
| 3 | 01602-20825 | WASHER | 1002- | |
| 4 | 125-04-13110 | FLANGE | 1002- | |
| 5 | 07000-02135 | O-RING | 1002- | |
| 6 | 01010-51020 | BOLT | 1002- | |
| 7 | 01602-21030 | WASHER | 1002- | |
| 8 | 07700-60504 | VALVE | .- | |
| 8 | 07700-20504 | VALVE | 1002-. | |
| 9 | 145-04-14110 | NIPPLE | 1013- | |
| 10 | 131-04-54130 | ELBOW | 1002- | |
| 11 | 566-04-11280 | NIPPLE | 1002- | |
| 12 | 02750-03365 | HOSE | .- | |
| 12 | 02750-33365 | HOSE | 1109-. | |
| 12 | 02750-33345 | HOSE | 1106-1108 | |
| 12 | 02750-23345 | HOSE | 1058-1105 | |
| 12 | 02750-33345 | HOSE | 1055-1057 | |
| 12 | 02750-03380 | HOSE | 1002-1054 | |
| 13 | 07102-30545 | HOSE | 1106- | |
| 13 | 07102-20545 | HOSE | 1058-1105 | |
| 13 | 07102-30545 | HOSE | 1055-1057 | |
| 13 | 07102-20545 | HOSE | 1013-1054 | |
| 14 | 08036-01814 | CLIP | 1035- | |
| 15 | 01010-51016 | BOLT | 1002- | |
| 16 | 01602-21030 | WASHER | 1002- | |
| 17 | 566-07-11780 | CLIP | 1002- | |
| 18 | 08036-02514 | CLIP | 1002- | |
| 19 | 154-04-12460 | CLAMP | 1013- | |
| 20 | 07270-01210 | TUBE | 1013- | |
| 21 | 562-04-12110 | ADAPTER | 1055- | |
| 21 | 6721-71-9780 | ADAPTER | 1013-1054 | |
| 22 | 285-04-11210 | NIPPLE | 1013- | |
| 23 | 07822-00818 | TUBE | 1055- | |
| 24 | 07831-00813 | SLEEVE | 1055- | |
| 25 | 07832-00817 | NUT | 1055- | |
| 26 | 07836-00817 | CONNECTOR | 1055- | |
| 27 | 08036-11214 | CLIP | 1055- | |
| 28 | 01010-51016 | BOLT | 1055- | |
| 29 | 01602-21030 | WASHER | 1055- |
