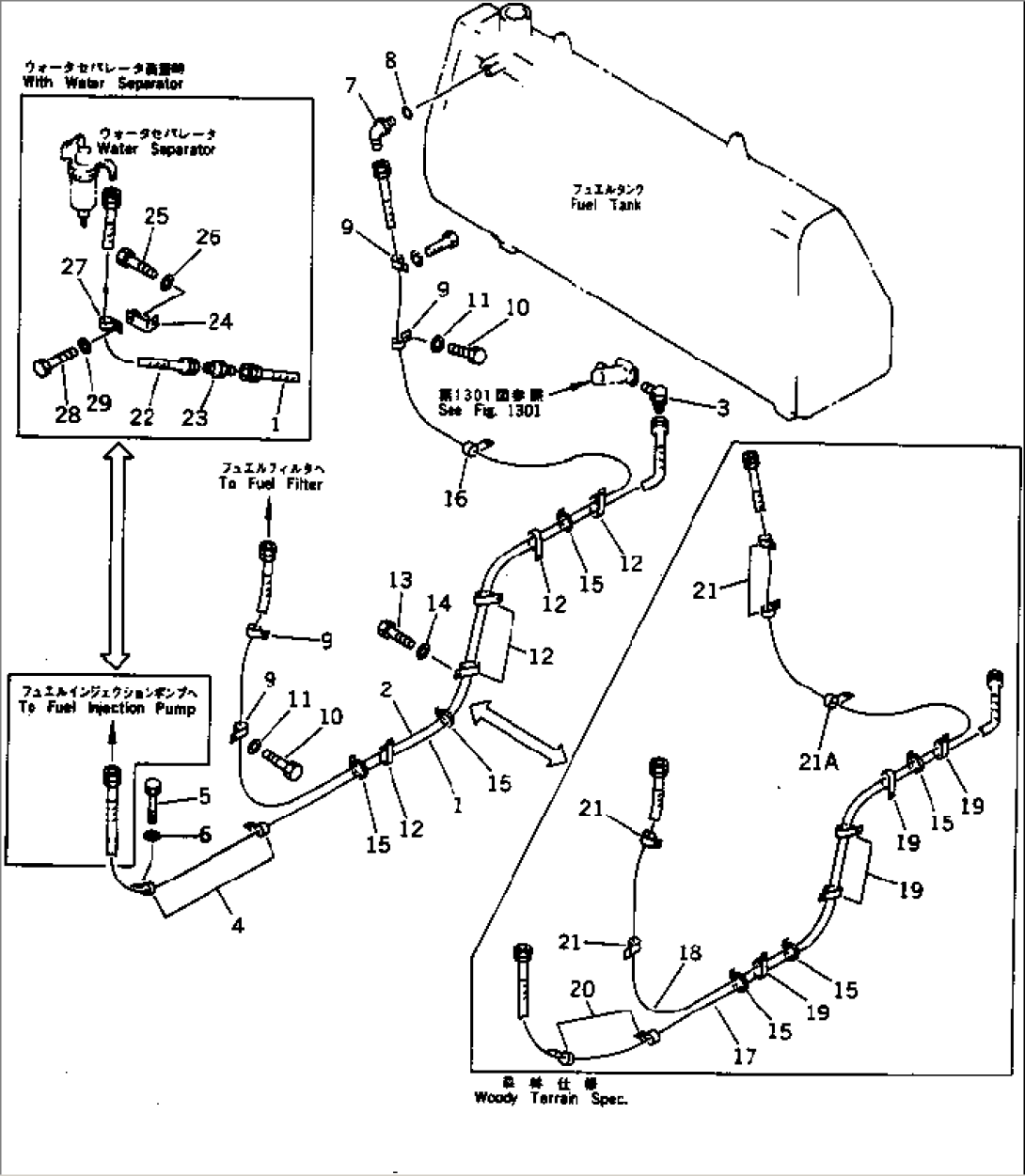

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20429 | HOSE | 3001- | |
| 2 | 07102-20344 | HOSE | 3001- | |
| 3 | 6715-71-8290 | ELBOW | 3643- | |
| 3 | 483-60-31530 | ELBOW | 3001-3642 | |
| 4 | 140-06-18440 | CLIP | 3001- | |
| 5 | 01010-51225 | BOLT | 3001- | |
| 6 | 01643-31232 | WASHER | 3001- | |
| 7 | 07235-10315 | ELBOW | 3001- | |
| 8 | 07002-02034 | O-RING | 3001- | |
| 9 | 08036-01814 | CLIP | 3001- | |
| 10 | 01010-51225 | BOLT | 3001- | |
| 11 | 01643-31232 | WASHER | 3001- | |
| 12 | 141-06-11220 | CLIP | 3001- | |
| 13 | 01010-51225 | BOLT | 3001- | |
| 14 | 01643-31232 | WASHER | 3001- | |
| 15 | 08034-00519 | BAND | 3001- | |
| 16 | 21T-68-11320 | CLIP | 3001- | |
| G-1 | (\8\154-04-X3000) | ASBESTOS HOSE GROUP | 3001- | |
| ==================== | ||||
| 17 | 07103-A0429 | HOSE | 3413- | |
| 17 | \0\07103-80429 | HOSE | 3001-3412 | |
| 18 | 07103-A0344 | HOSE | 3413- | |
| 18 | \0\07103-80344 | HOSE | 3001-3412 | |
| 19 | 154-06-13780 | CLAMP | 3001- | |
| 20 | 08036-03014 | CLIP | 3001- | |
| 21 | 08035-03014 | CLIP | 3001- | |
| 21A | 08035-03012 | CLIP | 3001- | |
| ==================== | ||||
| G-2 | (\8\154-04-X1000) | WATER SEPARATOR G. | 3001- | |
| ==================== | ||||
| 22 | 07102-20410 | HOSE | 3001- | |
| 23 | 19M-03-11750 | NIPPLE | 3001- | |
| 24 | 154-06-41290 | BRACKET | 3001- | |
| 25 | 01010-51235 | BOLT | 3001- | |
| 26 | 01643-31232 | WASHER | 3001- | |
| 27 | 140-06-18440 | CLIP | 3001- | |
| 28 | 01010-51220 | BOLT | 3001- | |
| 29 | 01643-31232 | WASHER | 3001- | |
| ==================== |
