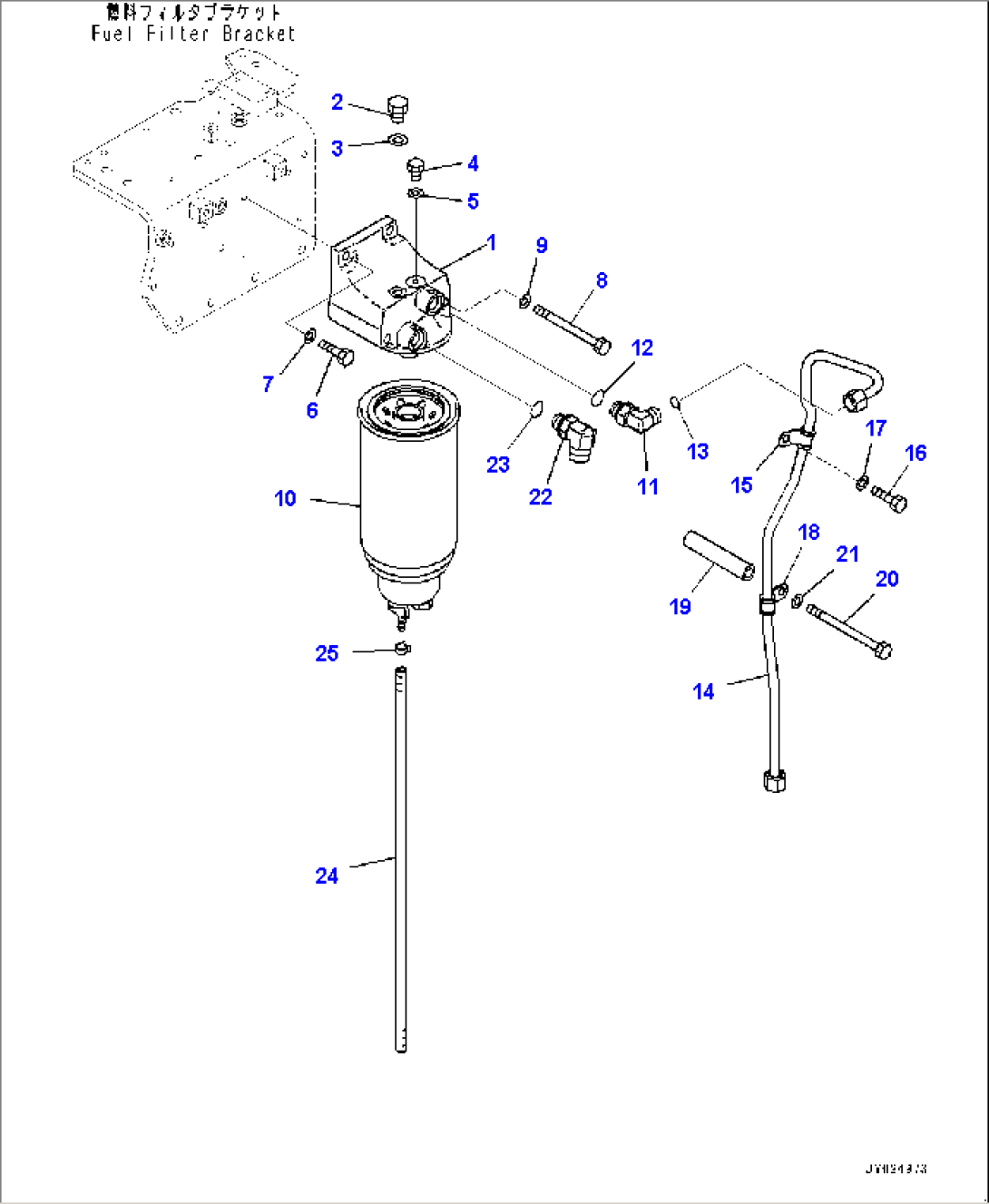

| Item | Part No. | Part Name | Qty | Serial No. |
| 6251-71-7100 | Head Assembly | 830001- | ||
| 1 | 6251-71-7110 | Head | 830001- | |
| 2 | 07040-11209 | Plug | 830001- | |
| 3 | 07005-01212 | Seal, Washer | 830001- | |
| 4 | 6110-73-6231 | Plug | 830001- | |
| 5 | 07005-00812 | Seal, Washer | 830001- | |
| 6 | 01010-81035 | Bolt | 830001- | |
| 7 | 01643-31032 | Washer | 830001- | |
| 8 | 01011-81015 | Bolt | 830001- | |
| 9 | 01643-31032 | Washer | 830001- | |
| 10 | 600-319-4800 | Cartridge Assembly | 830001- | |
| 11 | 02782-10422 | Elbow | 830001- | |
| 12 | 07002-22034 | O-ring | 830001- | |
| 13 | 02896-21012 | O-ring | 830001- | |
| 14 | 6262-71-6210 | Tube | 830001- | |
| 15 | 600-052-4120 | Clip | 830001- | |
| 16 | 01010-81020 | Bolt | 830001- | |
| 17 | 01643-31032 | Washer | 830001- | |
| 18 | 600-052-4120 | Clip | 830001- | |
| 19 | 6206-81-9870 | Spacer | 830001- | |
| 20 | 01011-81030 | Bolt | 830001- | |
| 21 | 01643-31032 | Washer | 830001- | |
| 22 | 02782-10516 | Elbow | 830001- | |
| 23 | 07002-22034 | O-ring | 830001- | |
| 24 | 07286-00860 | Hose | 830001- | |
| 25 | 07285-00125 | Clip | 830001- |
