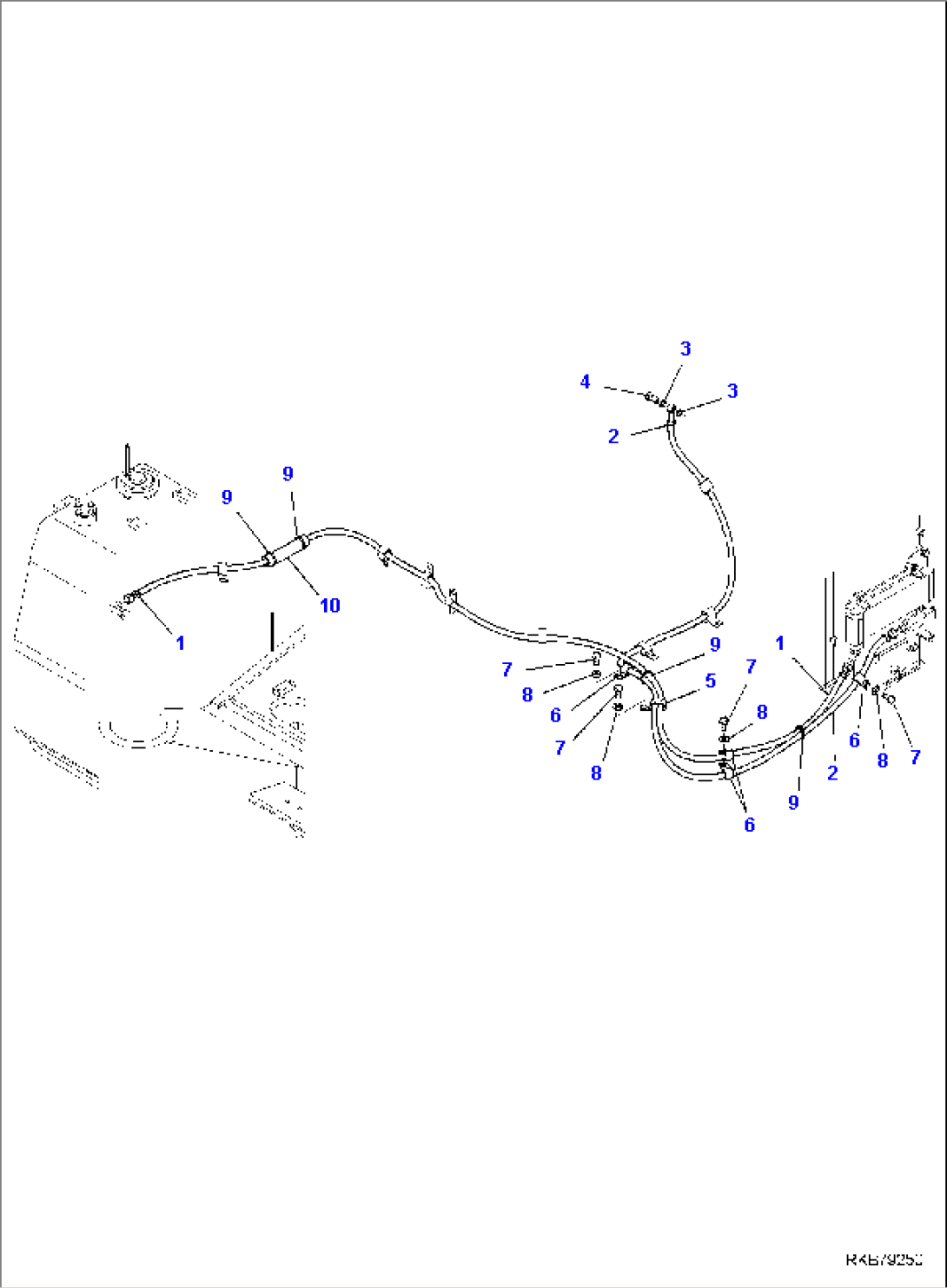

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 227-04-12150 | HOSE | F00003- | |
| 2 | 227-04-12120 | HOSE | F00003- | |
| 3 | 07005-01412 | SEAL, WASHER | F00003- | |
| 4 | 07206-31014 | JOINT | F00003- | |
| 5 | 04435-51912 | CLAMP | F00003- | |
| 6 | 04434-51912 | CLAMP | F00003- | |
| 7 | 01010-81225 | BOLT | F00003- | |
| 8 | 01643-31232 | WASHER | F00003- | |
| 9 | 08034-20519 | CLAMP | F00003- | |
| 10 | 203-62-52210 | RUBBER | F00003- |
