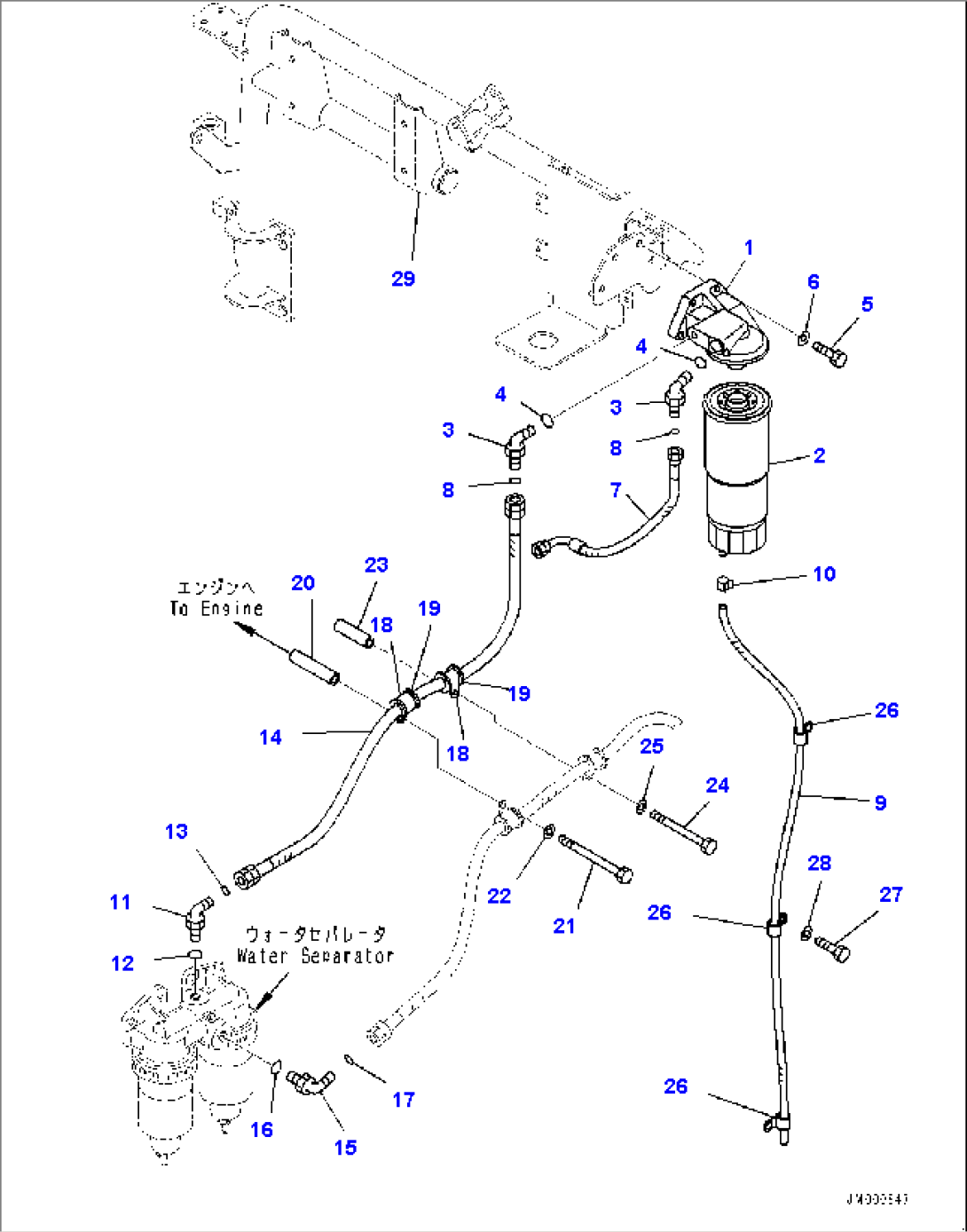

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6261-71-6430 | Head | 7030- | |
| 2 | 600-311-4500 | Cartridge Assembly | 7030- | |
| 2 | 600-311-4510 | Cartridge, (1-1/4) | 7030- | |
| 2 | 600-311-3220 | Cap | 7030- | |
| 2 | 600-311-3230 | Seal | 7030- | |
| 3 | 02782-10516 | Elbow | 7030- | |
| 4 | 07002-12034 | O-ring | 7030- | |
| 5 | 01010-81040 | Bolt | 7030- | |
| 6 | 01643-31032 | Washer | 7030- | |
| 7 | 02763-00505 | Hose, Face Seal Type | 7034- | |
| 8 | 02896-11015 | O-ring | 7030- | |
| 9 | 07287-00813 | Hose | 7030- | |
| 10 | 07285-00125 | Clip | 7030- | |
| 11 | 02782-10522 | Elbow | 7030- | |
| 12 | 07002-12434 | O-ring | 7030- | |
| 13 | 02896-11015 | O-ring | 7030- | |
| 14 | 02762-00511 | Hose, Face Seal Type | 7034- | |
| 15 | 02782-10522 | Elbow | 7030- | |
| 16 | 07002-12434 | O-ring | 7030- | |
| 17 | 02896-11015 | O-ring | 7030- | |
| 18 | 04434-53212 | Clip | 7034- | |
| 19 | 07095-20523 | Cushion | 7034- | |
| 20 | 6152-72-6290 | Spacer | 7030- | |
| 21 | 01011-81065 | Bolt | 7030- | |
| 22 | 01643-31032 | Washer | 7030- | |
| 23 | 569-06-82860 | Spacer | 7034- | |
| 24 | 01011-81080 | Bolt | 7034- | |
| 25 | 01643-31032 | Washer | 7030- | |
| 26 | 04434-51710 | Clip | 7030- | |
| 27 | 01010-81016 | Bolt | 7030- | |
| 28 | 01643-31032 | Washer | 7030- | |
| 29 | (56B-54-21482) | Bracket | - | |
| (56B-54-21482) | Bracket | - | ||
| (56B-54-21483) | Bracket | - | ||
| (56B-54-21483) | Bracket | - |
