| Item | Part No. | Part Name | Qty | Serial No. |
| 6218-71-1110 | FUEL PUMP ASS'Y | 110134-110811 | ||

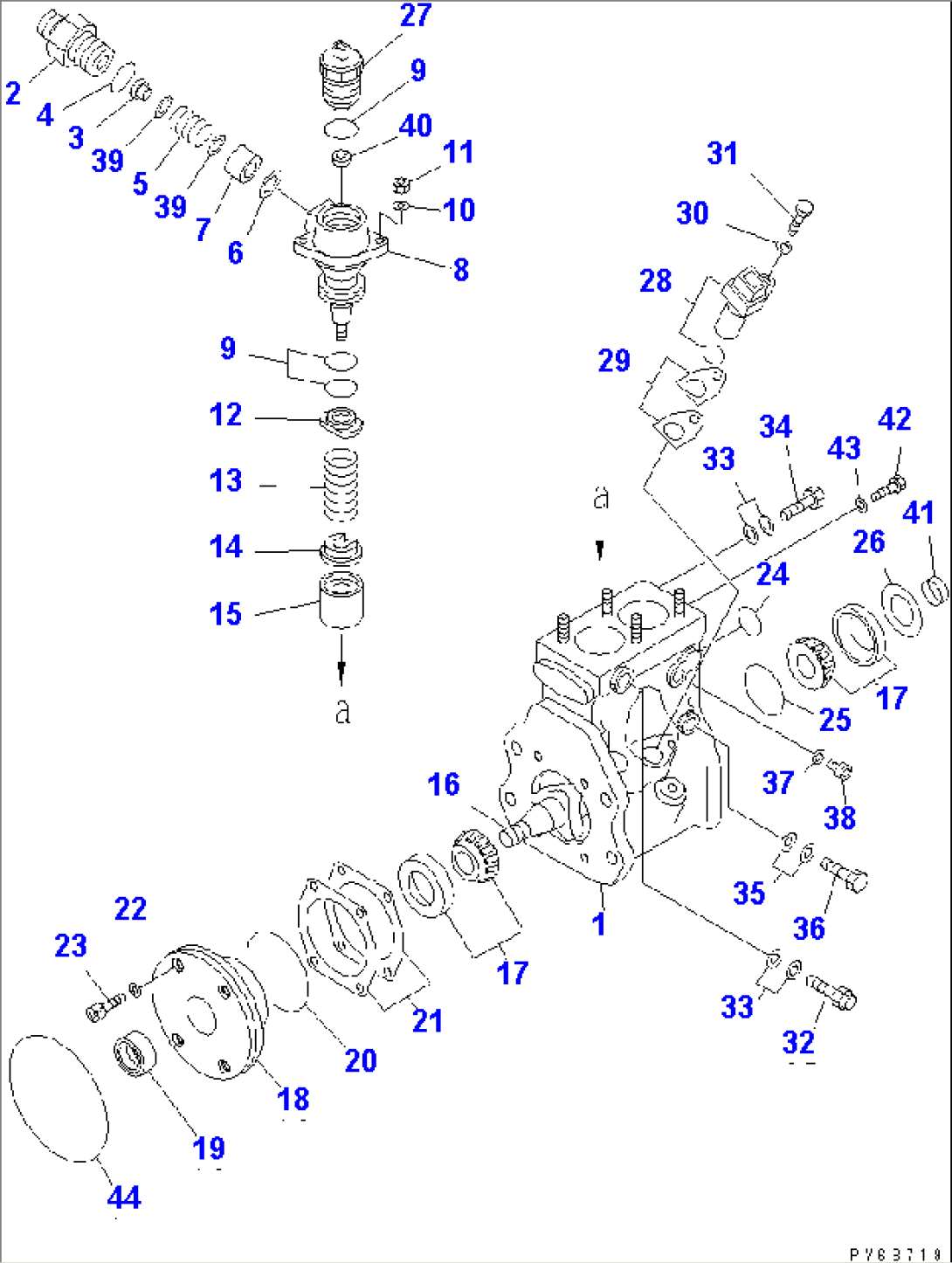

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-C4L4Z AND A4010-D4L4 Z. | ||||
| (\7\ND094100-0280) | BODY ASS'Y | 110134-110811 | ||
| 1 | (\7\ND094110-0230) | HOUSING ASS'Y | 110134-110811 | |
| 2 | (\7\ND094131-0020) | HOLDER,DELIVERY VALVE | 110134-110811 | |
| 3 | (\7\ND094133-0020) | STOPPER,DELIVERY VALVE | 110134-110811 | |
| 4 | (\7\ND094086-0090) | O-RING | 110134-110811 | |
| 5 | (\7\ND090136-1251) | SPRING,DELIVERY VALVE | 110134-110811 | |
| 6 | (\7\ND094137-0010) | GASKET | 110134-110811 | |
| 7 | (\7\ND094140-0020) | VALVE ASS'Y | 110134-110811 | |
| 8 | (\7\ND094150-0132) | ELEMENT ASS'Y | 110134-110811 | |
| 9 | (\7\ND094086-0100) | O-RING | 110134-110811 | |
| 10 | (\7\ND949013-5880) | WASHER | 110134-110811 | |
| 11 | (\7\ND92156-08081) | NUT | 110134-110811 | |
| 12 | (\7\ND094162-0031) | SEAT,SPRING, UPPER | 110134-110811 | |
| 13 | (\7\ND094164-0030) | SPRING,PLUNGER | 110134-110811 | |
| 14 | (\7\ND094165-0031) | SEAT,SPRING, LOWER | 110134-110811 | |
| 15 | (\7\ND094170-0080) | TAPPET ASS'Y | 110134-110811 | |
| 16 | (\7\ND094191-0210) | CAMSHAFT | 110134-110811 | |
| 17 | (\7\ND949101-0220) | BEARING,ROLLER | 110134-110811 | |
| 18 | (\7\ND094104-0160) | COVER,BEARING | 110134-110811 | |
| 19 | (\7\ND949150-3200) | SEAL,OIL | 110134-110811 | |
| 20 | (\7\ND094086-0150) | O-RING | 110134-110811 | |
| 21 | (\7\ND094095-0330) | SHIM, 0.05MM | 110134-110811 | |
| 21 | (\7\ND094095-0340) | SHIM, 0.10MM | 110134-110811 | |
| 21 | (\7\ND094095-0350) | SHIM, 0.20MM | 110134-110811 | |
| 21 | (\7\ND094095-0360) | SHIM, 0.30MM | 110134-110811 | |
| 21 | (\7\ND094095-0370) | SHIM, 0.50MM | 110134-110811 | |
| 22 | (\7\ND094092-0010) | WASHER | 110134-110811 | |
| 23 | (\7\ND949044-3320) | BOLT | 110134-110811 | |
| 24 | (\7\ND094086-0160) | O-RING | 110134-110811 | |
| 25 | (\7\ND094086-0170) | O-RING | 110134-110811 | |
| 26 | (\7\ND094093-0090) | SHIM, 0.40MM | 110134-110811 | |
| 26 | (\7\ND094093-0100) | SHIM, 0.60MM | 110134-110811 | |
| 26 | (\7\ND094093-0110) | SHIM, 0.80MM | 110134-110811 | |
| 26 | (\7\ND094093-0120) | SHIM, 1.00MM | 110134-110811 | |
| 26 | (\7\ND094096-0060) | SHIM, 0.20MM | 110134-110811 | |
| 27 | (\7\ND095300-0040) | VALVE ASS'Y,CONTROL | 110134-110811 | |
| 28 | (\7\ND029600-0580) | SENSOR ASS'Y | 110134-110811 | |
| 28 | (\7\ND949140-6310) | O-RING | 110134-110811 | |
| 29 | (\7\ND094096-0050) | SHIM, 0.15MM | 110134-110811 | |
| 29 | (\7\ND094096-0070) | SHIM, 0.25MM | 110134-110811 | |
| 29 | (\7\ND094096-0080) | SHIM, 0.40MM | 110134-110811 | |
| 30 | (\7\ND90200-06081) | WASHER | 110134-110811 | |
| 31 | (\7\ND90107-06161) | BOLT | 110134-110811 | |
| 32 | ND090310-0500 | VALVE ASS'Y,OVERFLOW | 110134-110811 | |
| 33 | ND090222-0070 | WASHER | 110134-110811 | |
| 34 | ND949180-0310 | SCREW | 110134-110811 | |
| 35 | ND090222-0120 | WASHER | 110134-110811 | |
| 36 | ND949180-0060 | SCREW | 110134-110811 | |
| 37 | ND949018-0350 | WASHER | 110134-110811 | |
| 38 | ND090317-0140 | PLUG,SCREW | 110134-110811 | |
| 39 | (\7\ND90218-06120) | WASHER, 0.30MM | 110134-110811 | |
| 39 | (\7\ND90218-06130) | WASHER, 0.10MM | 110134-110811 | |
| 39 | (\7\ND90218-06140) | WASHER, 0.50MM | 110134-110811 | |
| 40 | (\7\ND095331-0020) | STOPPER | 110134-110811 | |
| 41 | (\7\ND090207-0100) | RING | 110134-110811 | |
| 42 | ND090244-0010 | SCREW | 110134-110811 | |
| 43 | ND949010-3020 | WASHER | 110134-110811 | |
| 44 | ND094086-0210 | O-RING | 110134-110811 |
