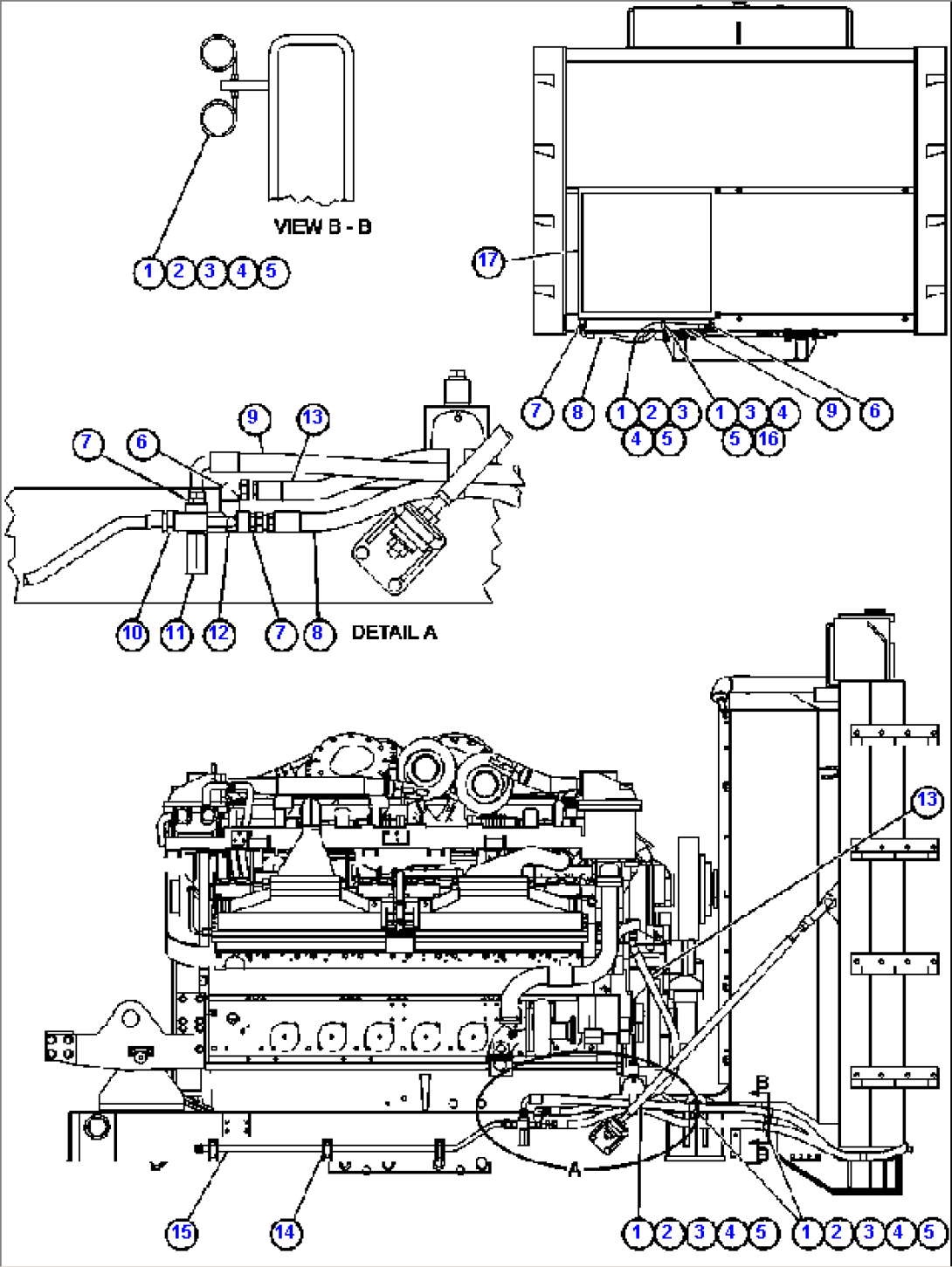

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TC6058 | CLAMP | ||
| 2 | C1606 | CAPSCREW - 3/8" - 16NC X 2" | ||
| 3 | C1547 | FLAT WASHER - 3/8" | ||
| 4 | C0312 | LOCKWASHER - 3/8" | ||
| 5 | C1521 | NUT - 3/8" | ||
| 6 | TG1655 | FITTING - 90 DEG | ||
| 7 | TD8121 | ADAPTOR | ||
| 8 | HA4691 | HOSE | ||
| 9 | HA7510 | HOSE | ||
| 10 | VL3217 | FITTING | ||
| 11 | EG6861 | PLATE, MOUNTING | ||
| 12 | PC0315 | VALVE, DIVERTER | ||
| 13 | HA0587 | HOSE | ||
| 14 | WA4710 | CLAMP, HYDRA ZORB | ||
| 15 | HA6218 | HOSE | ||
| 16 | VH9969 | STUD, WELD - 3/8" - 16NC | ||
| 17 | BF5008 | HEAT EXCHANGER, FUEL | ||
| 17 | BF5010 | FRAME, FUEL COOLER | ||
| 17 | VE3999 | GROMMET, RUBBER | ||
| 17 | BF0820 | GROMMET, RUBBER | ||
| 17 | BF4982 | TUBE | ||
| 17 | BF4983 | BAR, SUPPORT | ||
| 17 | BF4984 | BAR, SUPPORT | ||
| 17 | VE5442 | FLAT WASHER | ||
| 17 | C5747 | CAPSCREW - 5/16" - 18NC X 3/4" |
