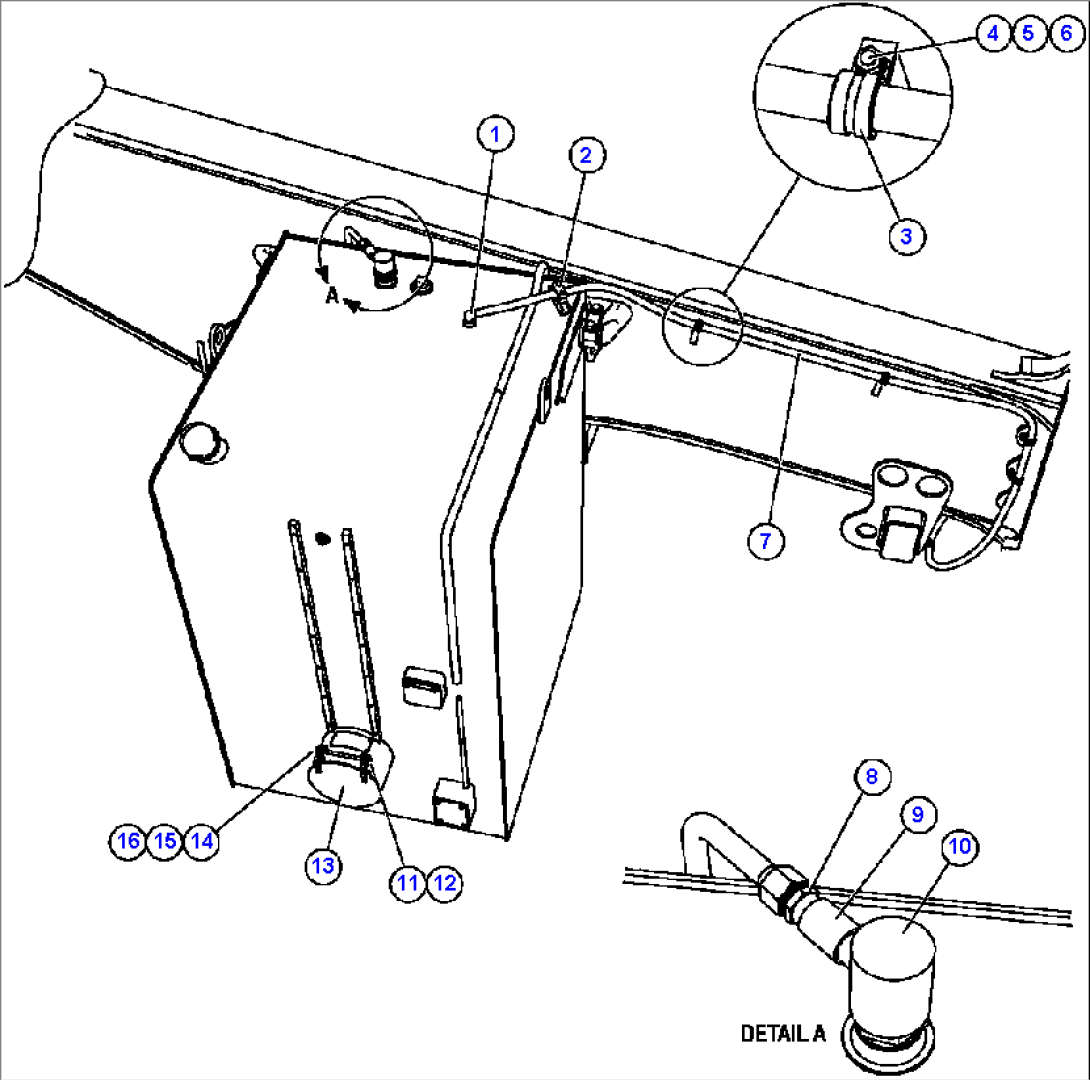

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WB0270 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 2 | WA4708 | CLAMP, HYDRA ZORB - 1" | ||
| 3 | WB3096 | CLAMP, CUSHION - 1 1/4" | ||
| 4 | MM0461 | FLAT WASHER - M10 | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | HA6378 | HOSE | ||
| 8 | WB0474 | FITTING, STRAIGHT | ||
| 9 | DC0859 | COUPLING, PIPE | ||
| 10 | PB9887 | VENT ASSEMBLY | ||
| 11 | EM8889 | SHOULDER BOLT - 3/8" - 16NC X 9" | ||
| 12 | VC7836 | FLAT WASHER - 1/2" | ||
| 13 | EM8890 | DOOR, FUEL | ||
| 14 | C1547 | FLAT WASHER - 3/8" | ||
| 15 | TC1231 | LOCKWASHER - 3/8" | ||
| 16 | TC1233 | NUT - 3/8" - 16NC |
