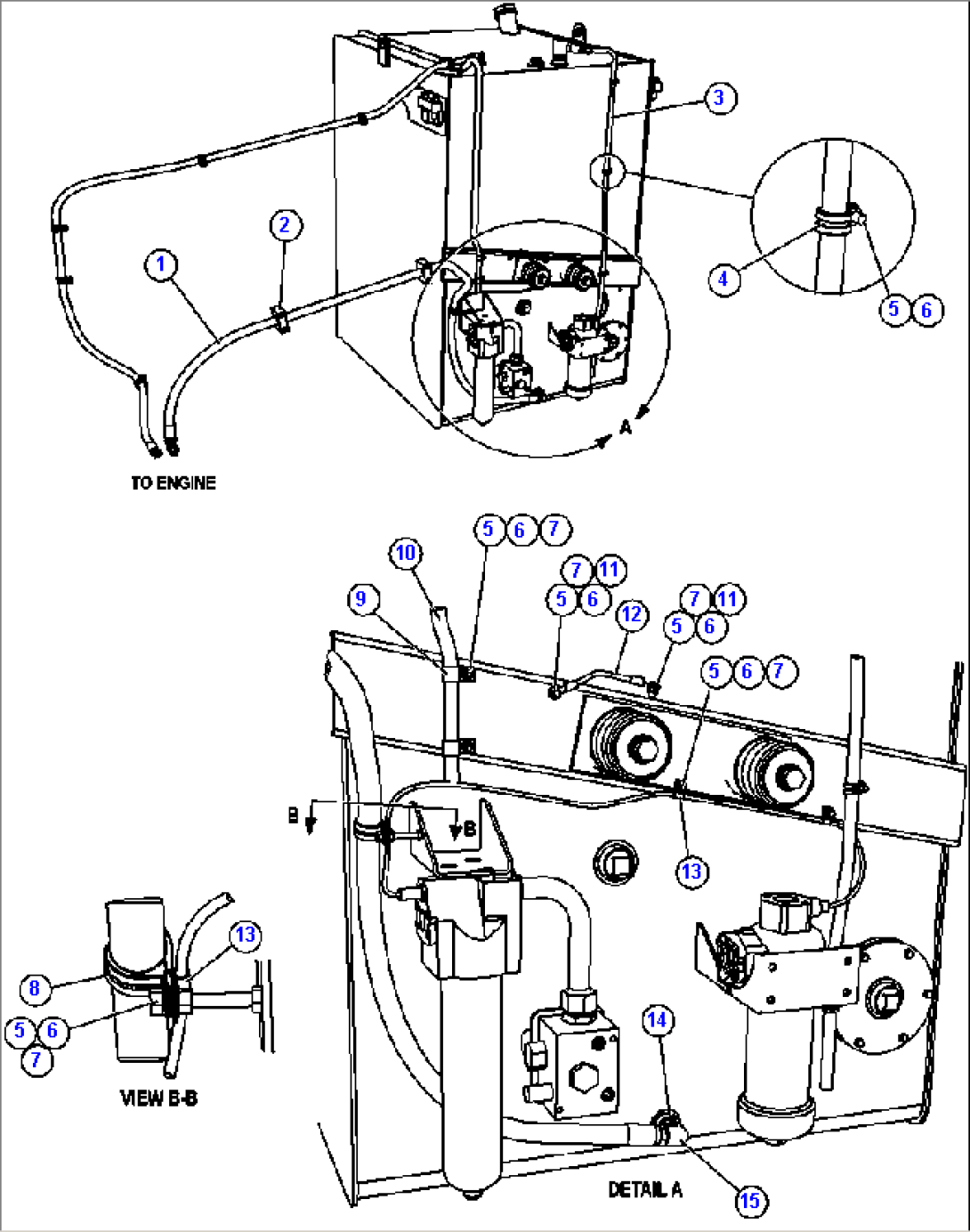

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA5158 | HOSE | ||
| 2 | WA4710 | CLAMP, HYDRA ZORB - 1 1/2" | ||
| 3 | EM6687 | TUBE | ||
| 4 | WB3093 | CLAMP, CUSHION - 1" | ||
| 5 | MM0461 | FLAT WASHER - M10 | ||
| 6 | MM0178 | NUT - M10 X 1.50 | ||
| 7 | MM0471 | LOCKWASHER - M10 | ||
| 8 | WB1305 | CLAMP, CUSHION - 1 1/2" | ||
| 9 | VN9913 | CLAMP, VINYL - 1 1/16" | ||
| 10 | EH0744 | HARNESS, FUEL TANK | ||
| 11 | TG0545 | FLAT WASHER - 3/8" | ||
| 12 | VL4462 | WIRE, GROUND | ||
| 13 | 424243 | CLAMP, VINYL - 3/8" | ||
| 14 | TH4849 | BUSHING | ||
| 15 | WB0274 | FITTING, 37 DEG FLARE, 90 DEG ELBOW |
