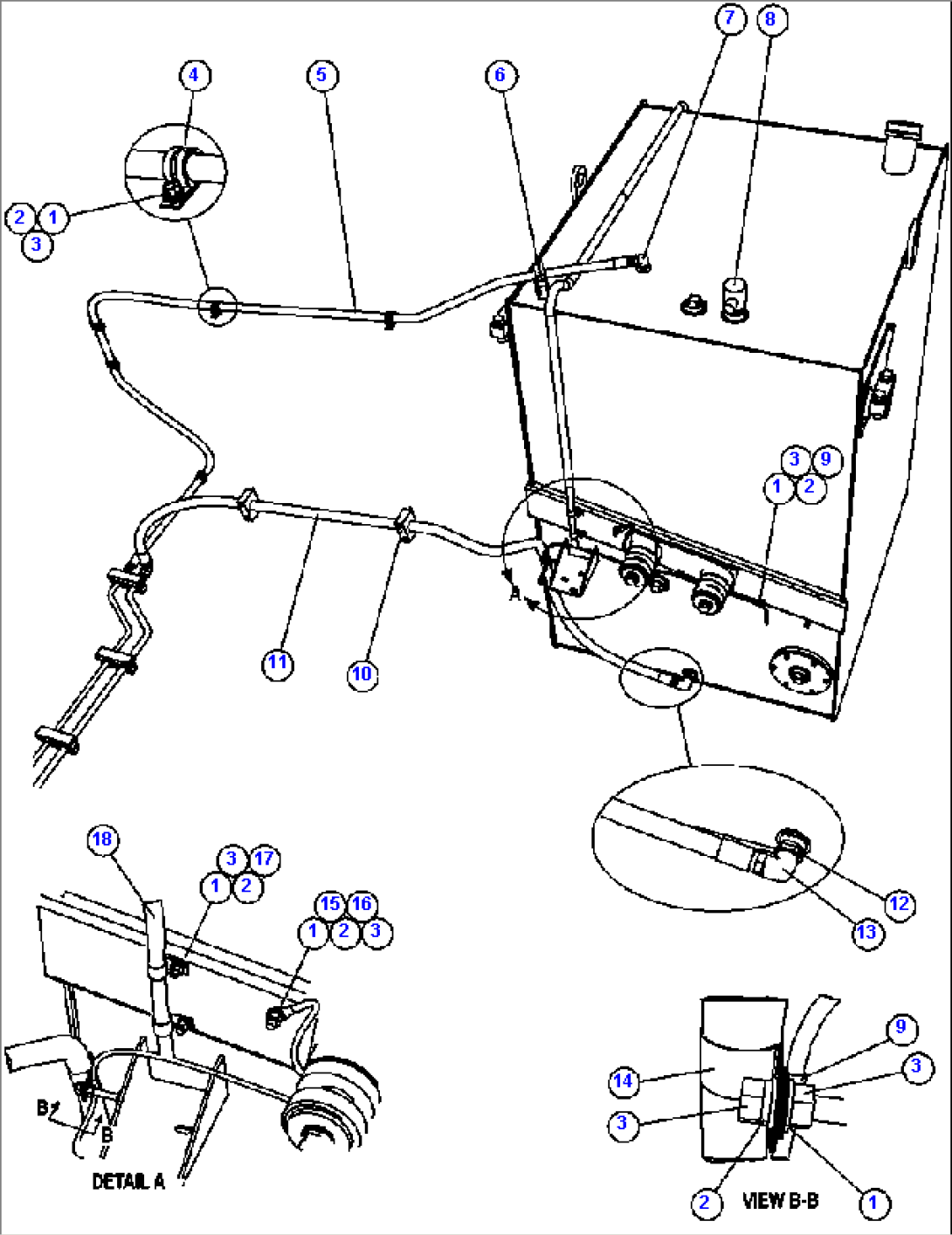

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0461 | FLAT WASHER - M10 | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0178 | NUT - M10 X 1.50 | ||
| 4 | WB3096 | CLAMP, CUSHION - 1 1/4" | ||
| 5 | HA6378 | HOSE | ||
| 6 | WA4708 | CLAMP ASSEMBLY | ||
| 7 | WB0270 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 8 | TA1978 | VENT ASSEMBLY | ||
| 9 | 424243 | CLAMP, VINYL - 3/8" | ||
| 10 | WA4710 | CLAMP ASSEMBLY - 1 1/2" | ||
| 11 | HA5158 | HOSE | ||
| 12 | TH4849 | BUSHING | ||
| 13 | WB0274 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 14 | TC6058 | CLAMP, VINYL - 1 1/2" | ||
| 15 | TG0545 | FLAT WASHER - 3/8" (COPPER) | ||
| 16 | VL4462 | WIRE, GROUND | ||
| 17 | VN9913 | CLAMP, VINYL - 1 1/16" | ||
| 18 | EH0744 | HARNESS, FUEL TANK |
