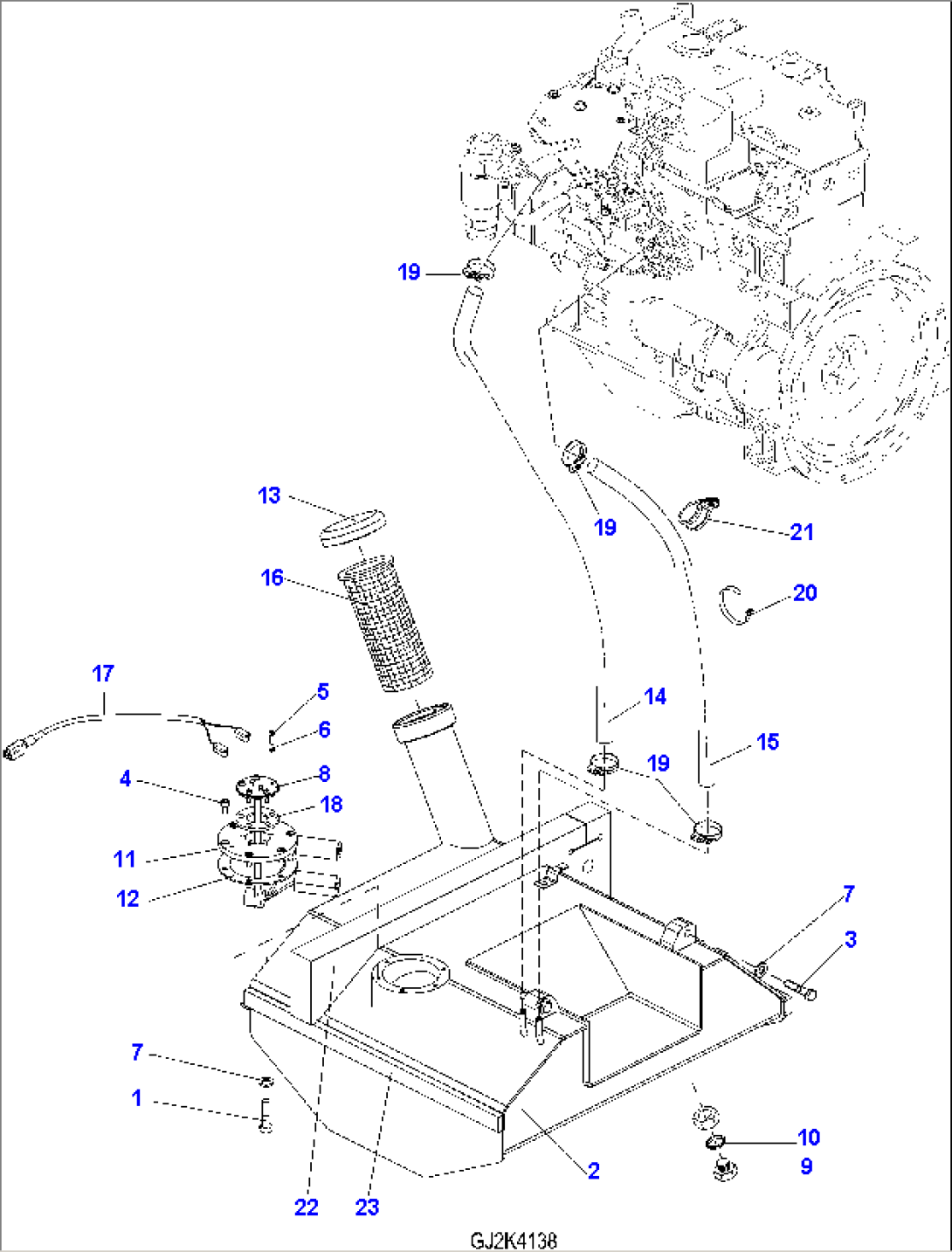

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01016-51250 | SCREW | ||
| 2 | 42T-04-21131 | FUEL TANK | ||
| 3 | 01016-51250 | SCREW | ||
| 4 | 01252-60816 | SCREW | ||
| 5 | 01252-70512 | SCREW | ||
| 6 | 01641-20508 | PLAIN WASHER | ||
| 7 | 01643-31232 | PLAIN WASHER | ||
| 8 | 20T-06-31110 | SENDER | ||
| 9 | 423-00-H0740 | PLUG | ||
| 10 | 423-00-H0760 | SEAL | ||
| 11 | 42T-04-22A10 | COVER | ||
| 12 | 42T-04-22A20 | GASKET | ||
| 13 | 418-04-H1110 | TANK CAP | ||
| 14 | 07260-20963 | HOSE ASSEMBLY | ||
| 15 | 07260-20956 | HOSE | ||
| 16 | 42T-04-22A50 | STRAINER | ||
| 17 | 363-06-32190 | CABLE | ||
| 18 | 42T-04-22290 | GASKET | ||
| 19 | 07281-00167 | CLIP | ||
| 20 | 08034-20519 | BAND | ||
| 21 | 04434-51610 | CLIP | ||
| 22 | 42T-04-22A31 | GASKET | ||
| 23 | 42T-04-22A40 | GASKET |
