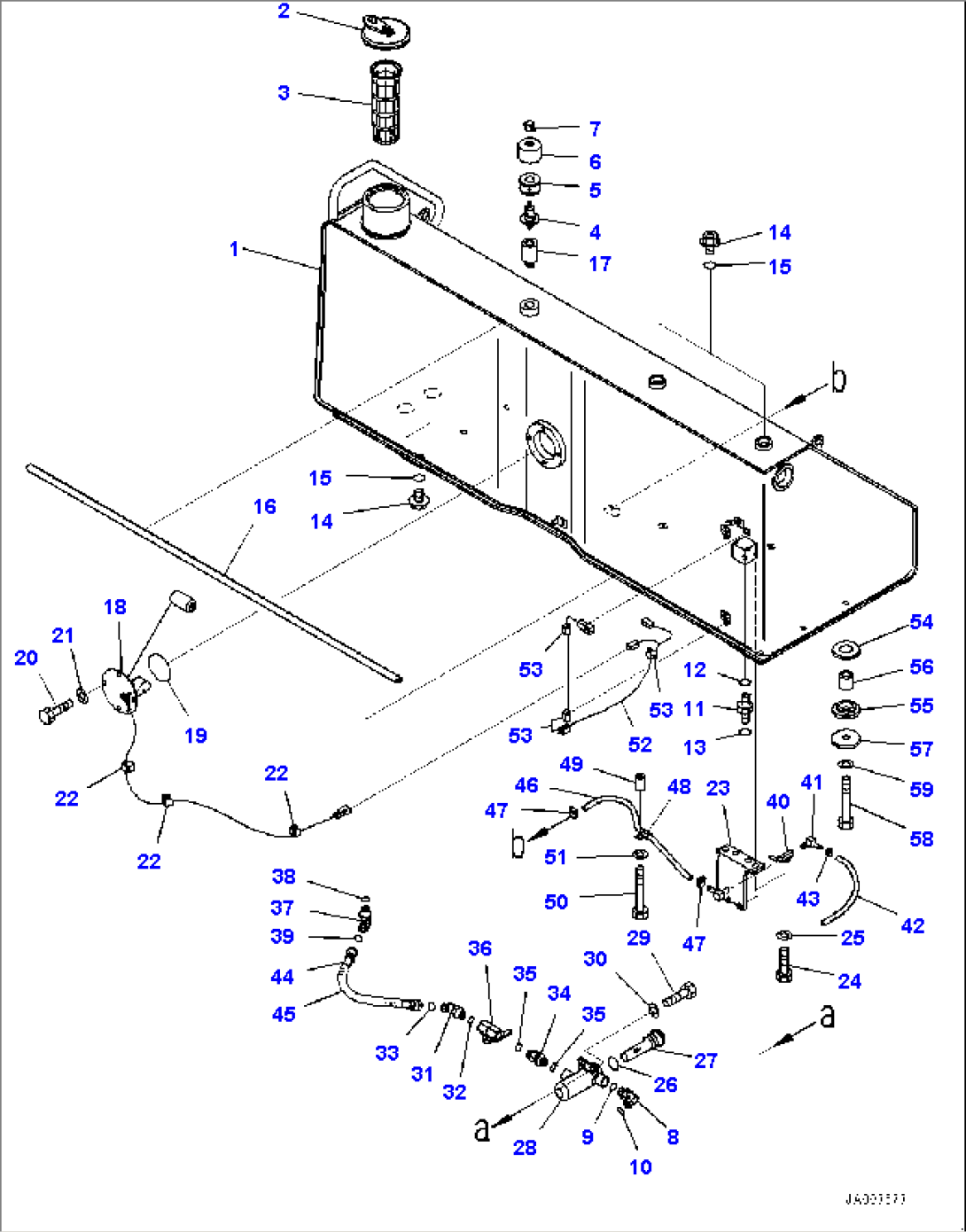

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-51112 | Tank Assembly, Fuel | 1155- | |
| 1 | 14X-04-51111 | Tank Assembly, Fuel | 1001-1154 | |
| 2 | 17A-04-41411 | Cap | 1001- | |
| 3 | 07056-18422 | Strainer | 1001- | |
| 4 | 22U-60-21520 | Breather | 1001- | |
| 5 | 421-60-35170 | Element | 1001- | |
| 6 | 421-60-35180 | Cover | 1001- | |
| 7 | 421-60-35190 | Nut | 1001- | |
| 8 | 02782-10422 | Elbow | 1001- | |
| 9 | 07002-12034 | O-ring | 1001- | |
| 10 | 02896-11012 | O-ring | 1001- | |
| 11 | 02781-00315 | Union | 1001- | |
| 12 | 07002-12034 | O-ring | 1001- | |
| 13 | 02896-11009 | O-ring | 1001- | |
| 14 | 07040-13016 | Plug | 1001- | |
| 15 | 07002-13034 | O-ring | 1001- | |
| 16 | 14X-04-51420 | Seal | 1001- | |
| 17 | 14X-04-51490 | Adapter | 1001- | |
| 18 | 14X-06-51490 | Sensor, Fuel Level | 1001- | |
| 19 | 07000-12085 | O-ring | 1001- | |
| 20 | 01010-81020 | Bolt | 1001- | |
| 21 | 01643-31032 | Washer | 1001- | |
| 22 | 08211-00720 | Clip | 1001- | |
| 23 | 14X-04-51131 | Bracket | 1001- | |
| 24 | 01010-81230 | Bolt | 1001- | |
| 25 | 01643-31232 | Washer | 1001- | |
| 25 | 17A-04-41190 | Filter Assembly | 1001- | |
| 26 | 07002-14234 | O-ring | 1001- | |
| 27 | 07058-00010 | Element Assembly | 1001- | |
| 28 | 14X-04-21660 | Case | 1001- | |
| 29 | 01010-80825 | Bolt | 1001- | |
| 30 | 01643-30823 | Washer | 1001- | |
| 31 | 02782-10422 | Elbow | 1001- | |
| 32 | 07002-12034 | O-ring | 1001- | |
| 33 | 02896-11012 | O-ring | 1001- | |
| 34 | 17A-04-41331 | Connector | 1001- | |
| 35 | 07002-12034 | O-ring | 1001- | |
| 36 | 14X-04-21620 | Valve | 1001- | |
| 37 | 02782-10422 | Elbow | 1001- | |
| 38 | 07002-12034 | O-ring | 1001- | |
| 39 | 02896-11012 | O-ring | 1001- | |
| 40 | 07700-40240 | Valve | 1001- | |
| 41 | 205-04-62130 | Elbow | 1001- | |
| 42 | 07270-01025 | Tube | 1001- | |
| 43 | 07285-00115 | Clip | 1001- | |
| 44 | 14X-04-51270 | Hose Assembly | 1001- | |
| 45 | 08017-31903 | Conduit | 1001- | |
| 46 | 07270-21050 | Tube | 1001- | |
| 47 | 07281-00167 | Clamp | 1001- | |
| 48 | 04434-51310 | Clip | 1001- | |
| 49 | 205-03-71330 | Collar | 1001- | |
| 50 | 01010-81055 | Bolt | 1001- | |
| 51 | 01643-31032 | Washer | 1001- | |
| 52 | 14X-06-51230 | Wiring Harness | 1001- | |
| 53 | 08211-00720 | Clip | 1001- | |
| 54 | 195-54-42550 | Cushion | 1001- | |
| 55 | 195-54-42550 | Cushion | 1001- | |
| 56 | 14X-04-51330 | Boss | 1001- | |
| 57 | 17A-04-11191 | Plate | 1001- | |
| 58 | 14X-04-51170 | Bolt | 1001- | |
| 59 | 01643-31645 | Washer | 1001- |
